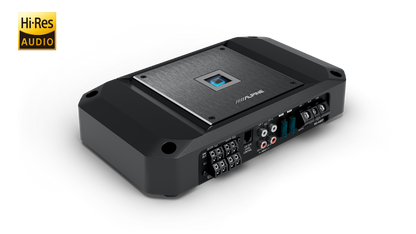

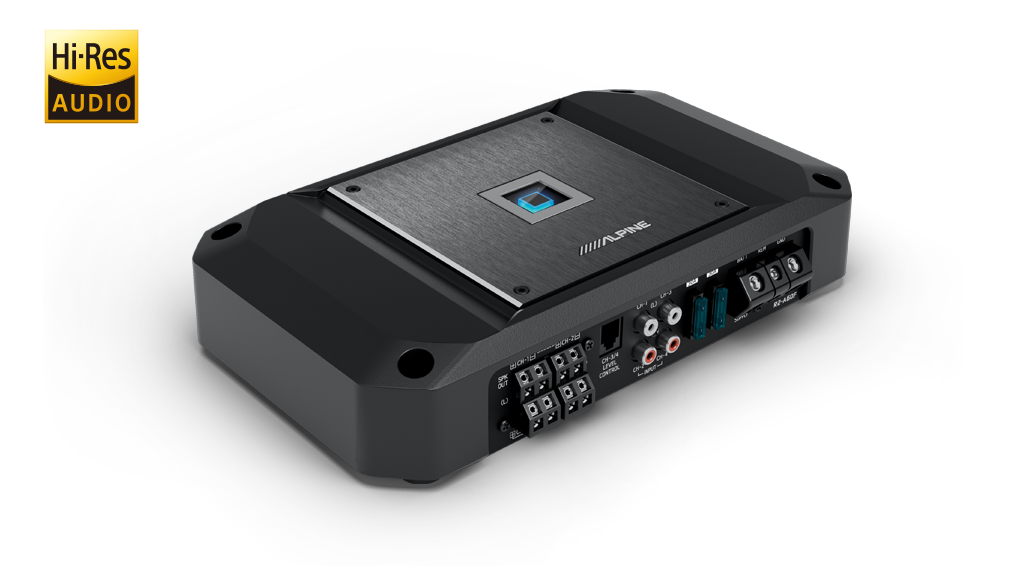

Alpine R2-A60F R-Series 4-Channel Amplifier
Enhance your car audio system with the Alpine R2-A60F, a high-performance 4-channel amplifier from the R-Series lineup. Engineered with Class D technology and Hi-Res Audio certification, this compact amplifier delivers 600W RMS total power for driving speakers with clarity and efficiency.
Key Features of the Alpine R2-A60F
- Class D Amplifier Circuit: Provides efficient power output with minimal heat.
- Hi-Res Audio Certified: Supports high-resolution audio for superior sound quality.
- Built-in Selectable/Adjustable Crossovers: Includes high-pass and low-pass filters (50-250 Hz).

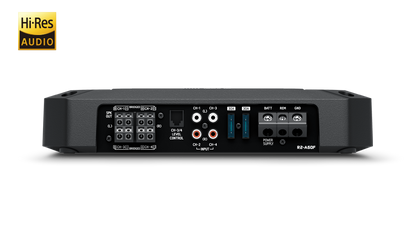

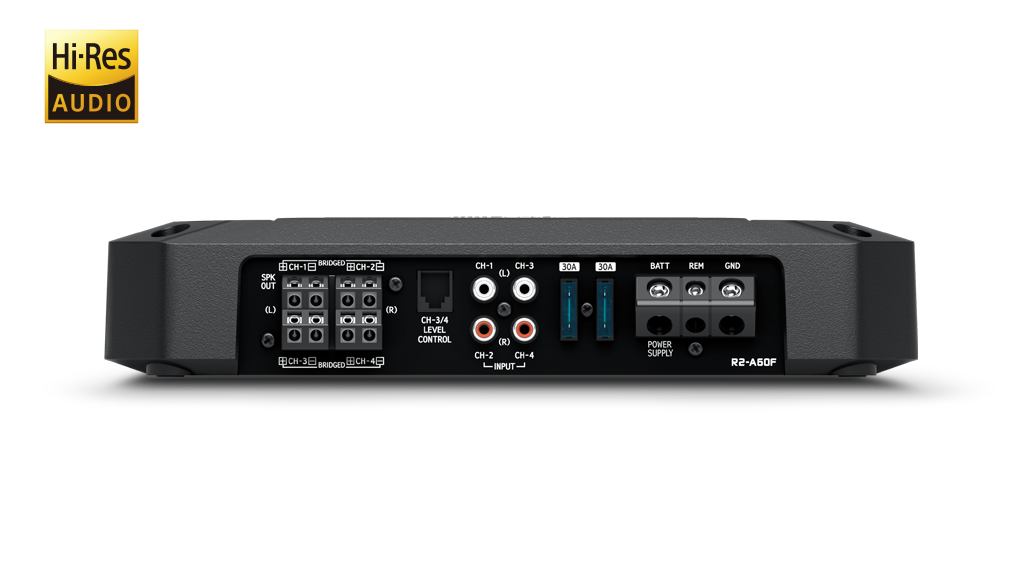

- Two-Sided Terminal Layout: Simplifies wiring for front and rear connections.
- CEA-2006 Compliant: Ensures accurate power ratings.
Specifications Table
| Specification | Details |
|---|---|
| Amplifier Type | 4-Channel Amplifier |
| Power Output (RMS) | 100W x 4 @ 4Ω, 150W x 4 @ 2Ω |
| Power Output (Peak) | 200W x 4 @ 4Ω, 300W x 4 @ 2Ω |
| Frequency Response | 10 Hz - 40 kHz (Hi-Res Certified) |
| Signal-to-Noise Ratio | 105 dB @ 4Ω |
| Total Harmonic Distortion (THD) | < 1% @ rated power |
| Input Sensitivity | 200mV - 4V (RCA), 600mV - 10V (High-Level) |
| Crossover Frequencies | High-Pass: 50-250 Hz (12 dB/Oct), Low-Pass: 50-250 Hz (12 dB/Oct) |
| Damping Factor | > 250 |
| Operating Voltage | 9V - 16V DC |
| Idle Current | 0.8A |
| Maximum Current Draw | 60A @ 2Ω |
| Dimensions (W x H x D) | 7.48" x 2.01" x 7.09" (190 x 51 x 180 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| Efficiency | Not specified |
