Alpine R2-S653 R-Series 6.5-Inch 3-Way Component Speakers

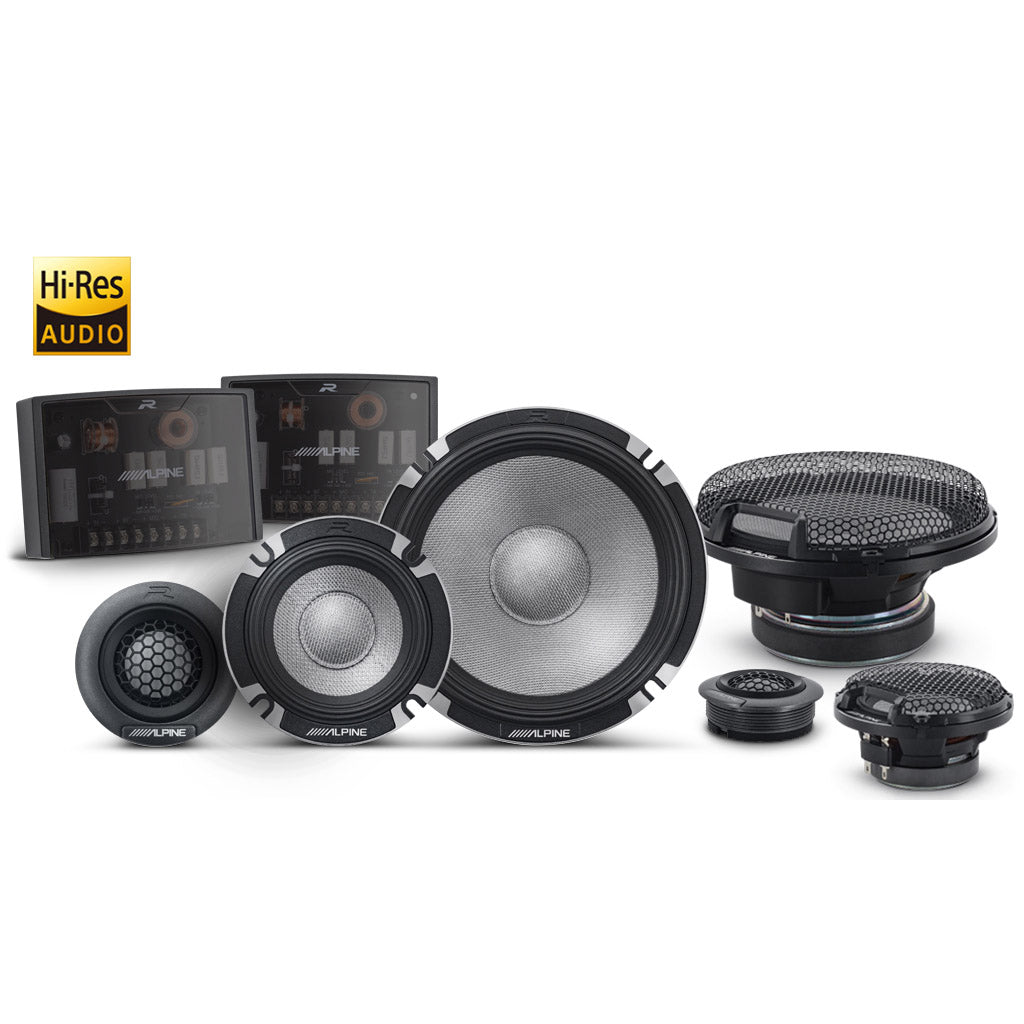

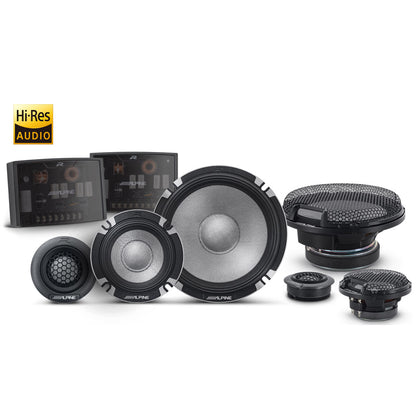

Elevate your car audio with the Alpine R2-S653, a 6.5-inch 3-way component speaker system from the R-Series lineup. Engineered for high-resolution sound, this set features a Kevlar-treated pulp cone woofer, a 1-inch soft dome midrange, and a 0.75-inch soft dome tweeter, delivering exceptional clarity across the full frequency range.
Key Features of the Alpine R2-S653
-
Hi-Res Audio Certified: Reproduces frequencies up to 40kHz for studio-quality sound.
-

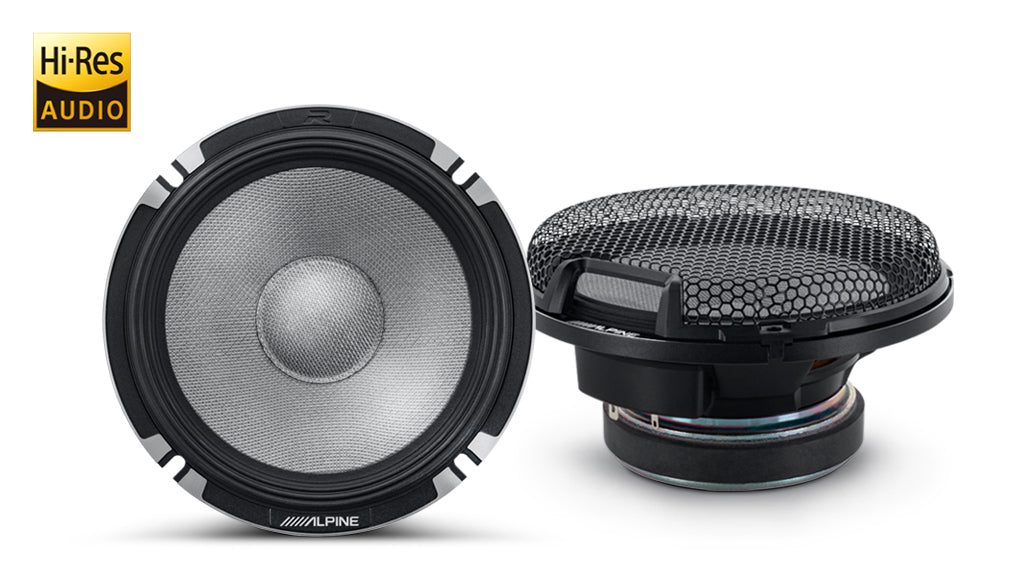

Kevlar-Treated Pulp Cone Woofer: Lightweight and rigid for low distortion.
-

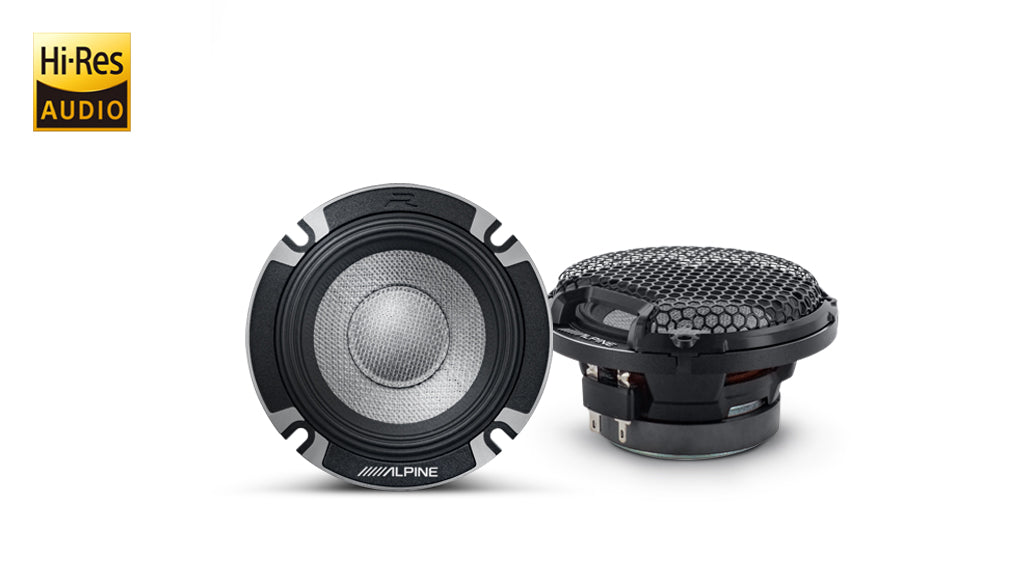

1-Inch Soft Dome Midrange: Provides smooth, detailed mid-frequency response.
-

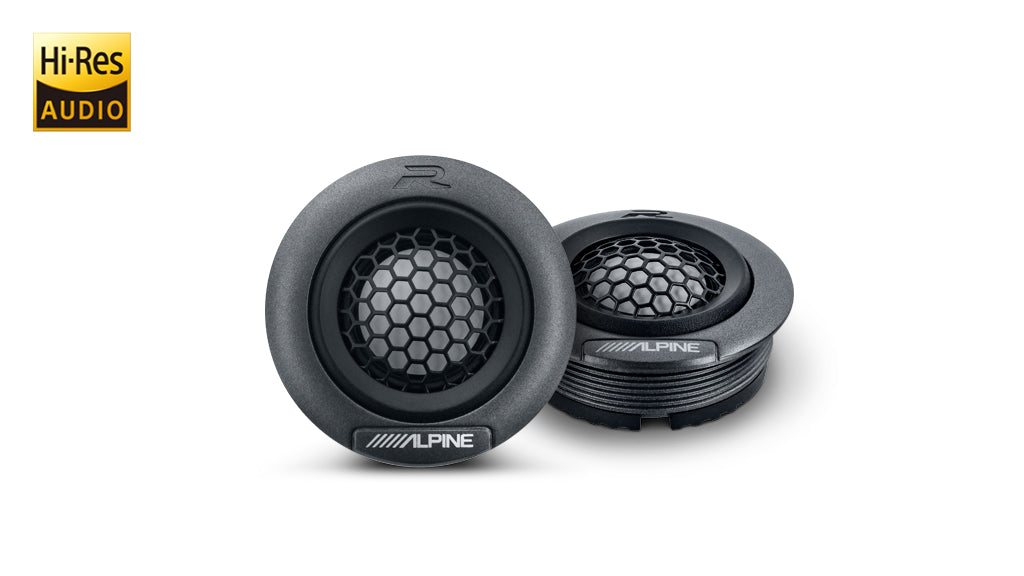

0.75-Inch Soft Dome Tweeter: Delivers crisp, extended highs.
-
High Amplitude Multi-Roll (HAMR) Surround: Maximizes cone excursion for deeper bass.
-
Double-Stacked Magnets: Enhances motor force for better control.
-

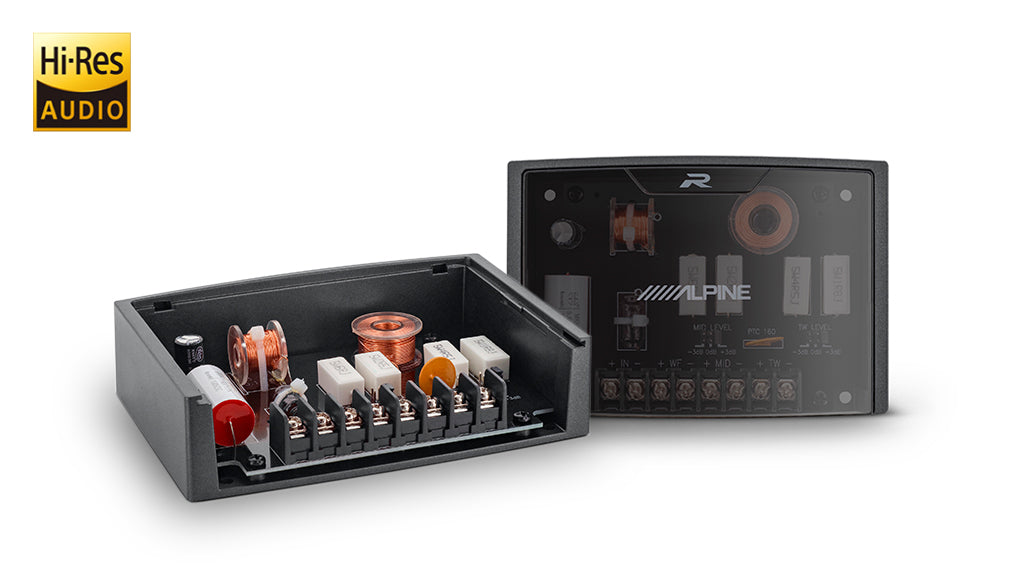

External Crossover Network: Ensures seamless frequency blending.
Specifications Table
| Specification |
Details |
| Speaker Size |
6.5 inches |
| Speaker Type |
3-Way Component |
| Impedance |
4 Ohms |
| Power Handling (RMS) |
100 Watts |
| Power Handling (Peak) |
300 Watts |
| Sensitivity (1W/1m) |
88 dB |
| Frequency Response |
65 Hz - 40 kHz |
| Mounting Depth |
2.5 inches (64 mm) |
| Cutout Diameter |
5.5 inches (140 mm) |
| Midrange Size |
1 inch (25 mm) |
| Tweeter Size |
0.75 inch (19 mm) |
| Cone Material |
Kevlar-Treated Pulp |
| Surround Material |
Rubber (HAMR) |
| Basket Design |
Cast Aluminum |
| Crossover |
External (12 dB/Octave) |
| Grilles Included |
Yes |
| Weight |
Not specified |
| Warranty |
1 Year |
