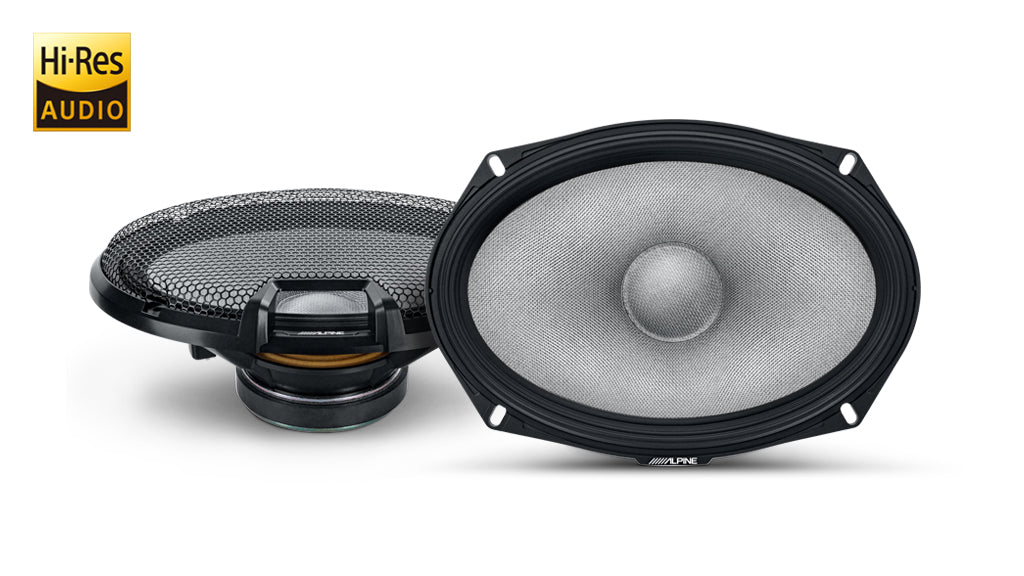

Alpine R2-S69C R-Series 6x9-Inch Component Speakers

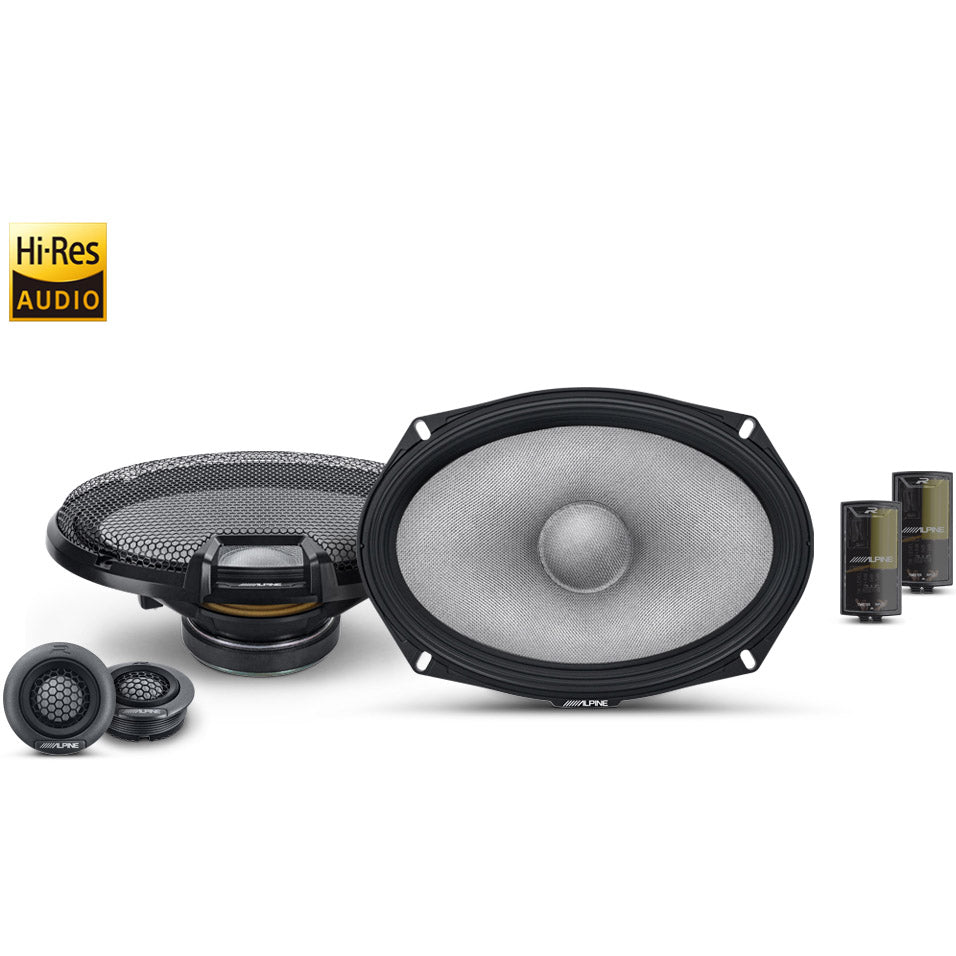

Elevate your car audio with the Alpine R2-S69C, a 6x9-inch 2-way component speaker system from the R-Series lineup. Engineered for high-resolution sound, this set features a Kevlar-treated pulp cone woofer and a 1-inch soft dome tweeter, delivering clear highs and powerful mids for superior audio performance.
Key Features of the Alpine R2-S69C
-
Hi-Res Audio Certified: Reproduces frequencies up to 40kHz for studio-quality sound.
-
Kevlar-Treated Pulp Cone Woofer: Lightweight and rigid for low distortion.
-

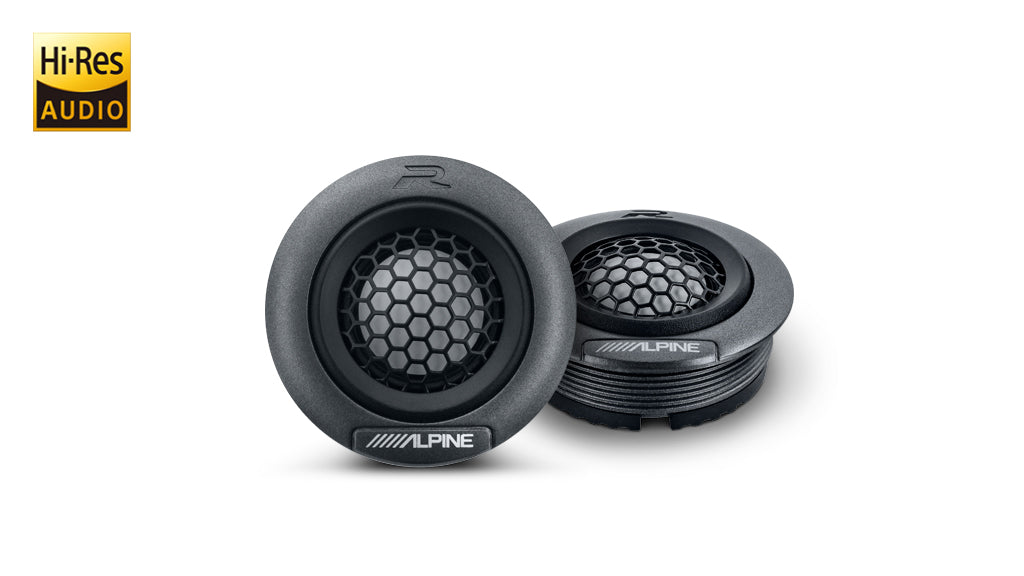

1-Inch Soft Dome Tweeter: Provides smooth, detailed high-frequency response.
-
High Amplitude Multi-Roll (HAMR) Surround: Maximizes cone excursion for deeper bass.
-
Double-Stacked Magnets: Enhances motor force for better control.
-
Integrated Faraday Ring: Minimizes distortion for cleaner sound.
-
External Crossover Network: Ensures seamless frequency blending.
Specifications Table
| Specification |
Details |
| Speaker Size |
6x9 inches |
| Speaker Type |
2-Way Component |
| Impedance |
4 Ohms |
| Power Handling (RMS) |
100 Watts |
| Power Handling (Peak) |
300 Watts |
| Sensitivity (1W/1m) |
89 dB |
| Frequency Response |
60 Hz - 40 kHz |
| Mounting Depth |
3.0 inches (76 mm) |
| Cutout Diameter |
5.9 x 8.7 inches (150 x 221 mm) |
| Tweeter Size |
1 inch (25 mm) |
| Tweeter Type |
Soft Dome |
| Cone Material |
Kevlar-Treated Pulp |
| Surround Material |
Rubber (HAMR |
