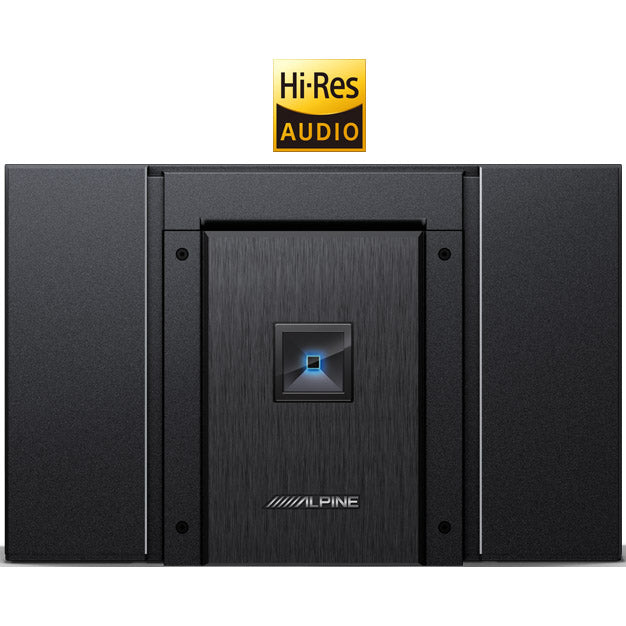

Alpine Status HDA-F60 Hi-Res Audio 4-Channel Amplifier
Elevate your car audio with the Alpine Status HDA-F60, a high-performance 4-channel amplifier from the Status series designed for full-range audio power. Engineered with HD Audio technology and a compact Class D design, this amplifier delivers high-resolution sound with a frequency response of 10-60kHz and a damping factor >500 for precise, dynamic performance.
Key Features of the Alpine HDA-F60
- Hi-Res Audio Certified: Supports 192kHz/24bit playback for studio-quality sound.
- Advanced Digital Design: Copper-plated chassis and black circuit board with integrated blue power indicator.
- High Damping Factor: >500 for accurate cone control and minimal distortion.
- Thermal Protection: Improved heat sink and circuit design prevent shutdown.
- Quick-Connect Terminals: One-sided layout with top-panel controls for easy access.
- Flexible System Integration: Optimized for full Alpine Status system or standalone use.
Specifications Table
| Specification | Details |
|---|---|
| Amplifier Type | 4-Channel Class-D |
| Power Output (RMS) | 100W x 4 @ 2Ω, 75W x 4 @ 4Ω |
| Power Output (Peak) | 200W x 4 @ 2Ω |
| Frequency Response | 10 Hz - 60 kHz |
| Damping Factor | >500 @ 4Ω |
| Hi-Res Audio Playback | 192kHz / 24bit |
| Thermal Protection | Yes (Intelligent Platform) |
| Connector Type | Quick-Connect Power & Speaker |
| Design | Copper-Plated Chassis, Black PCB |
