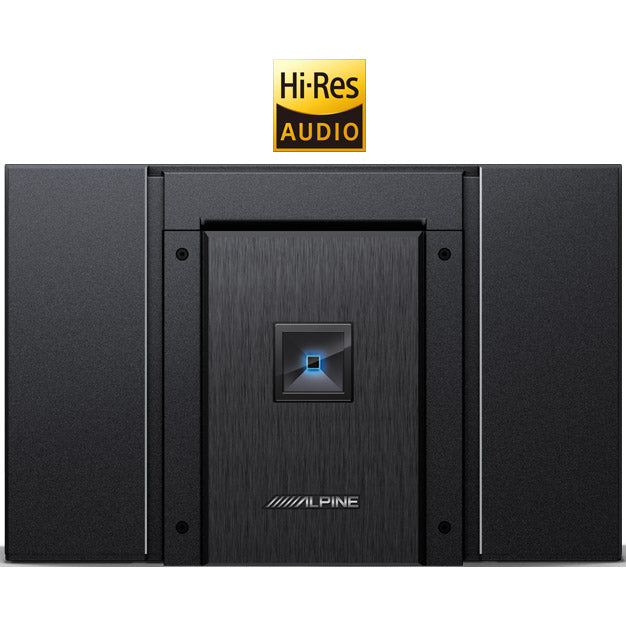

Alpine Status HDA-V90 5-Channel Amplifier
Elevate your car audio with the Alpine Status HDA-V90, a high-performance 5-channel amplifier from the Status series designed for full-range audio power. Engineered with HD Audio technology and a compact Class D design, this amplifier delivers 900W RMS total power for driving speakers and subwoofers with clarity and efficiency.
Key Features of the Alpine HDA-V90
- HD Audio Technology: Ensures high-resolution sound with minimal distortion.
- Compact Class D Design: Provides efficient power in a small footprint.
- Adjustable Crossovers: Includes high-pass, low-pass, and subsonic filters.
- High-Level Inputs: Supports factory system integration.
- CEA-2006 Compliant: Guarantees accurate power ratings.
Specifications Table
| Specification | Details |
|---|---|
| Amplifier Type | 5-Channel Amplifier |
| Power Output (RMS) | 75W x 4 @ 4Ω + 500W x 1 @ 2Ω |
| Power Output (Peak) | 150W x 4 @ 4Ω + 1,000W x 1 @ 2Ω |
| Frequency Response | 10 Hz - 40 kHz (Hi-Res Certified) |
| Signal-to-Noise Ratio | 105 dB @ 4Ω |
| Total Harmonic Distortion (THD) | < 1% @ rated power |
| Input Sensitivity | 200mV - 4V (RCA), 600mV - 10V (High-Level) |
| Crossover Frequencies | High-Pass: 50-250 Hz (12 dB/Oct), Low-Pass: 50-250 Hz (12 dB/Oct) |
| Damping Factor | > 250 |
| Operating Voltage | 9V - 16V DC |
| Idle Current | 0.8A |
| Maximum Current Draw | 80A @ 2Ω |
| Dimensions (W x H x D) | 8.5" x 2.0" x 8.0" (216 x 51 x 203 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| Efficiency | Not specified |
