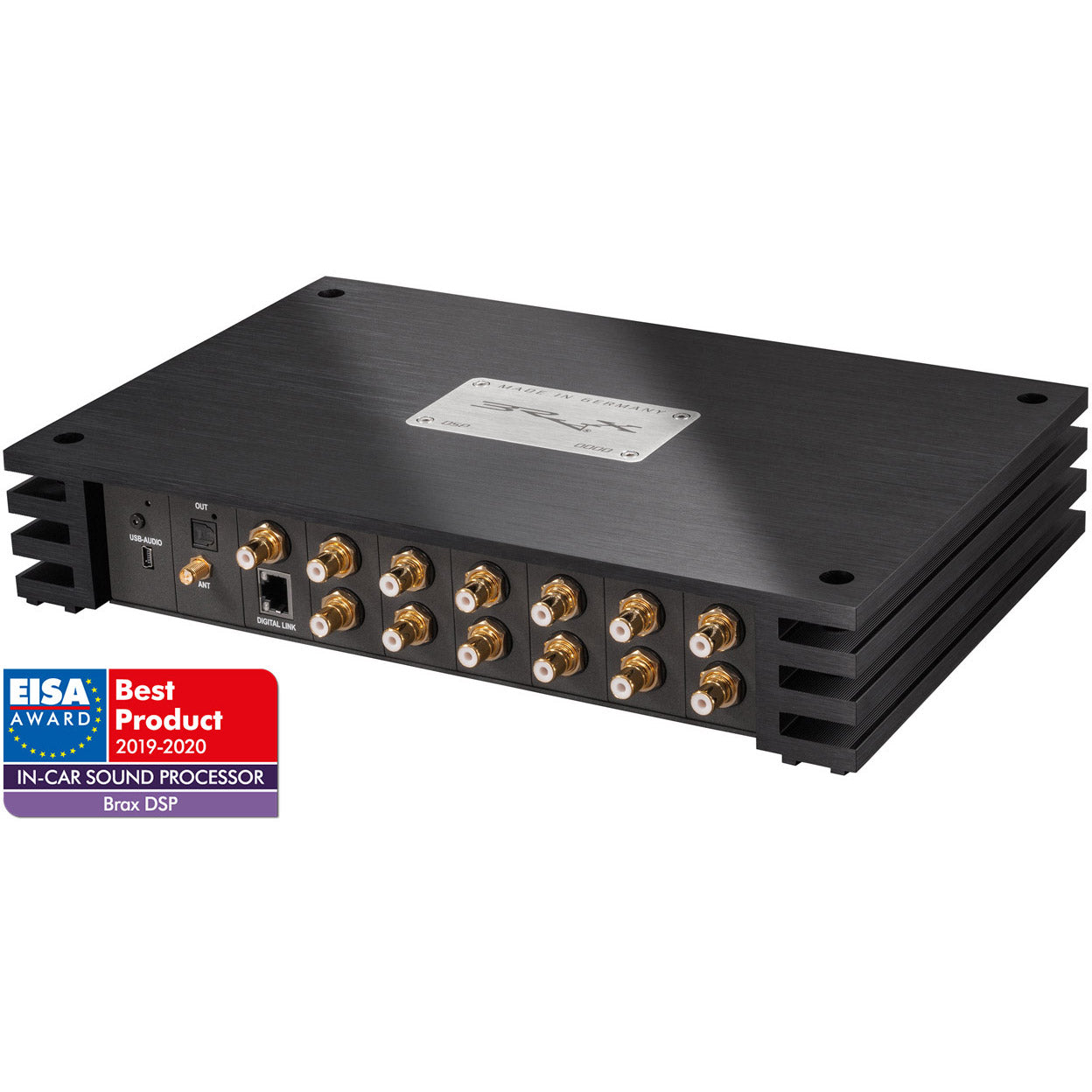

Brax DSP 12ch DSP Processor

Description

BRAX DSP – The Pinnacle of Digital Sound Processing

Overview

The BRAX DSP represents the ultimate in digital sound processing, developed over seven years from its inception in 2011 to release in late 2018. This groundbreaking product is the most sophisticated DSP ever created by Audiotec Fischer, setting new standards in sound quality, modularity, and engineering excellence.

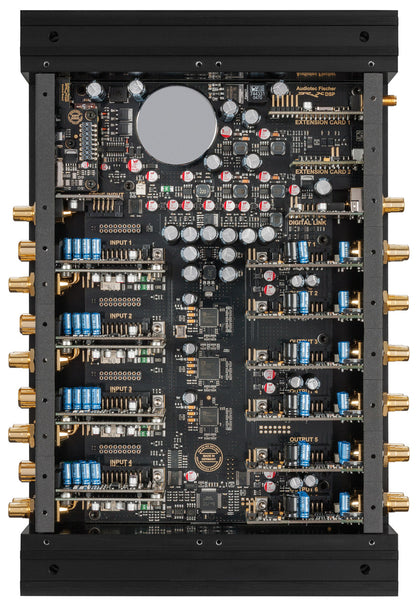

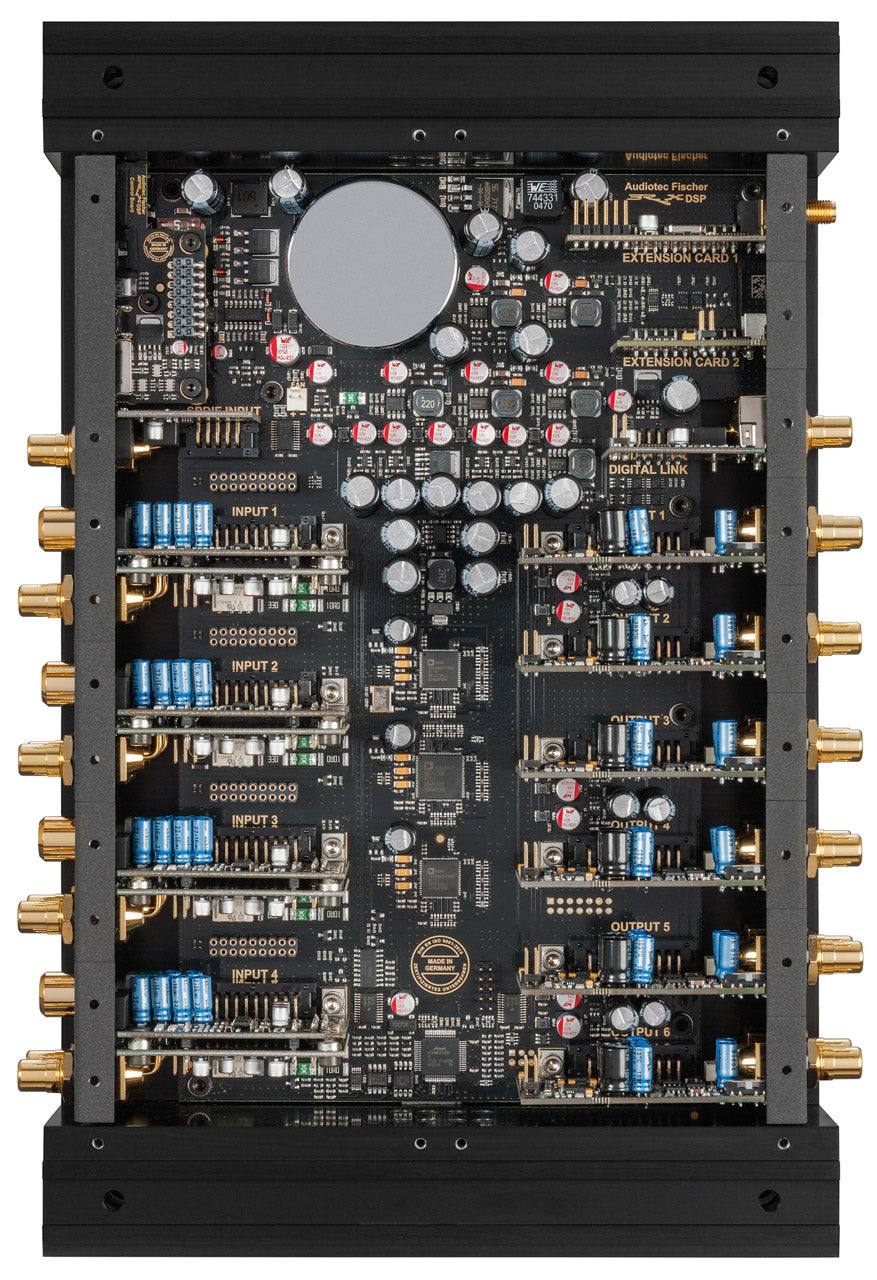

Equipped with three ultra-powerful 64-bit Sigma350 DSPs, the BRAX DSP delivers 3.6 billion MAC operations per second, operating natively at 192 kHz and offering audio bandwidth up to 80 kHz. Combined with Asahi Kasei’s industry-leading “Velvet Sound” converters, this DSP is designed for the most demanding audiophiles and professional installations.

Key Features

• Three Sigma350 64-bit DSPs
  Processing power of 3.6 billion MAC operations per second for real-time, high-resolution performance.

• Asahi Kasei A/D and D/A Converters
  32-bit "Velvet Sound" converters deliver outstanding signal-to-noise and THD performance.

• Native 192 kHz Sample Rate
  Ensures ultra high-resolution sound with frequency response up to 80 kHz.

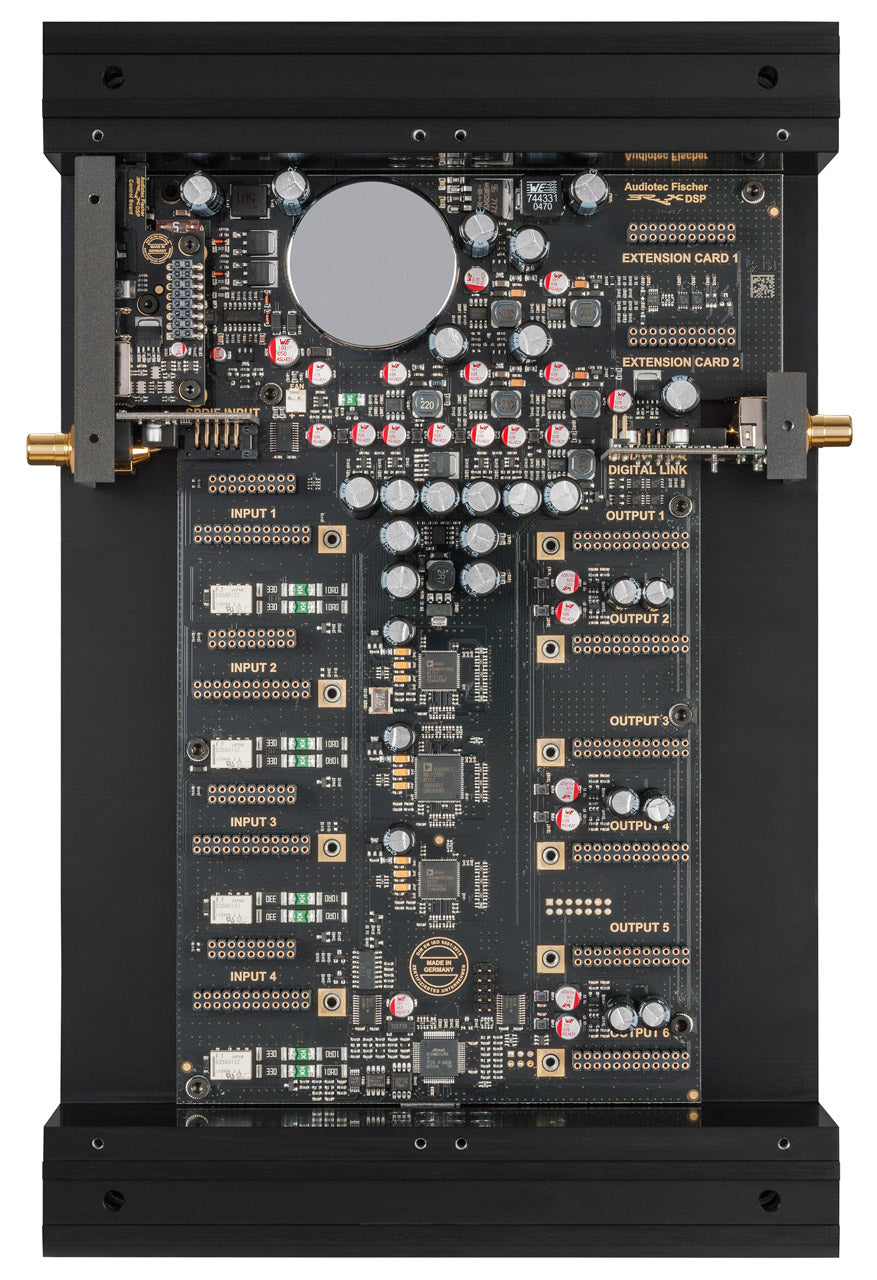

• Modular I/O Concept

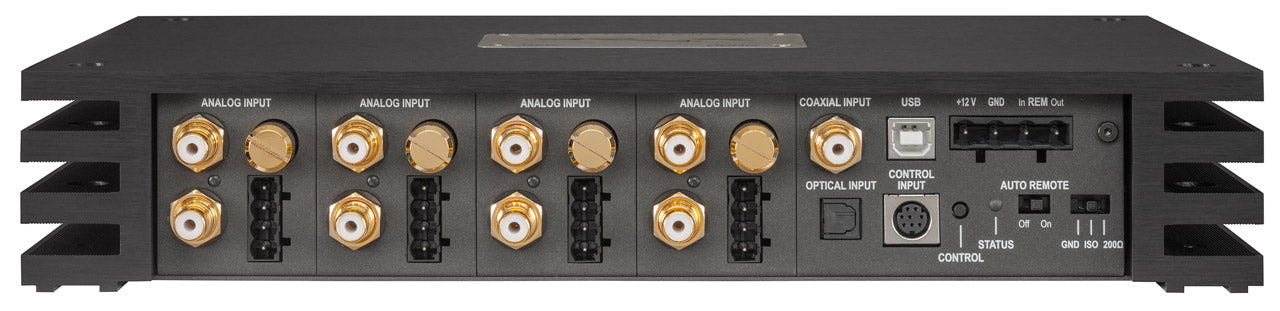

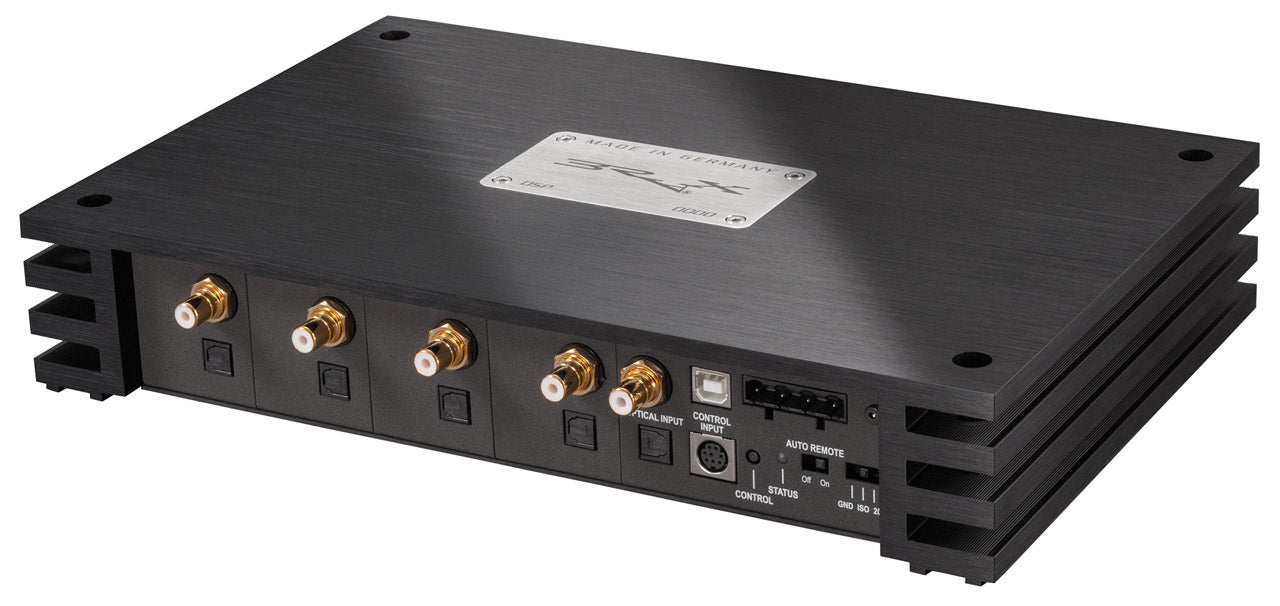

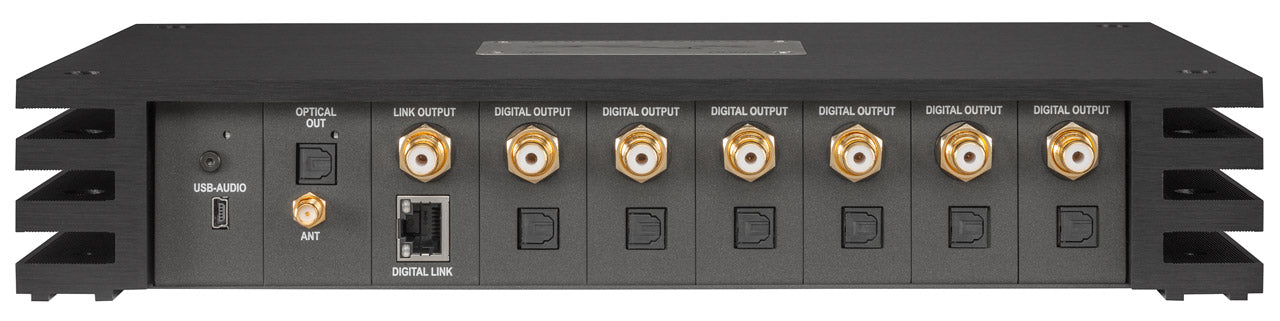

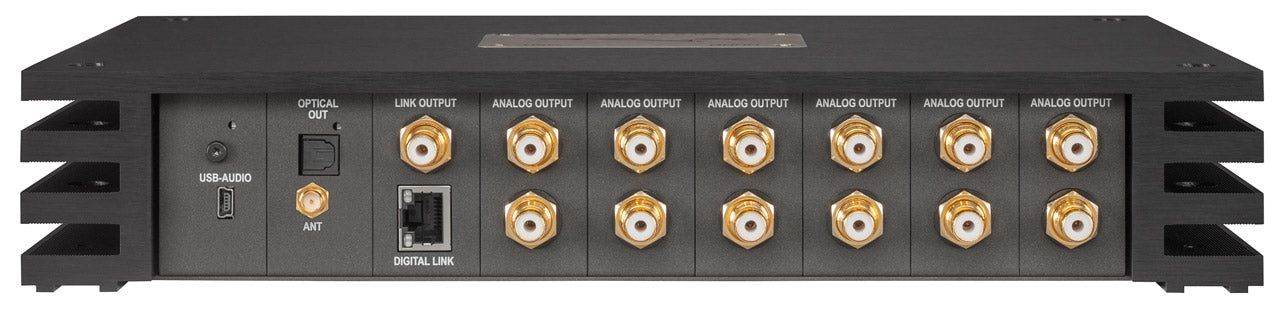

  Configure 8-channel input / 12-channel output via analog (RCA/Highlevel) or digital (SPDIF optical/coaxial) modules.

• Output Sampling Rate Selection
  Switchable between 48 / 96 / 192 kHz for flexibility in system design.

• DiSAC Volume Control
  Lossless, analog volume control in conjunction with the BRAX MX4 PRO amplifier.

• Advanced Control CoProcessor (ACO)
  Manages all operations and enables high-speed communication and setup switching.

• 55 Voltage Regulators
  Ensures ultra-clean power supply and start-stop capability.

• Solid Mechanical Design
  CNC-machined aluminum housing, massive heatsinks, and solid-milled RCA jacks showcase unparalleled build quality.

Exclusive DSP Sound Features

• RealCenter
  Creates a dynamically controlled center image for an immersive stereo field that remains balanced for both driver and passenger.

• Augmented Bass Processing
  Includes:

  • Dynamic Bass Enhancement: Adaptive bass gain with subsonic filter management.

  • SubXpander: Adds subharmonic tones for richer, deeper bass.

• StageXpander
  Significantly increases stereo width without compromising localization accuracy.

• ClarityXpander
  Enhances high-frequency detail and brilliance, with adjustable levels for front and center channels.

Technical Specifications

Scope of Delivery

• 1 × BRAX DSP Processor

• 1 × USB Cable

• 2 × Allen Keys

• 1 × Instruction Manual
