Brax Matrix ML1 28mm Silk Dome Tweeter

Description

BRAX MATRIX ML1

For years, the BRAX MATRIX speaker series has been synonymous with unrivaled sound and quality characteristics. With this in mind, the development of the 1.1" / 28 mm tweeters was focused on state-of-the-art technology and sophisticated materials to meet the BRAX brand's exacting standards – pure and precise sound reproduction.

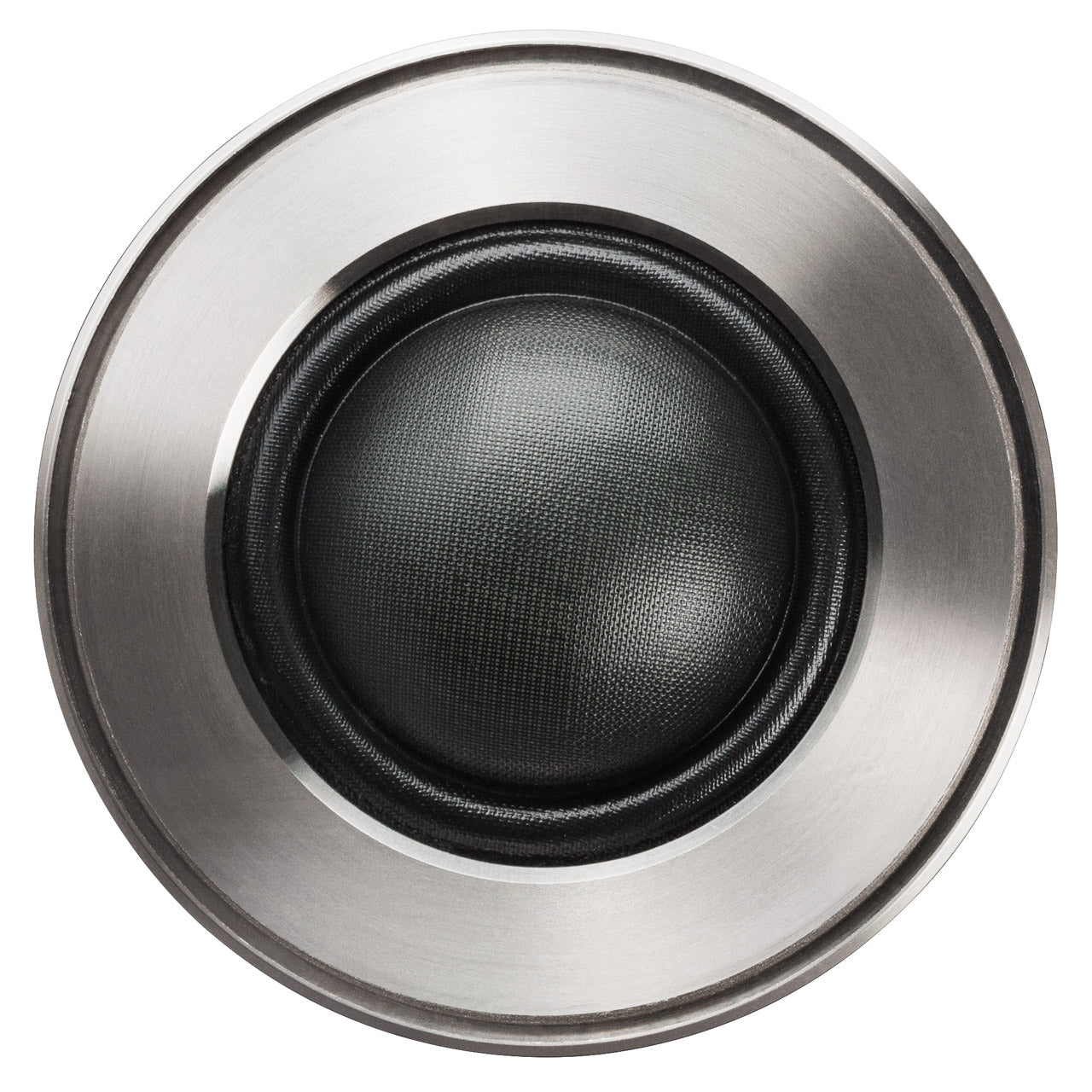

The ultra-lightweight, fine-meshed silk dome features a visco-elastic Acronal coating on both sides, delivering brilliant and smooth treble response. Additionally, the integration of pure lamb’s wool and a dampened coupling volume allows for a very low resonance frequency and deep acoustic coupling.

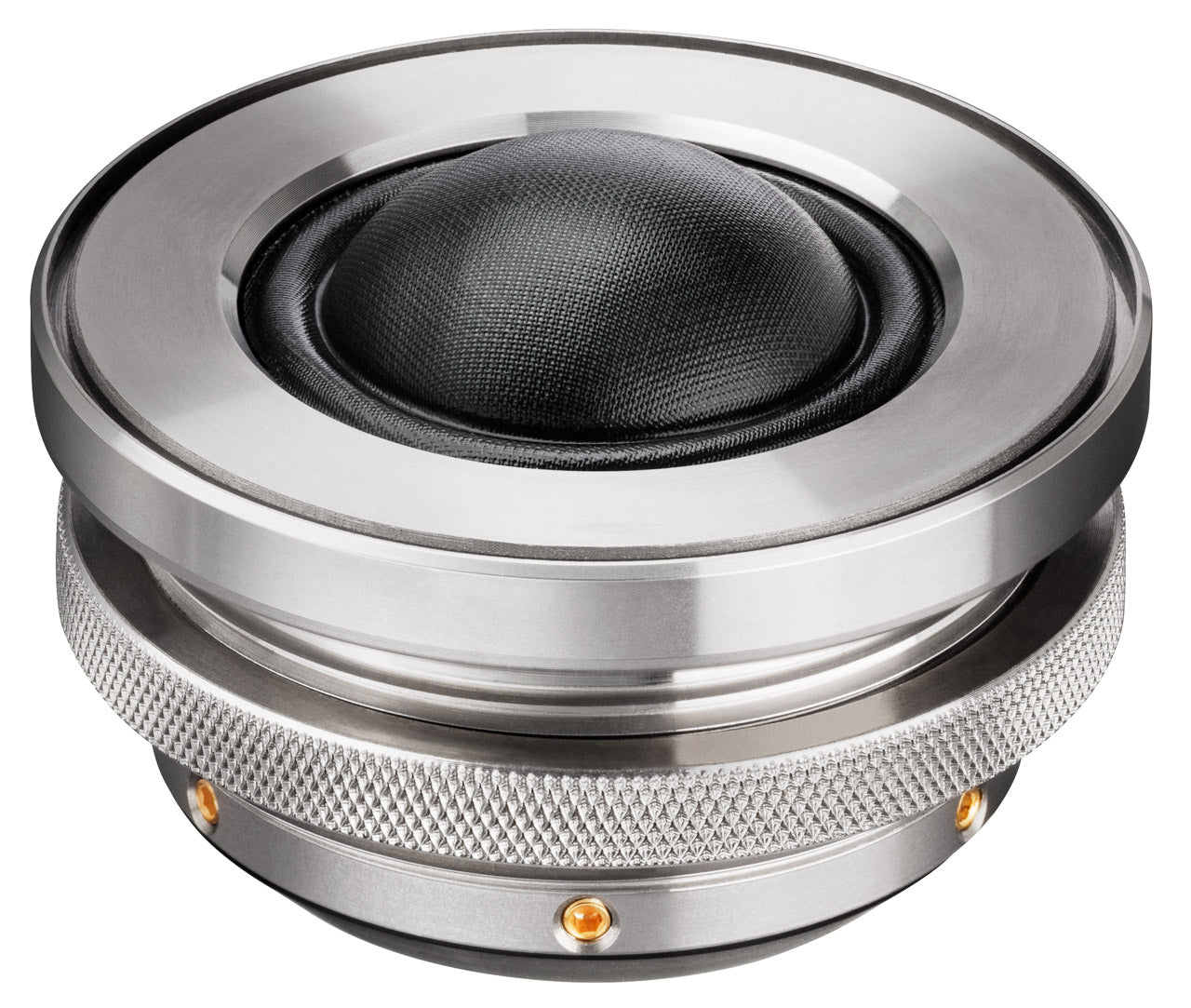

In true BRAX fashion, the elegant design reveals intelligent engineering: a two-part CNC-machined stainless steel housing ensures maximum heat dissipation; the ultra-precise, 8-times ventilated neodymium magnet generates optimal magnetic flux linearity; and integrated 24-carat gold-plated terminals offer maximum conductivity.

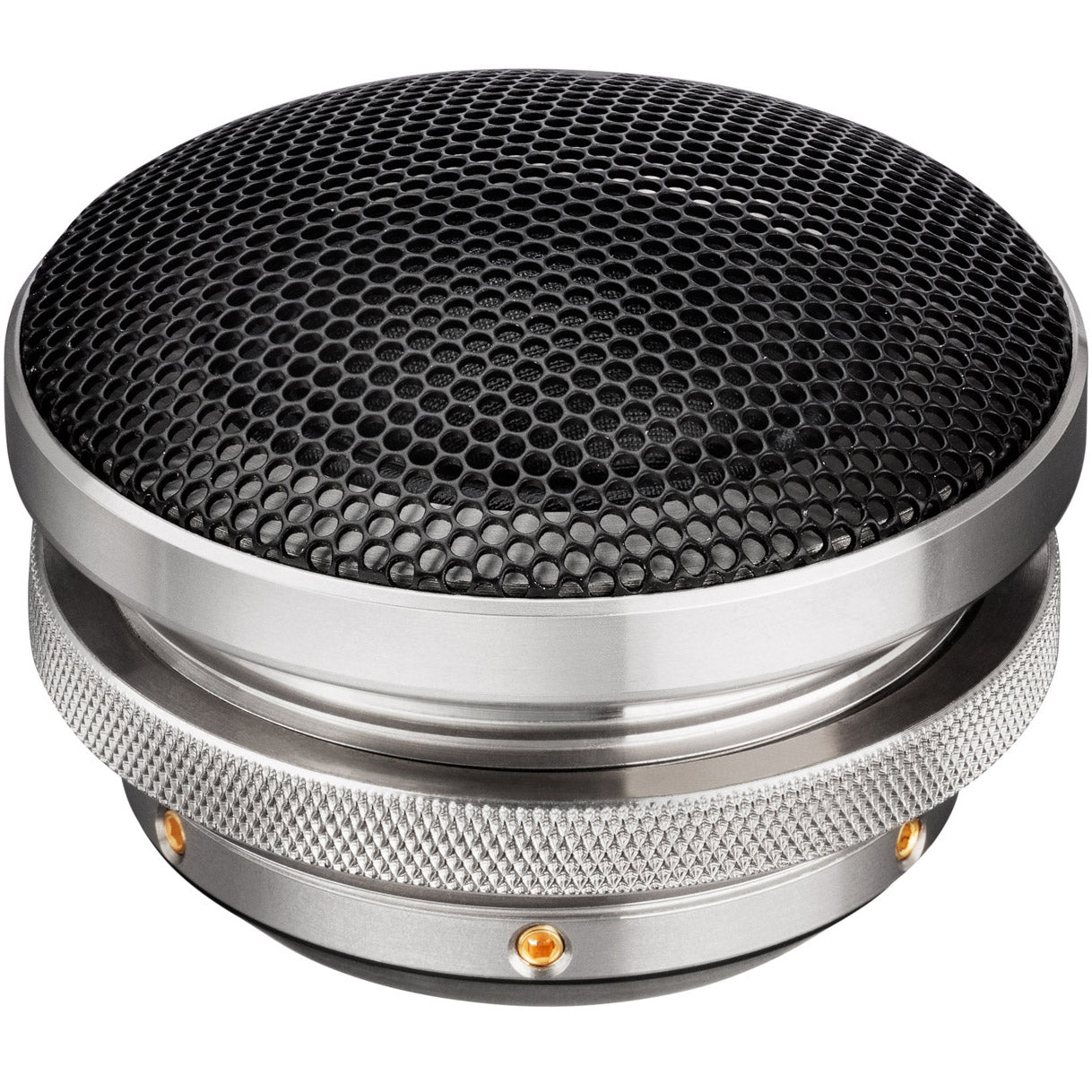

The threaded body and solid mounting ring on the rear provide a discreet, secure installation without visible fasteners. A protective grille shields the delicate dome, rounding out a tweeter that stands in a class of its own.

Each speaker set is hand-selected and paired for perfect tonal matching, and each pair receives a unique serial number recorded in a service database. Packaged in an exclusive wooden box, the BRAX MATRIX ML1 reflects the brand's high-end philosophy through and through.

Features

• Ultra-lightweight silk dome with dual-side Acronal coating for brilliant, smooth treble

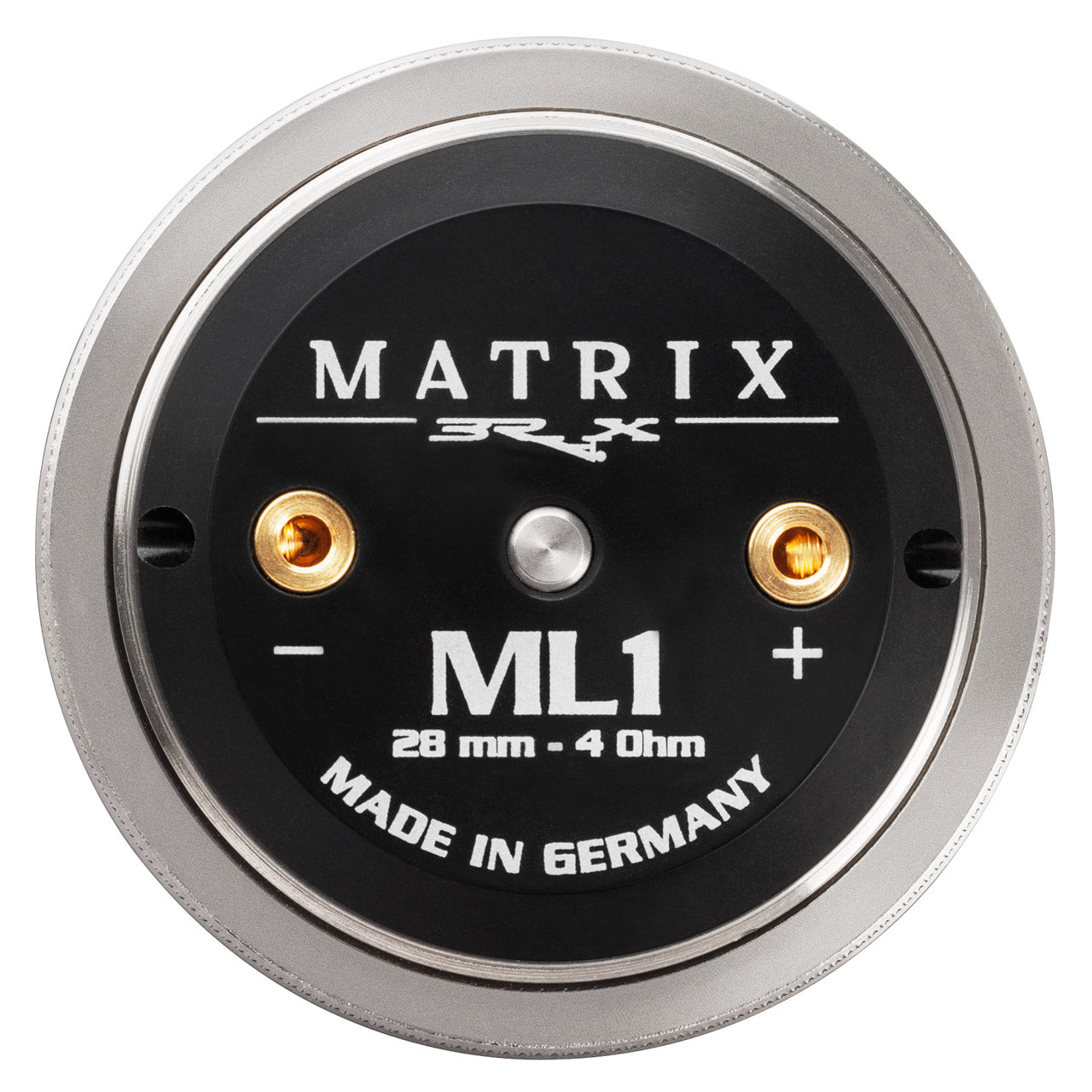

• Integrated 24-carat gold-plated terminals for superior conductivity

• Ultra-precise machined, 8x ventilated neodymium magnet for top magnetic linearity

• CNC-machined stainless steel housing ensures efficient heat dissipation

• Threaded body and solid rear mounting ring allow clean, secure installation

• Lamb’s wool dampened coupling volume supports low resonance frequency

• Protective grille included for durability

Technical Data

• Power RMS / Max: 120 / 170 Watts (highpass > 3,000 Hz at 12 dB/Oct.)

• Impedance: 4 Ohms

• DC Resistance (Re): 3.4 Ohms

• Frequency Response: 1,800 – 25,000 Hz

• Resonance Frequency (Fs): 630 Hz

• Efficiency (SPL): 90 dB (1 W / 1 m)

• Voice Coil Diameter: 28 mm / 1.10"

• Cone Area (Sd): 6.2 cm²

• Moving Mass (Mms): 0.32 g

• Cone Material: Silk dome with Acronal coating

• Outer Diameter: 60 mm / 2.4"

• Installation Diameter: 50 mm / 2.0"

• Installation Depth: 25 mm / 1.0"

Recommended Highpass Crossover Frequencies

• 6 dB/Octave: 3,500 Hz

• 12 dB/Octave: > 2,500 Hz

• 24 dB/Octave: > 1,800 Hz

Scope of Delivery

• 2 x High-End Tweeter BRAX MATRIX ML1

• 2 x Mounting Ring

• 2 x Grille

• 1 x Allen Key

• 1 x Certificate

• 1 x Data Sheet
