Brax Matrix ML2 55mm Silk Dome Midrange

Description

BRAX MATRIX ML2

For years, the BRAX MATRIX speaker series has been synonymous with unrivaled sound and quality characteristics. With this in mind, the further development of the 2.1" / 54 mm midrange speakers was based on state-of-the-art technology and sophisticated materials to meet the high standards of the BRAX brand—pure and precise sound reproduction.

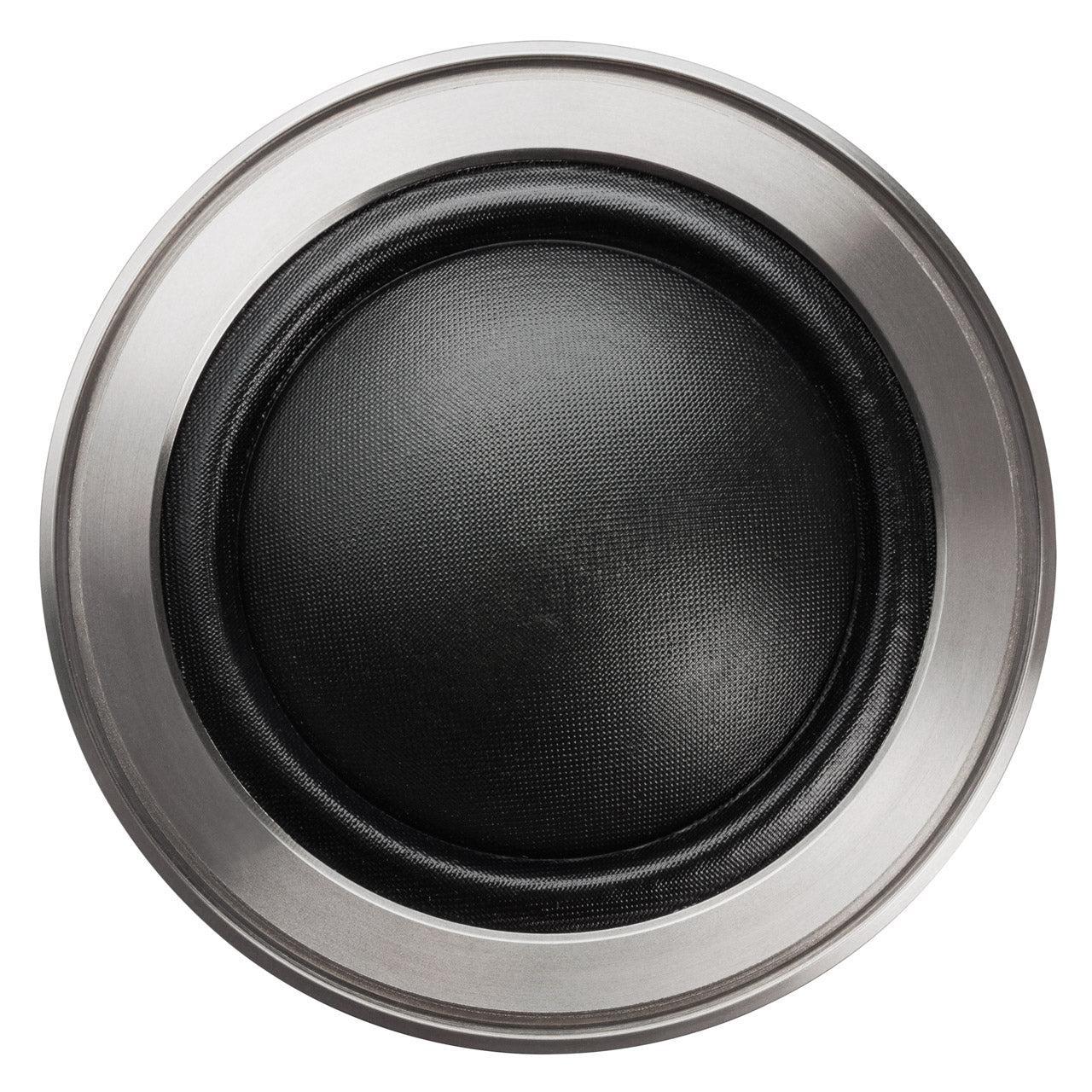

The novel, ultra-lightweight and fine-meshed silk dome with a visco-elastic Acronal coating on both sides guarantees brilliant and smooth treble response. In addition, the integration of pure lamb’s wool and a dampened coupling volume enables a very low resonance frequency and allows deep acoustic coupling.

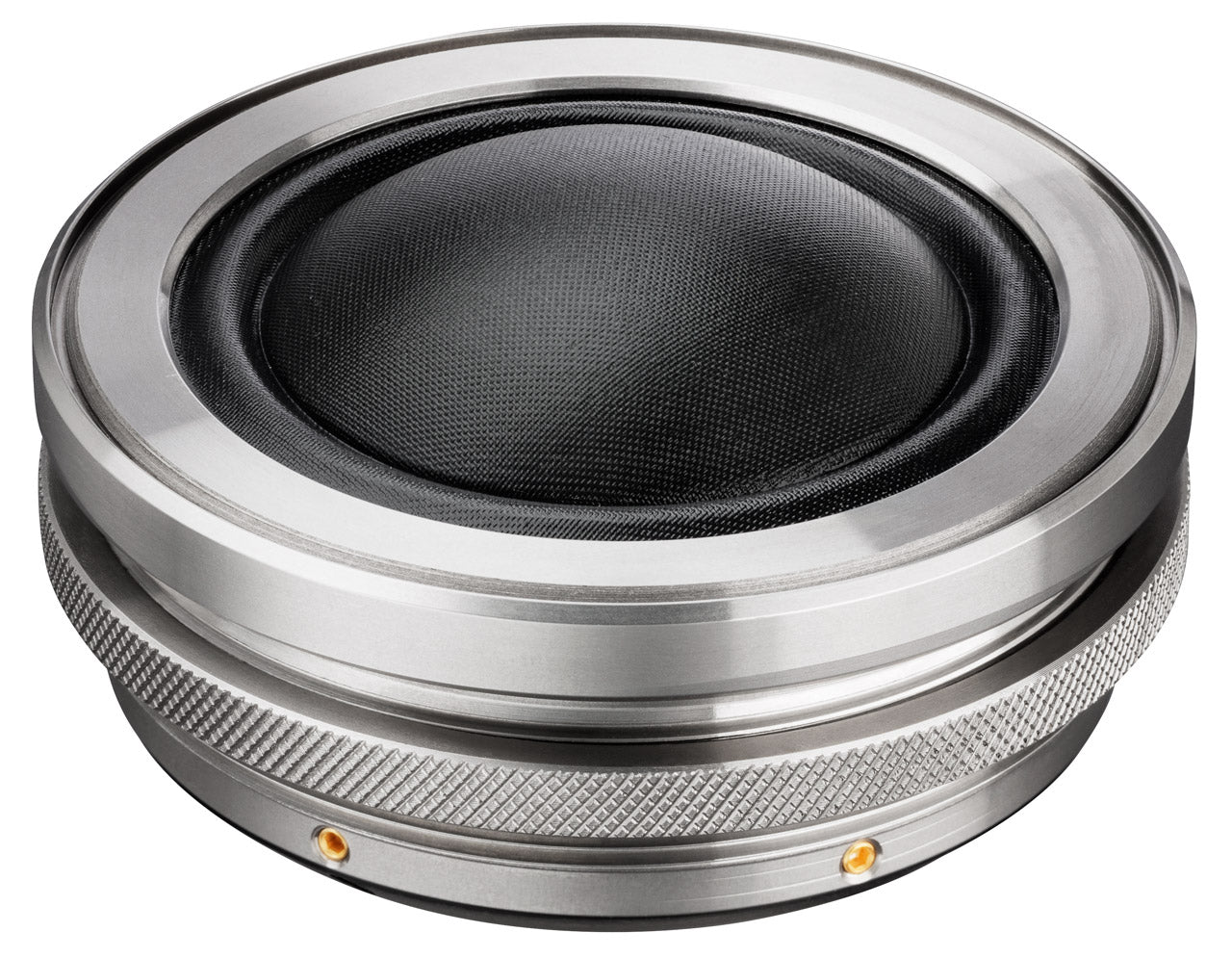

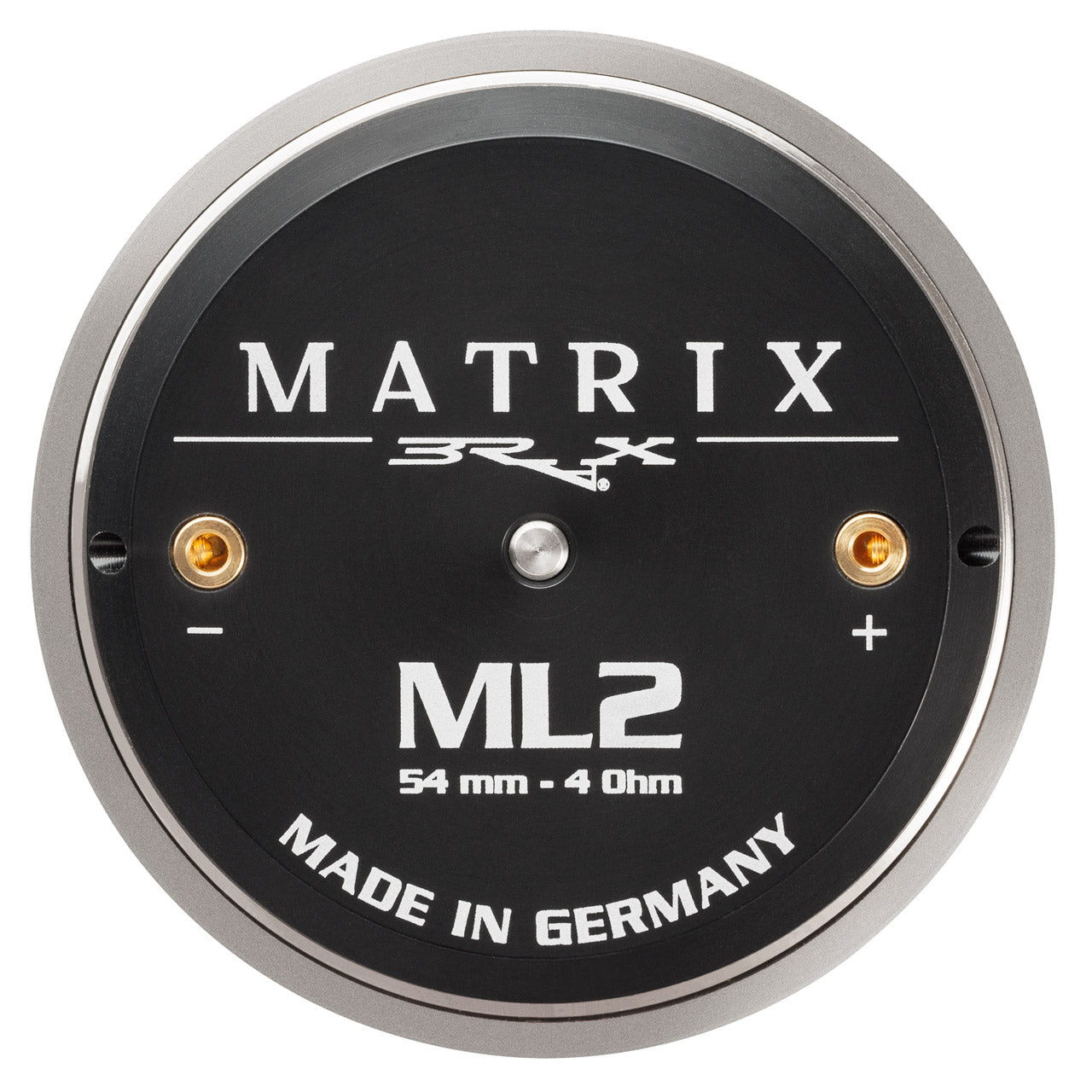

In terms of design and technology, the BRAX philosophy is followed without exception. The elegant appearance reveals smart details such as a two-part CNC-machined stainless steel housing for maximum heat dissipation. The ultra-precisely machined, 10-times ventilated neodymium magnet ensures the highest magnetic flux linearity, while the integrated 24-carat gold-plated terminals maximize conductivity.

The threaded body with its solid rear mounting ring allows for secure, hidden installation without the need for complex or unsightly mounting fixtures. A sturdy protective grille is also included to safeguard the silk dome.

Each speaker set is hand-selected and acoustically matched in pairs to meet strict quality requirements. After selection, every set receives a unique serial number recorded in a service database. The speakers are packaged in an exclusive wooden box to emphasize the premium nature of the BRAX brand.

Features

• Ultra-lightweight, fine-meshed silk dome with dual-side visco-elastic Acronal coating for brilliant, smooth midrange response

• Integrated 24-carat gold-plated terminals for maximum conductivity

• Ultra-precise machined, 10x ventilated neodymium magnet for high magnetic flux linearity

• Two-part CNC-machined stainless steel housing for maximum heat dissipation

• Solid rear mounting ring with threaded body for concealed installation

• Integrated lamb’s wool dampened coupling volume for very low resonance frequency

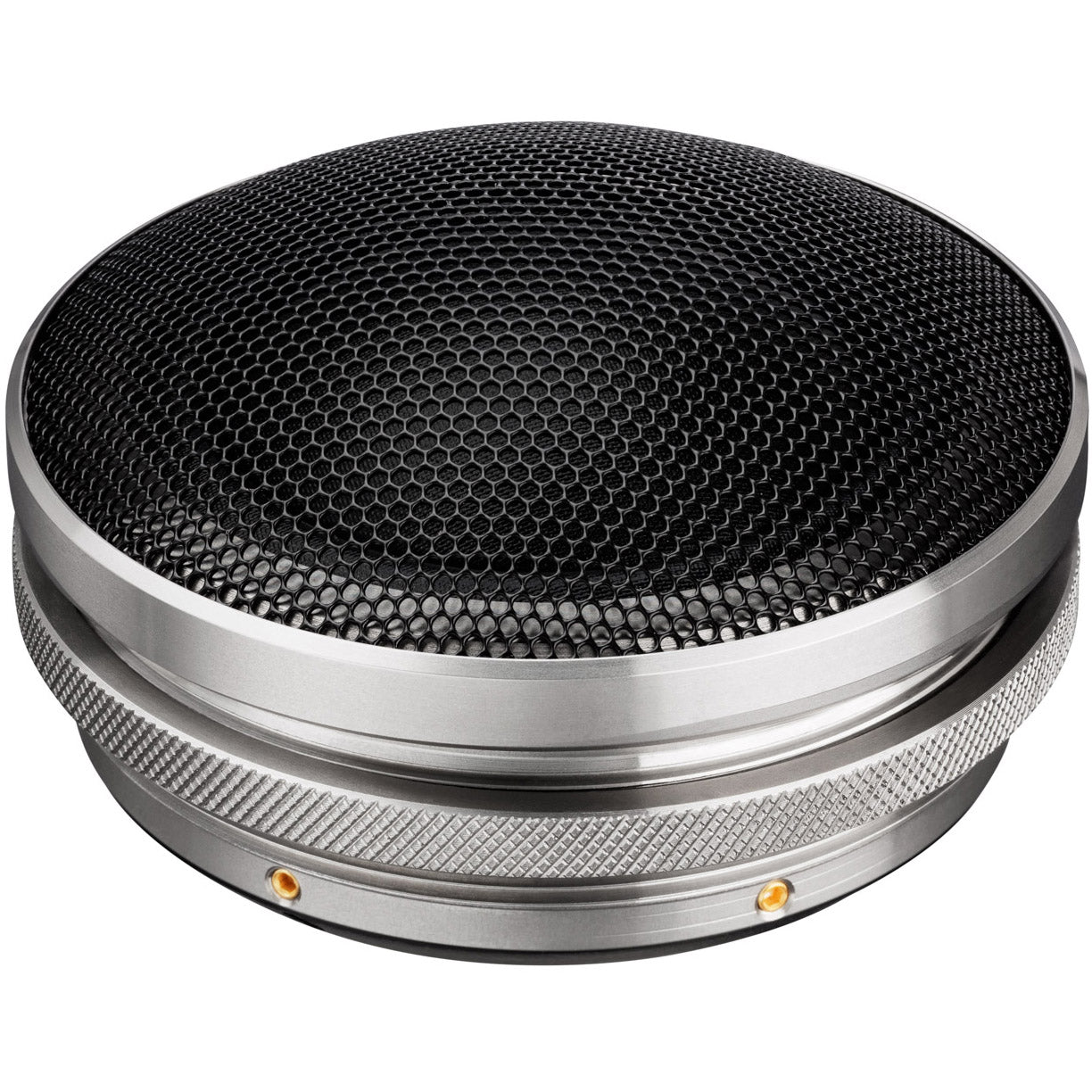

• Sturdy protection grille included

Technical Data

• Power RMS / Max: 120 / 170 Watts (high-pass > 750 Hz at 12 dB/Oct.)

• Impedance: 4 Ω

• DC Resistance (Re): 3.4 Ω

• Frequency Response: 650 Hz – 7,000 Hz

• Resonance Frequency (Fs): 520 Hz

• Efficiency (1 W / 1 m SPL): 91 dB

• Voice Coil Diameter: 54 mm / 2.13"

• Cone Area (Sd): 22.9 cm²

• Moving Mass (Mms): 1.57 g

• Cone Material: Silk dome with dual-side Acronal coating

• Outer Diameter: 85 mm / 3.4"

• Installation Diameter: 78 mm / 3.1"

• Installation Depth: 25 mm / 1.0"

Recommended Crossover Frequencies (High-Pass)

Scope of Delivery

• 2 x High-End Dome Midrange Speaker BRAX MATRIX ML2

• 2 x Mounting Rings

• 2 x Grilles

• 1 x Allen Key

• 1 x Certificate

• 1 x Data Sheet
