Brax Matrix ML3 80mm Cone Midrange

Description

BRAX MATRIX ML3

The new BRAX MATRIX ML3 cone midrange speakers are masterpieces in themselves – handcrafted in Germany with state-of-the-art technology and only the best materials. When implemented as part of a fully active sound system, it becomes clear they are something truly perfected. The ML3 speakers deliver extraordinary sound and performance that meet the high expectations of the BRAX name.

Their design signals premium quality; the meticulously selected "Made in Germany" components ensure exceptional functionality and clean sound reproduction. An aerodynamically shaped aluminum die-cast basket provides ideal voice coil ventilation, while a low-reflection rubber surround ensures smooth high-frequency roll-off. The very stiff and lightweight paper cone features a revolutionary “MicroSphere” coating. This patented technology embeds ceramic hollow spheres (only 75 microns in diameter) in a polyamide layer applied to the cone. This special coating increases stiffness and internal damping without increasing weight, allowing for excellent responsiveness, a low total Q factor, and outstanding precision in sound reproduction.

To meet BRAX's rigorous quality standards, each speaker set is hand-selected and acoustically matched. Only after this process does each set receive a unique serial number, which is recorded in a service database. Packaged in an elegant wooden box, this speaker system reflects the BRAX high-end philosophy. An optional stainless steel mounting ring set including a grill (MR3) is also available. The solid stainless steel ring can be used either as a mounting ring or grill support, depending on your installation setup.

Features

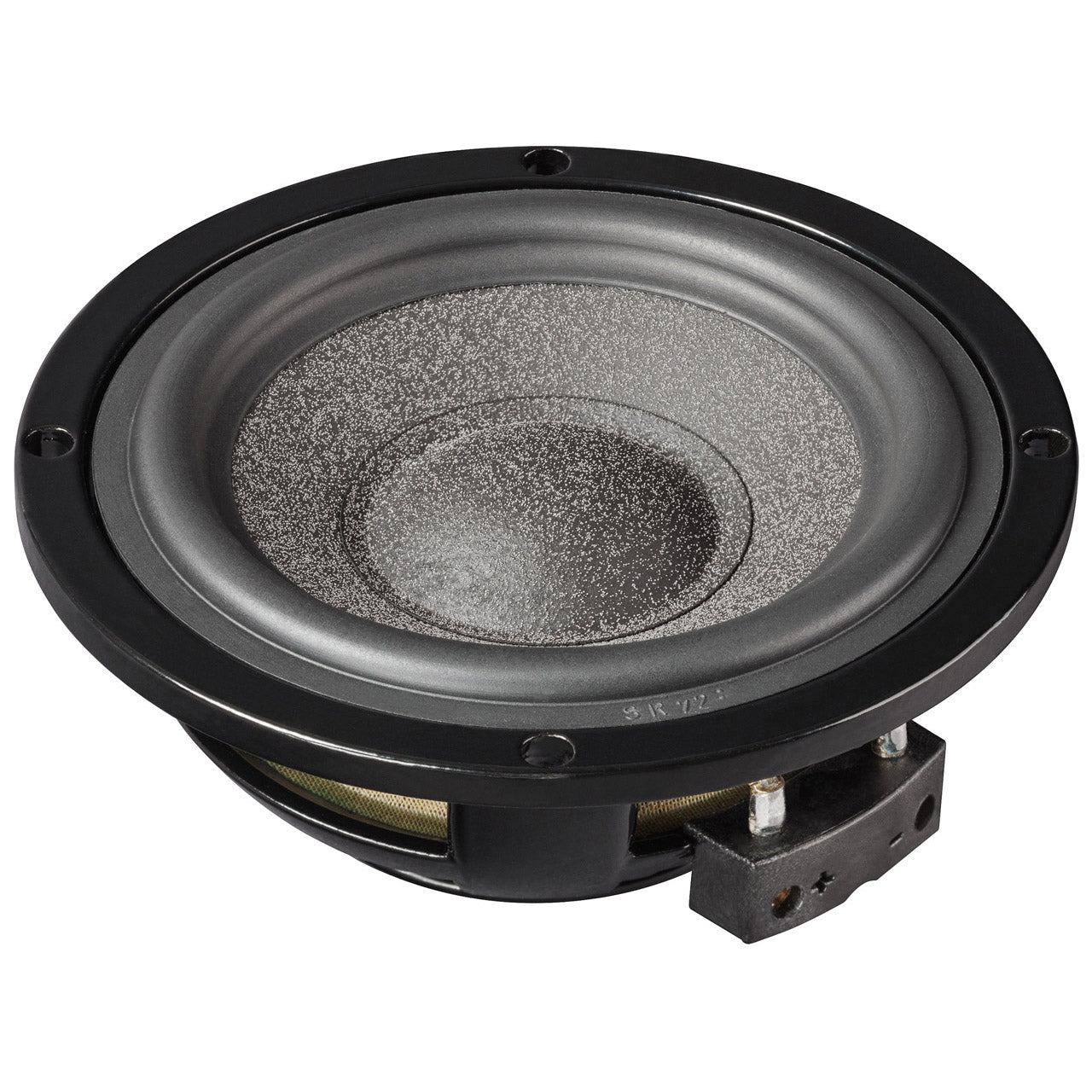

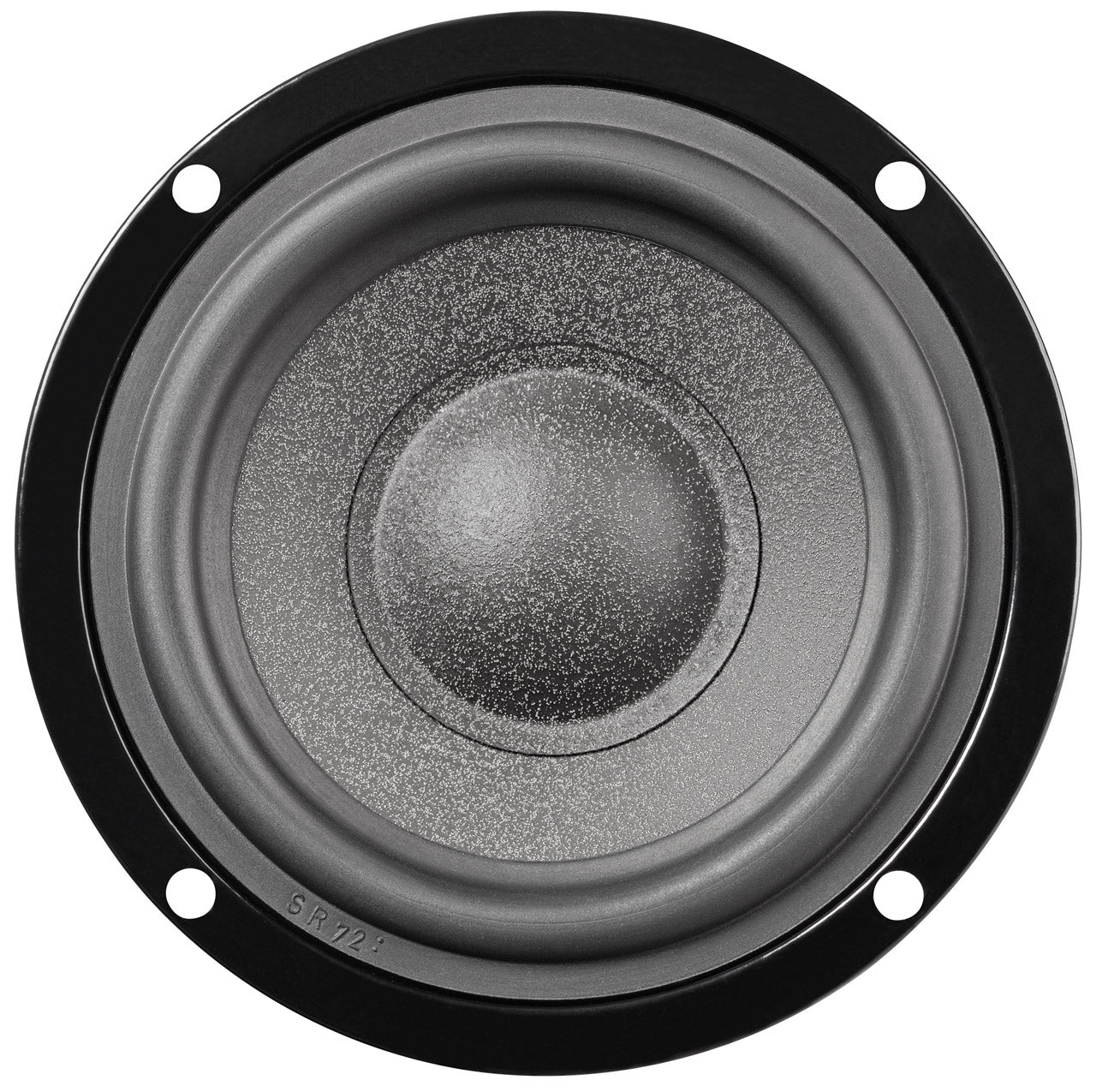

• Extremely stiff yet lightweight paper cone with exclusive MicroSphere coating

• Low-reflection rubber surround for smooth high-frequency roll-off

• Aerodynamically shaped aluminum die-cast basket with optimized voice coil ventilation

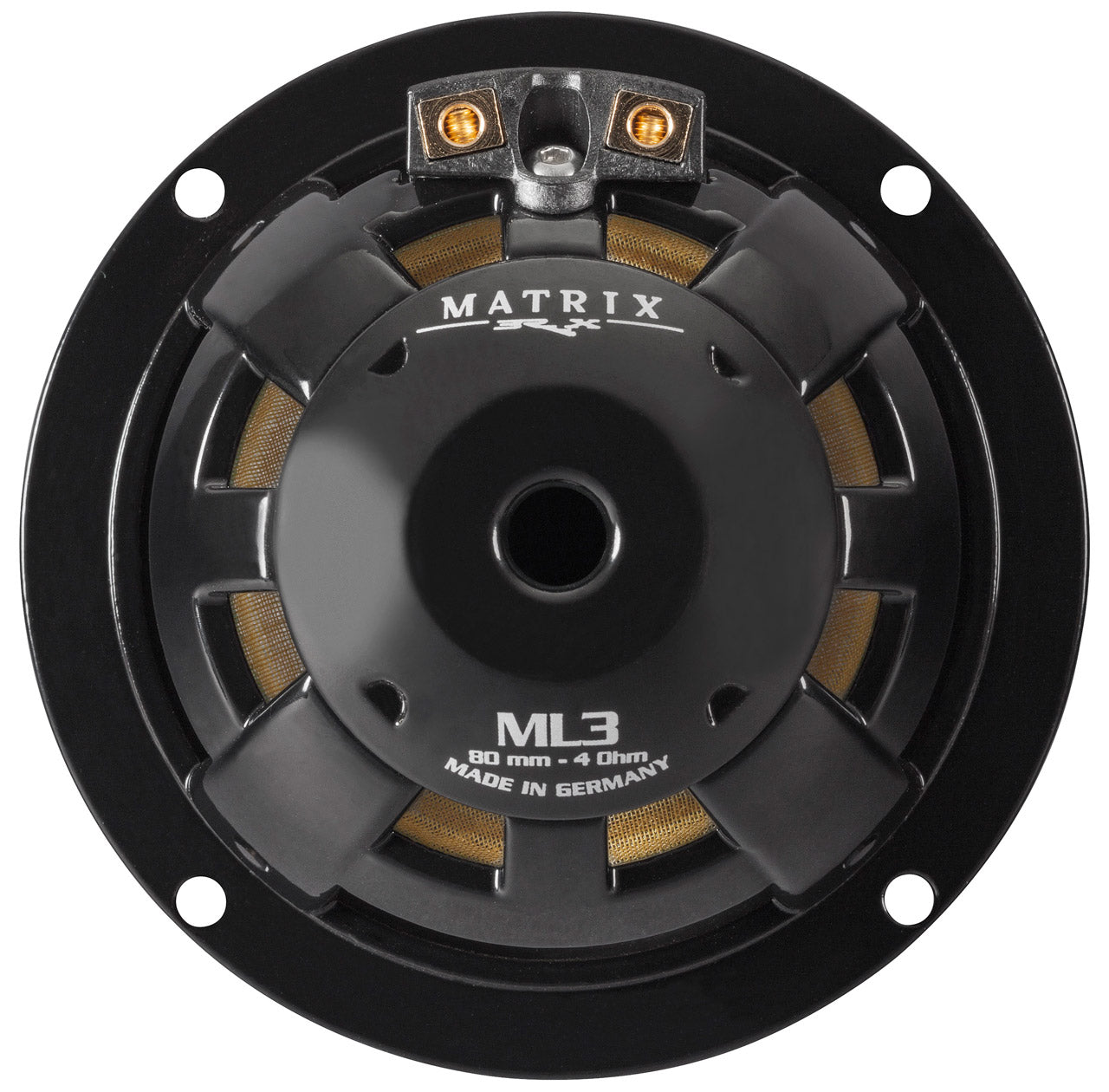

• Ultra-precise machined, vented neodymium magnet system for highly linear magnetic flux

Technical Data

• Power RMS / Max: 100 / 150 Watts (highpass > 300 Hz at 24 dB/Oct.)

• Impedance: 4 Ohms

• DC Resistance (Re): 3.4 Ohms

• Frequency Response: 250 Hz – 8,000 Hz

• Resonance Frequency (Fs): 80 Hz

• Mechanical Q Factor (Qms): 2.21

• Electrical Q Factor (Qes): 0.33

• Total Q Factor (Qts): 0.29

• Compliance (Cms): 1220 µm/N

• Equivalent Air Volume (Vas): 2.09 L

• Force Factor (B*I): 4.1 Tm

• Efficiency (SPL): 87 dB @ 1W/1m

• Cone Area (Sd): 35 cm²

• Moving Mass (Mms): 3.3 g

• Cone Material: Paper with MicroSphere coating

• Mechanical Resistance (Rms): 0.74 kg/s

• Voice Coil Diameter: 25 mm / 1"

• Voice Coil Winding Height: 6 mm / 0.2"

• Max. Linear Excursion (Xmax): ±1.5 mm

• Outer Diameter: 92 mm / 3.6"

• Installation Diameter: 76 mm / 3.0"

• Installation Depth: 34 mm / 1.3"

Recommended Enclosure Volumes (Sealed)

Note: The enclosure should always be filled with suitable damping material.

Scope of Delivery

• 2 x High-End Cone Midrange Speaker BRAX MATRIX ML3

• 1 x Allen Key

• 1 x Certificate

• 1 x Data Sheet
