Brax Matrix ML6D 16CM MidBass

Description

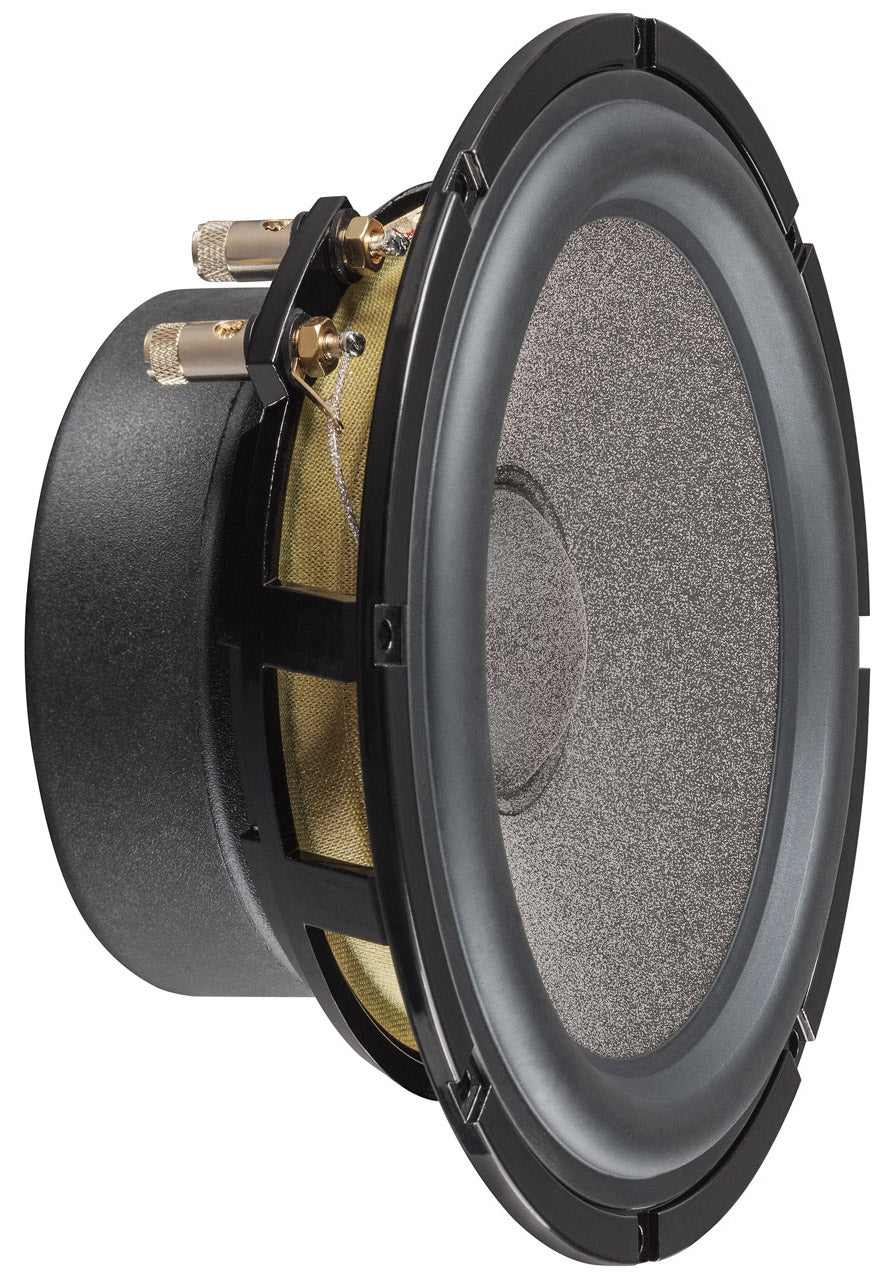

BRAX MATRIX ML6D

For years, the BRAX MATRIX speaker series has been synonymous with unrivaled sound and quality. With this in mind, the development of the 6.5" / 165 mm woofers focused on state-of-the-art technology and sophisticated materials to meet BRAX’s high standards for pure and precise sound reproduction.

As with our latest ML10 and ML3 loudspeakers, the ML6D features the unique MicroSphere coating. This patented technology embeds ceramic hollow spheres with a diameter of just 75 microns in a polyamide layer applied to the cone. The result is exceptional inner damping without adding weight to the cone. This innovative material increases cone stiffness, enabling more dynamic and refined performance.

The BRAX philosophy is fully realized in both design and technology:

• A sleek, refined appearance

• Hemispherical dust cap optimized for upper midrange response

• Perfectly linear magnet structure for low distortion

• Multiple ventilated voice coil for high power handling

• Rigid, aerodynamically efficient die-cast basket

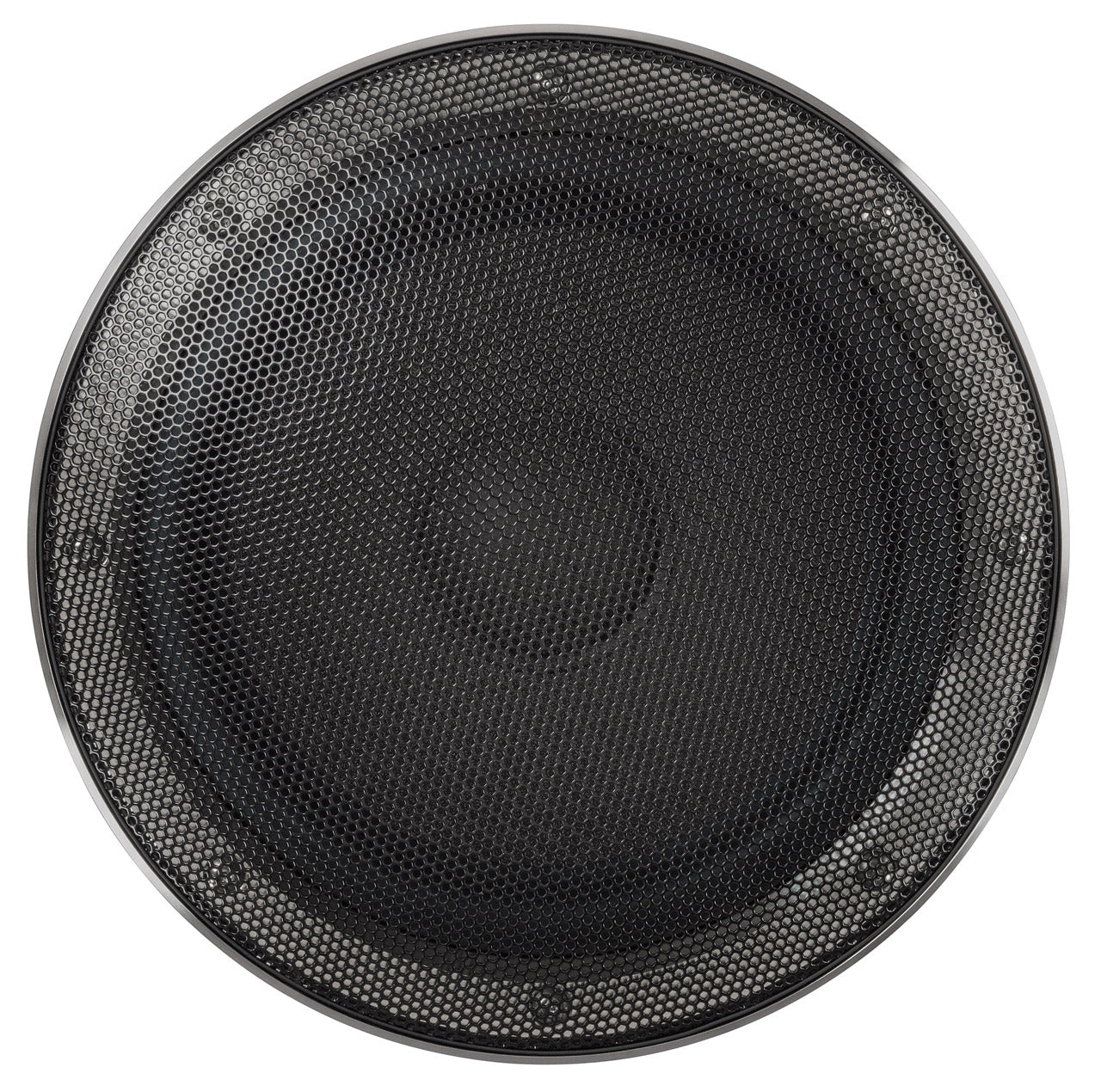

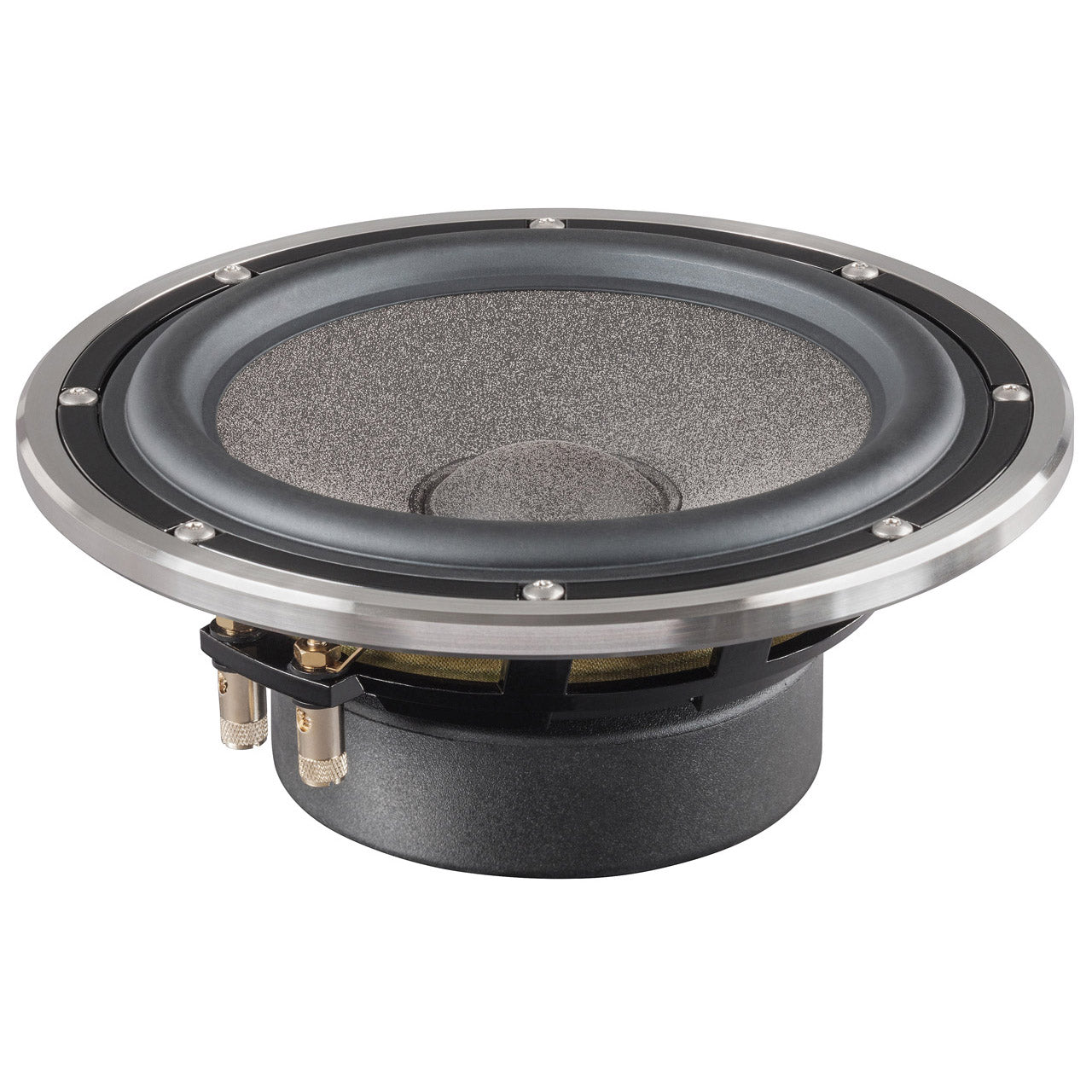

The ML6D is designed to deliver accurate low-frequency performance and is a perfect match for high-end audiophile systems. Each speaker set comes with a unique serial number recorded in our service database. Packaging includes an exclusive wooden box that underscores the premium character of BRAX. An optional stainless steel mounting ring and grill (MR6) is also available.

Features:

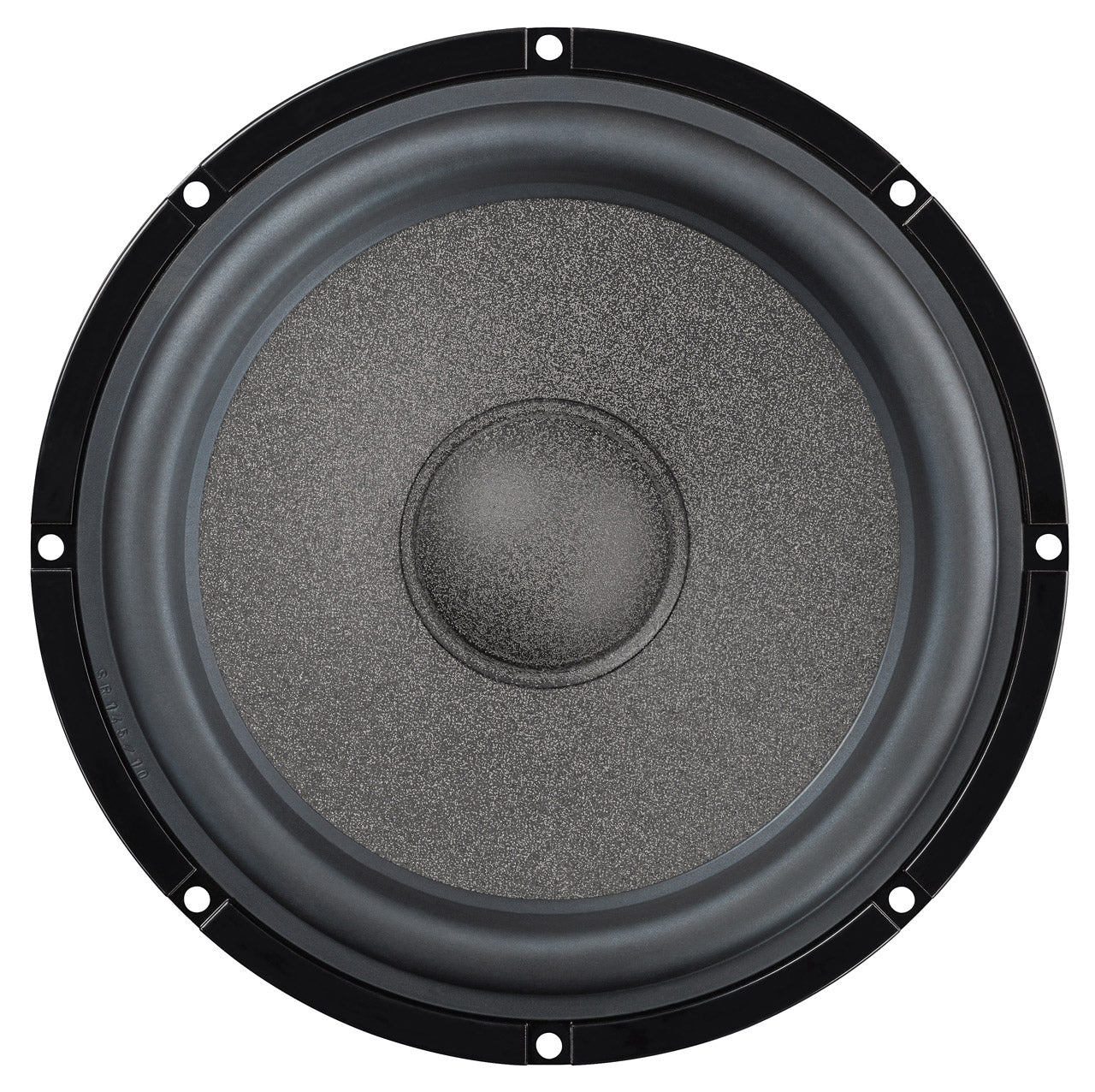

• Ultra-stiff, lightweight paper cone with MicroSphere coating for precise, color-free sound

• Hemispherically shaped dust cap optimizes upper midrange frequency response

• Specially shaped rubber surround for extended linear excursion

• 24-carat gold-plated terminals for maximum conductivity

• Aerodynamically designed aluminum die-cast basket with enhanced voice coil ventilation

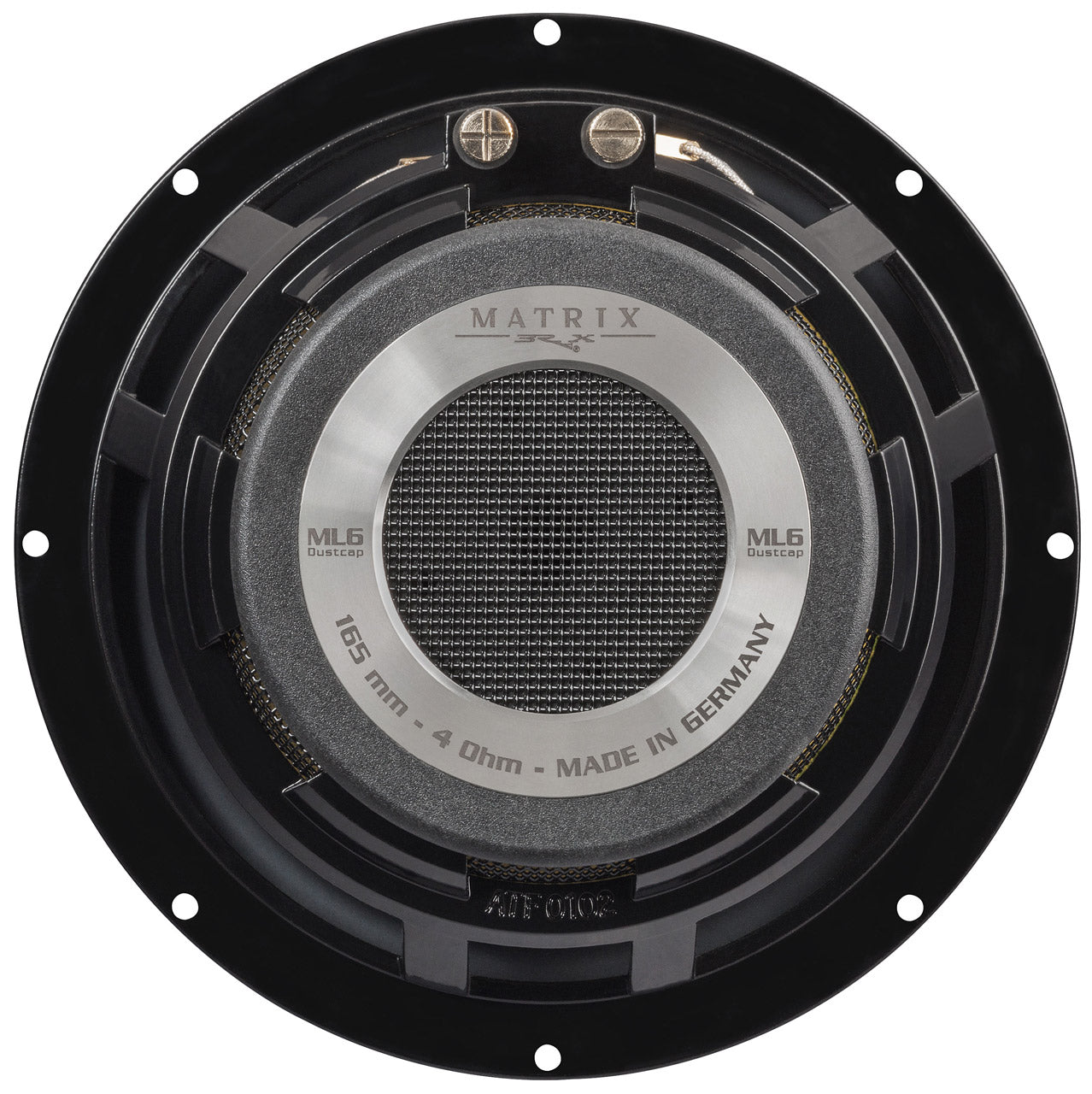

• Precisely machined magnet system for high magnetic flux linearity

Technical Data:

• Power Handling (RMS / Max): 120 / 170 Watts

• Impedance: 4 Ohms

• DC Resistance (Re): 3.6 Ohms

• Frequency Response: 40 Hz – 4,000 Hz

• Resonance Frequency (Fs): 49 Hz

• Mechanical Q (Qms): 6.75

• Electrical Q (Qes): 0.58

• Total Q (Qts): 0.54

• Compliance (Cms): 644 µm/N

• Equivalent Air Volume (Vas): 16.8 L

• Force Factor (B*I): 5.6 Tm

• Efficiency (SPL 1W/1m): 88.0 dB

• Cone Area (Sd): 137 cm²

• Moving Mass (Mms): 16.1 g

• Cone Material: Paper cone with MicroSphere coating

• Mechanical Resistance (Rms): 0.74 kg/s

• Voice Coil Diameter: 37 mm / 1.5"

• Voice Coil Height: 14 mm / 0.6"

• Max Linear Excursion (Xmax): ±4.0 mm

• Outer Diameter: 167 mm / 6.5"

• Installation Diameter: 143 mm / 5.6"

• Installation Depth: 64 mm / 2.5"

Recommended Enclosure Volumes:

Sealed Box:

• Net Volume: 8 L

• Lower Limiting Frequency (-3 dB): 68 Hz

Vented Box:

• Net Volume: 15 L

• Port Diameter: 60 mm / 2.4"

• Port Area: 28 cm²

• Port Length: 19 cm / 7.5"

• Tuning Frequency (Fb): 45 Hz

• Lower Limiting Frequency (-3 dB): 48 Hz

Scope of Delivery:

• 2 x High-End Woofer BRAX MATRIX ML6D

• 1 x Drill

• 1 x High-Quality Screwdriver

• 1 x Set of Stainless Steel Screws

• 1 x Certificate

• 1 x Data Sheet
