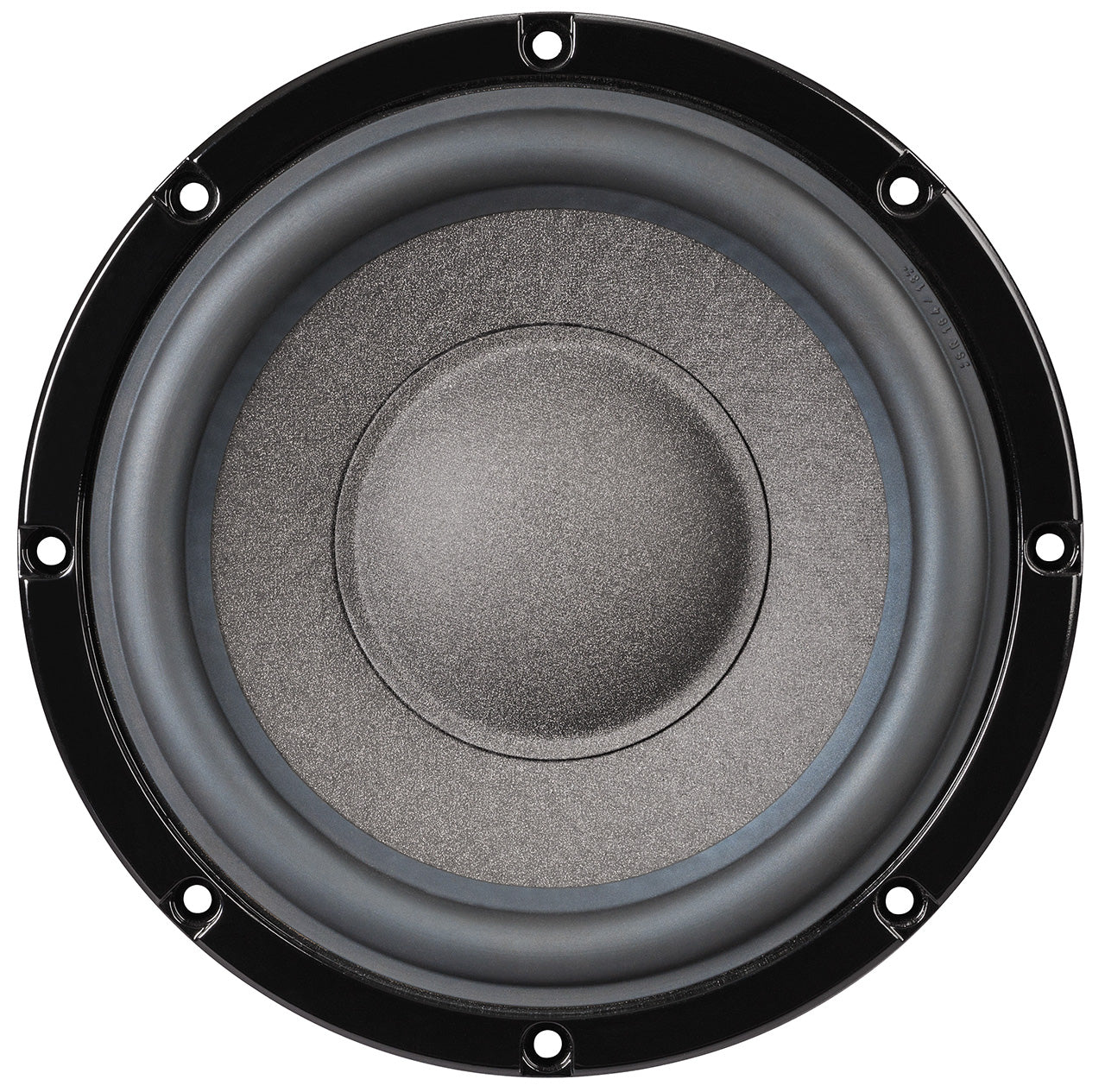

• Brax Matrix ML8 Mid 8" Midwoofer image 0

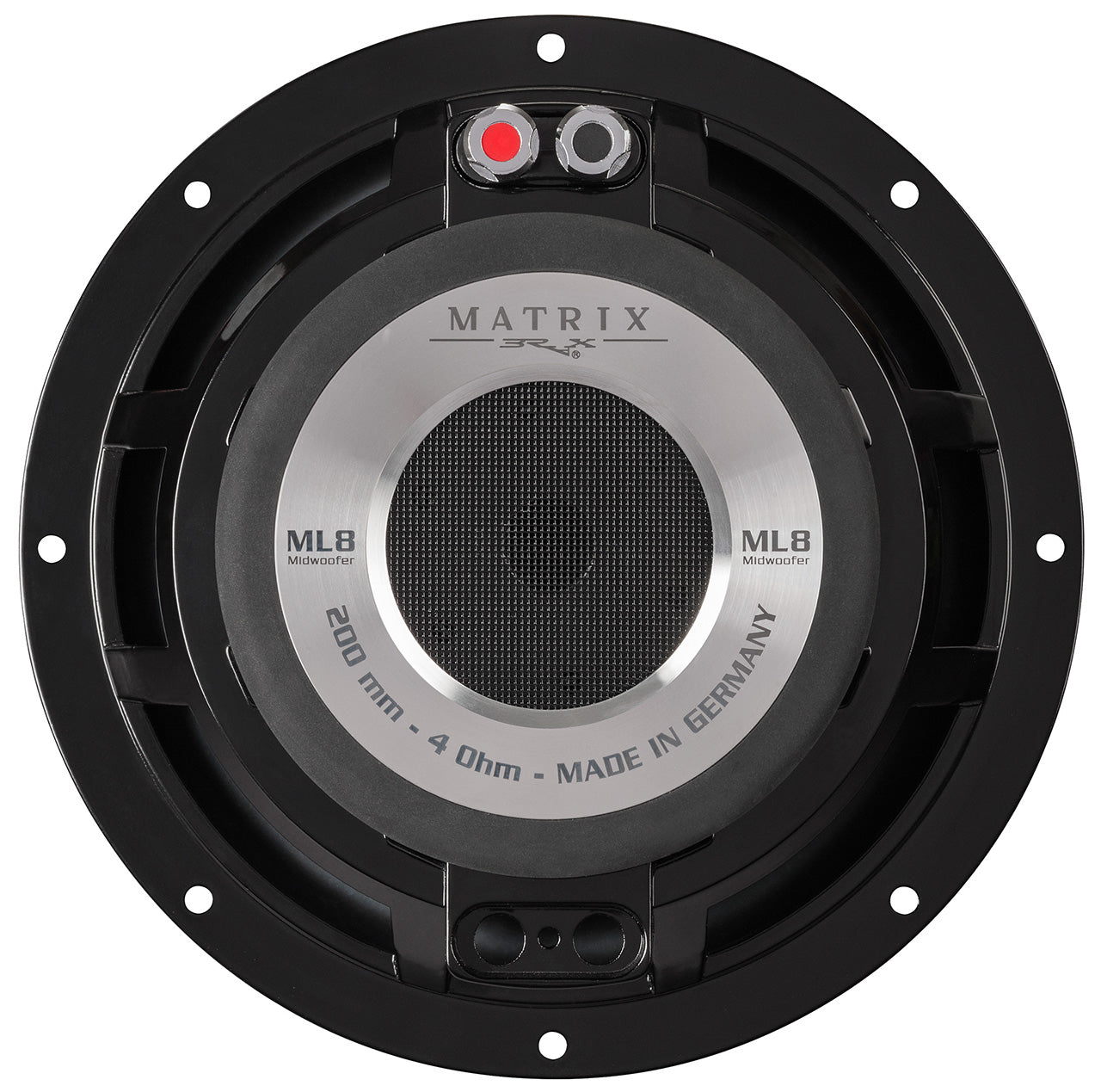

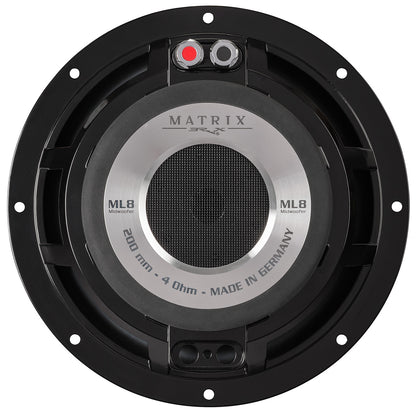

  • Brax Matrix ML8 Mid 8" Midwoofer image 1

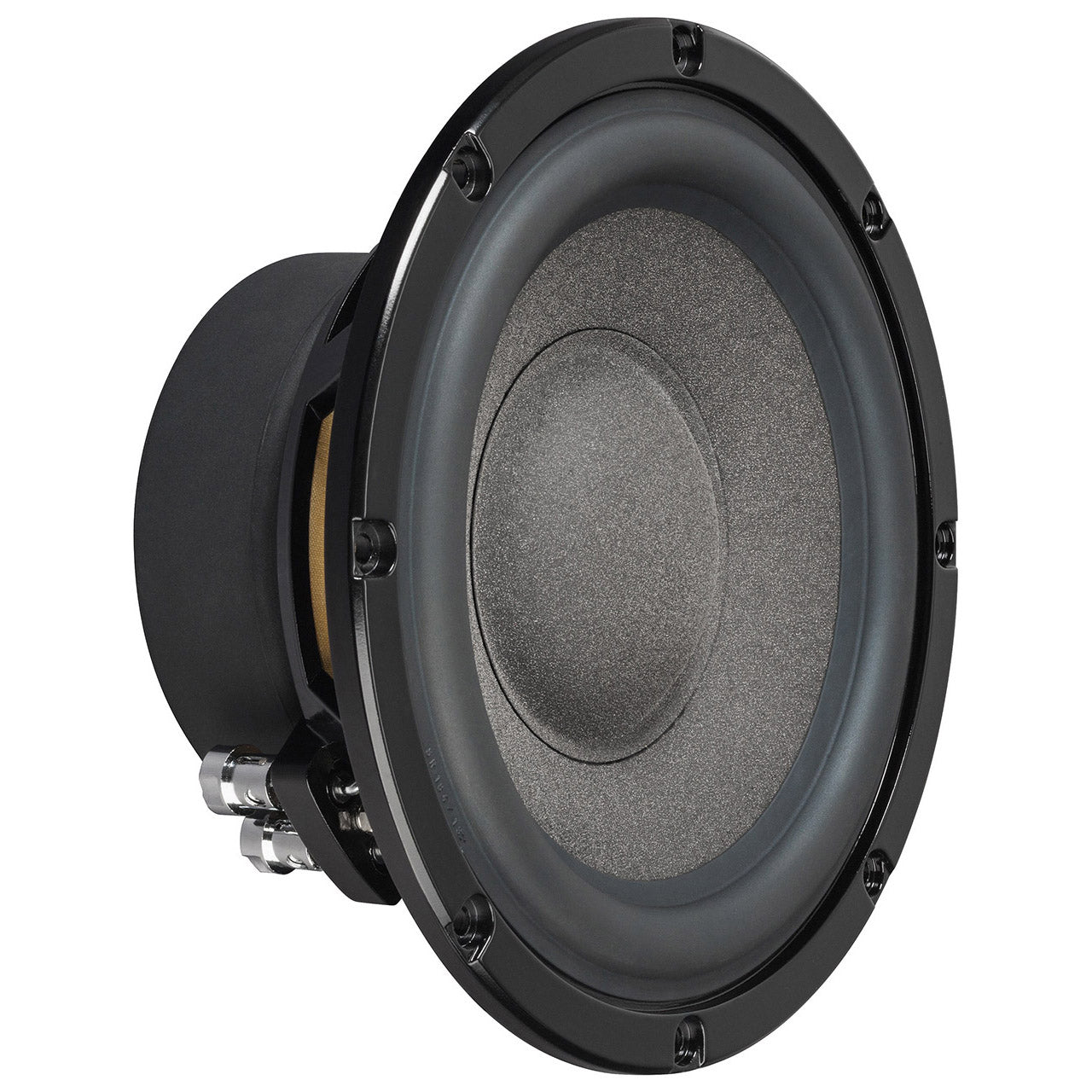

  • Brax Matrix ML8 Mid 8" Midwoofer image 2
1 3

My Store

Brax Matrix ML8 Mid 8" Midwoofer

Brax Matrix ML8 Mid 8" Midwoofer

$3,000.00 AUD
$3,000.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Description

BRAX MATRIX ML8 MID

Uncompromising Engineering for Acoustic Perfection

The legendary BRAX MATRIX loudspeaker series—synonymous with state-of-the-art sound quality for years—has now been expanded with the ML8 MID. Developed and manufactured with the same uncompromising standards as all BRAX loudspeakers, the ML8 MID is built to deliver acoustic perfection.

Made for Ultimate Kickbass Dynamics

For those seeking even greater dynamics than a 165 mm front system can provide, the ML8 MID is the ideal solution. Every detail of this exceptional midwoofer is designed not only for perfect tonality but also to convert extreme amplifier power into uncompressed sound pressure. When paired with the ML10 subwoofer, ML3 midrange, and ML1 tweeter, it completes the dream team—the ultimate in-vehicle sound system.

MicroSphere – A Material That Defies Limits

Combining maximum cone stiffness with high internal damping seems like a paradox. But BRAX achieves this balance with its patented MicroSphere technology. Ceramic micro-hollow spheres, just 75 microns in diameter, are embedded in a polymer layer and applied to the diaphragm. This creates unmatched acoustic precision and exceptional performance in the kickbass and lower midrange frequencies.

Timeless Elegance

The ML8 MID follows the BRAX philosophy of minimalist, elegant design. The combination of premium materials is further enhanced by the optional MR8 stainless steel ring, which can function either as a mounting ring or grille retainer, depending on installation. Each pair is hand-selected, serialized, and packaged in a luxurious wooden box, registered in the BRAX service database.

Features

  • Exceptionally stiff hand-scooped paper cone with MicroSphere coating for precise, uncolored sound

  • Specially shaped rubber surround for long, linear cone excursion

  • Hemispherical dustcap to optimize frequency response in the midrange

  • Large, mesh-protected ventilation holes in T-yoke and basket reduce compression and enhance cooling

  • Aerodynamically optimized, ultra-rigid aluminum die-cast basket

  • Precisely machined magnet system for maximum magnetic flux linearity

  • Massive push terminals accommodate large wire gauges

Technical Specifications

Specification Value
Power Handling (RMS / Max) 200 / 400 Watts
Impedance 4 Ohms
DC Resistance (Re) 3.4 Ohms
Resonance Frequency (Fs) 45 Hz
Mechanical Q Factor (Qms) 12.14
Electrical Q Factor (Qes) 0.61
Total Q Factor (Qts) 0.58
Compliance (Cms) 351 µm/N
Equivalent Air Volume (Vas) 24 L
Force Factor (B·l) 7.40 Tm
Efficiency (1 W / 1 m) 89 dB
Cone Area (Sd) 219 cm²
Moving Mass (Mms) 33.9 g
Cone Material Paper with MicroSphere coating
Mechanical Resistance (Rms) 0.81 kg/s
Voice Coil Diameter 37 mm / 1.5"
Voice Coil Winding Height 18 mm / 0.71"
Max. Linear Excursion (Xmax) ±6 mm
Outer Diameter 222 mm / 8.7"
Installation Diameter 191 mm / 7.5"
Installation Depth 92 mm / 3.6"

Recommended Enclosure Volumes

Sealed Box

  • Net Volume: 15 L

  • Lower Limiting Frequency (-3 dB): 60 Hz

Vented Box

  • Not recommended

Scope of Delivery

  • 2 × High-End Midwoofer BRAX MATRIX ML8 MID

  • 1 × Certificate

  • 1 × Data Sheet
