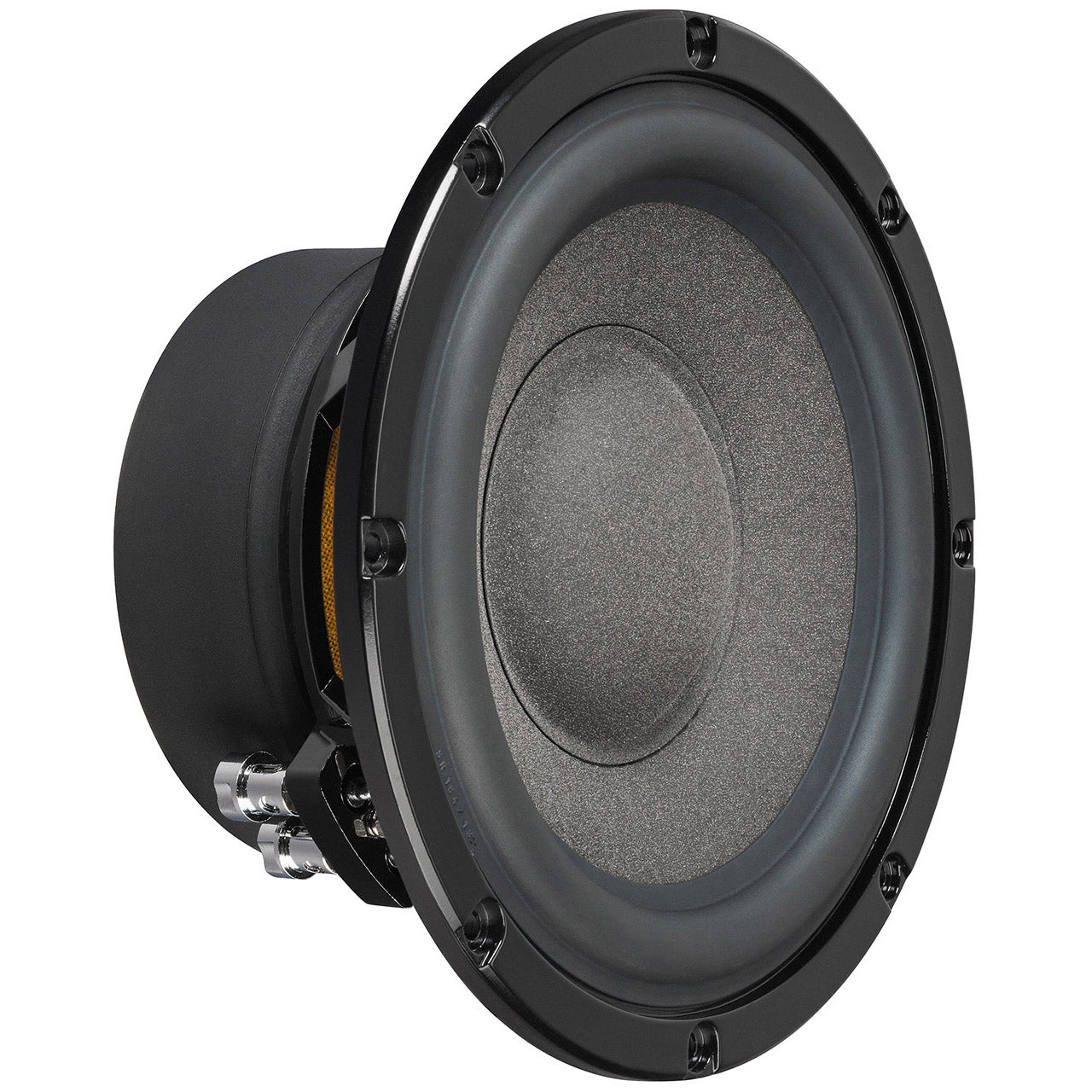

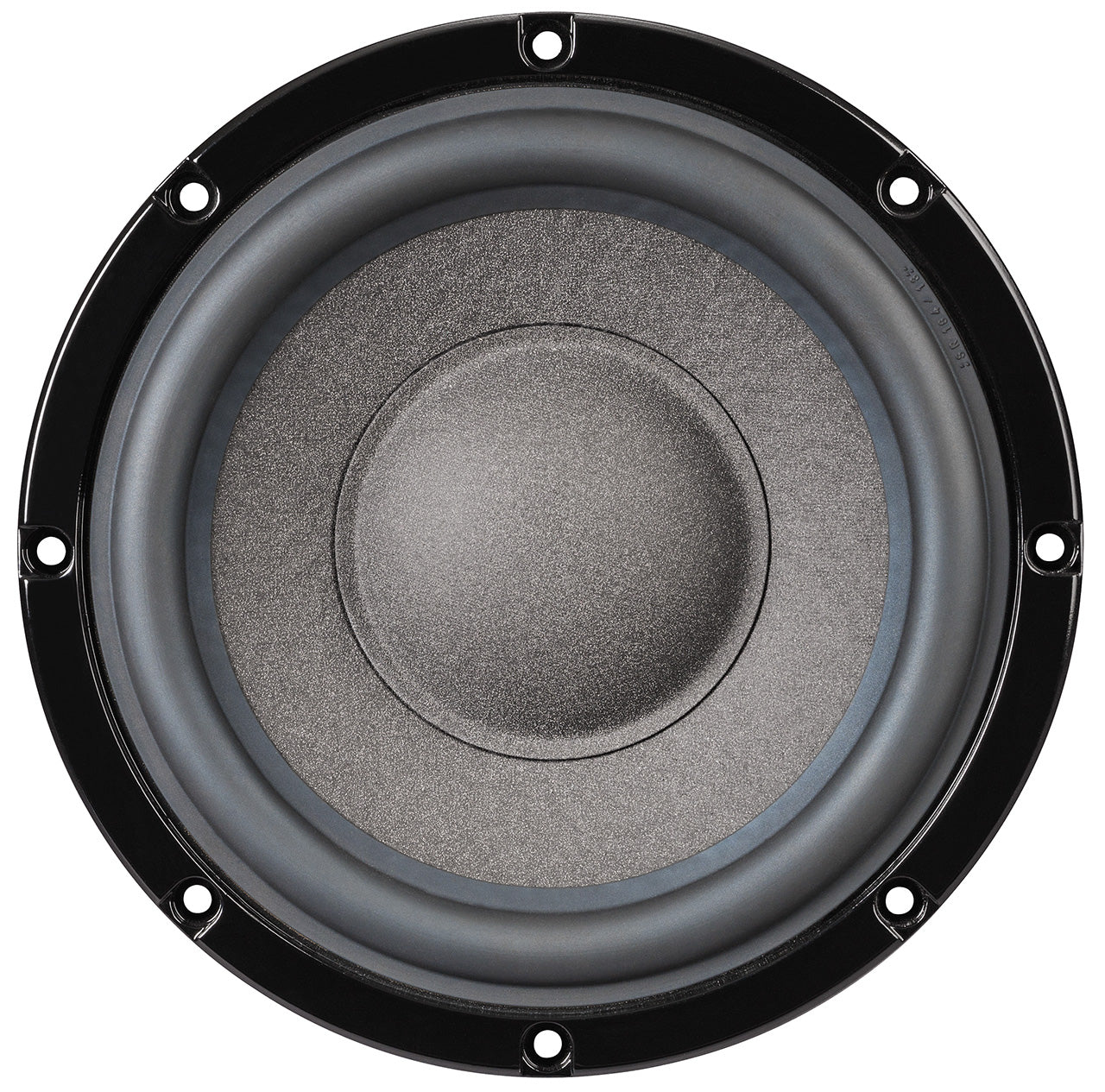

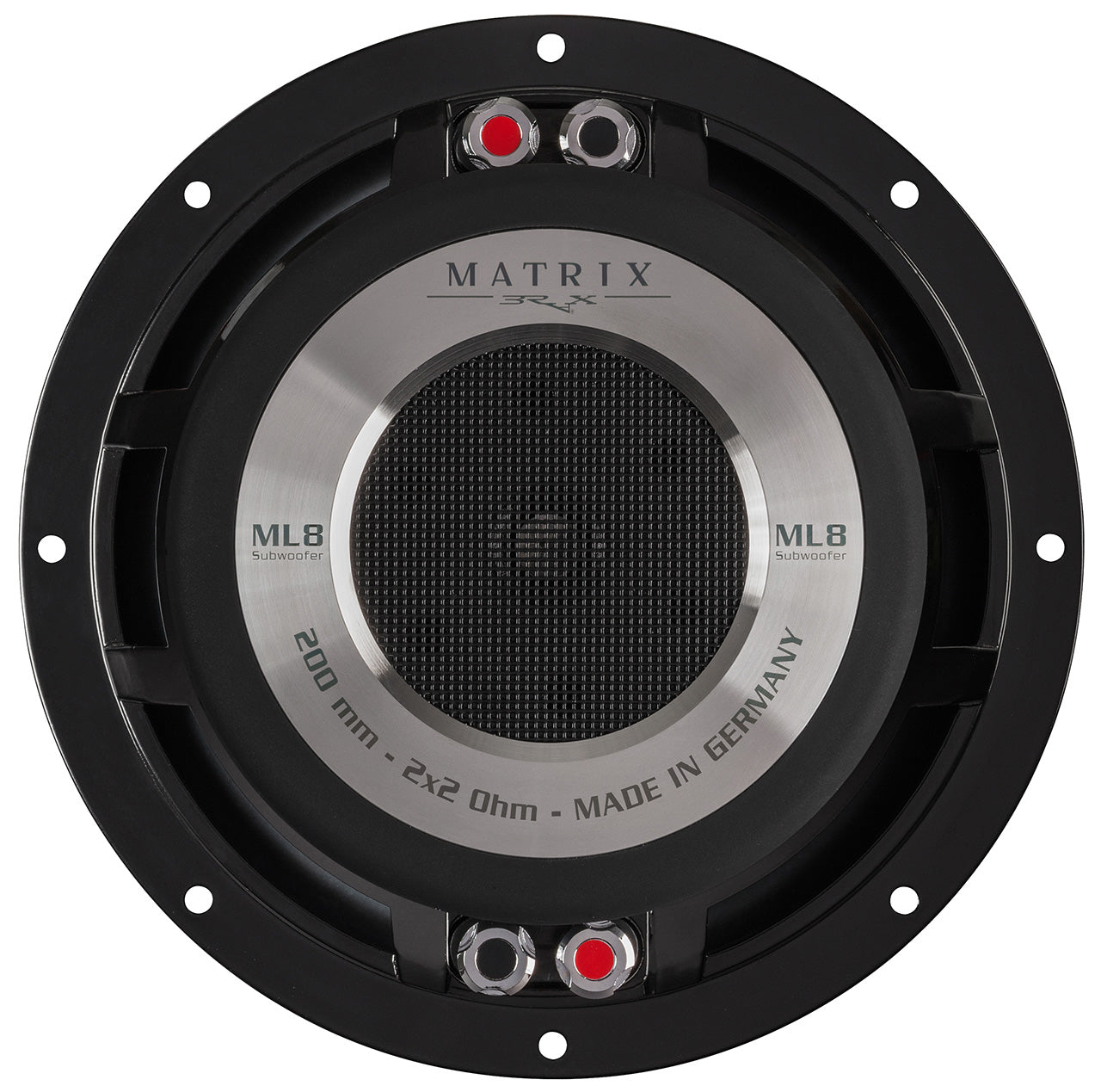

Brax Matrix ML8 Sub 8" Subwoofer

Brax Matrix ML8 Sub 8" Subwoofer

$2,100.00 AUD
$2,100.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Description

BRAX MATRIX ML8 SUB

Precision in Perfection

The legendary BRAX MATRIX loudspeaker series—long synonymous with state-of-the-art sound quality—is now expanded with the ML8 SUB. Developed and manufactured uncompromisingly like all BRAX loudspeakers, it pursues the goal of acoustic perfection.

For years, the BRAX subwoofer has been the benchmark for precision and controlled bass reproduction. The ML8 SUB pushes boundaries further by delivering deep, powerful bass even in the smallest enclosures. Every component is engineered for dynamic performance and perfect tonality, designed to convert massive amplifier power into distortion-free sound pressure without compression.

MicroSphere – Balancing Stiffness and Damping

Achieving maximum cone stiffness along with high internal damping may seem impossible—but the unique MicroSphere coating makes it real. Ceramic micro-hollow spheres, only 75 microns in diameter, are embedded in a polymer layer applied to the diaphragm, delivering unmatched acoustic precision and sound quality.

Timeless Elegance

BRAX products are known for their clear and minimalist design language, and the ML8 SUB follows this philosophy flawlessly. The finest materials are highlighted by the optionally available MR8 stainless steel ring, usable as a mounting ring or grille retainer depending on installation. The subwoofer is presented in a noble wooden box, each unit individually serial-numbered and registered in the BRAX service database.

Features

  • Exceptionally stiff hand-scooped paper cone with unique MicroSphere coating for optimal impulse response

  • Specially shaped rubber surround for long, linear cone excursion

  • Dual 2-Ohm voice coils with exceptional winding height for high excursion and low distortion

  • Optimized voice coil ventilation through large, mesh-protected holes in T-yoke and basket for minimal compression and maximum heat dissipation

  • Aerodynamically optimized, extremely solid aluminum die-cast basket

  • Powerful, precisely machined magnet system for excellent magnetic flux linearity

  • Massive push-terminals supporting large wire gauge

Technical Specifications

Specification Value
Power Handling (RMS / Max) 400 / 800 Watts
Impedance 2 x 2 Ohms
DC Resistance (Re) 2 x 1.9 Ohms
Resonance Frequency (Fs) 32 Hz
Mechanical Q Factor (Qms) 9.63
Electrical Q Factor (Qes) 0.60
Total Q Factor (Qts) 0.56
Compliance (Cms) 323 μm/N
Equivalent Air Volume (Vas) 22 L
Force Factor (B*l) 10.3 Tm
Sensitivity (1 W / 1 m) 85 dB
Cone Area (Sd) 219 cm²
Moving Mass (Mms) 83 g
Cone Material Paper cone with MicroSphere coating
Mechanical Resistance (Rms) 1.67 kg/s
Voice Coil Diameter 50 mm / 2.0"
Voice Coil Winding Height 26.4 mm / 1.0"
Max. Linear Excursion (Xmax) ±9.2 mm
Outer Diameter 222 mm / 8.7"
Installation Diameter 191 mm / 7.5"
Installation Depth 95.6 mm / 3.8"

Recommended Enclosure Volumes

Sealed Box

Enclosure Size Net Volume Lower Limiting Frequency (-3 dB) DSP Highpass Filter Setting
Optimal 17 L 43 Hz Frequency: 32 Hz, Q-Factor: 1.0, Characteristic: Self-define
Minimal 10 L 48 Hz Frequency: 35 Hz, Q-Factor: 1.0, Characteristic: Self-define

Note: These volumes refer to unfilled enclosures without damping material. Volume can be reduced by filling with appropriate materials:

  • Polyester wadding reduces volume by up to 5%

  • Mineral wool or rock wool reduces volume by up to 10%

  • Sheep wool reduces volume by up to 20%

Important: Damping vented enclosures (used below 150 Hz) is generally counterproductive as it reduces the effectiveness of the bass reflex port.

Vented Box

  • Not applicable / not recommended for this model

Scope of Delivery

  • 1 x High-End Subwoofer: BRAX MATRIX ML8 SUB

  • 1 x Certificate

  • 1 x Data Sheet
