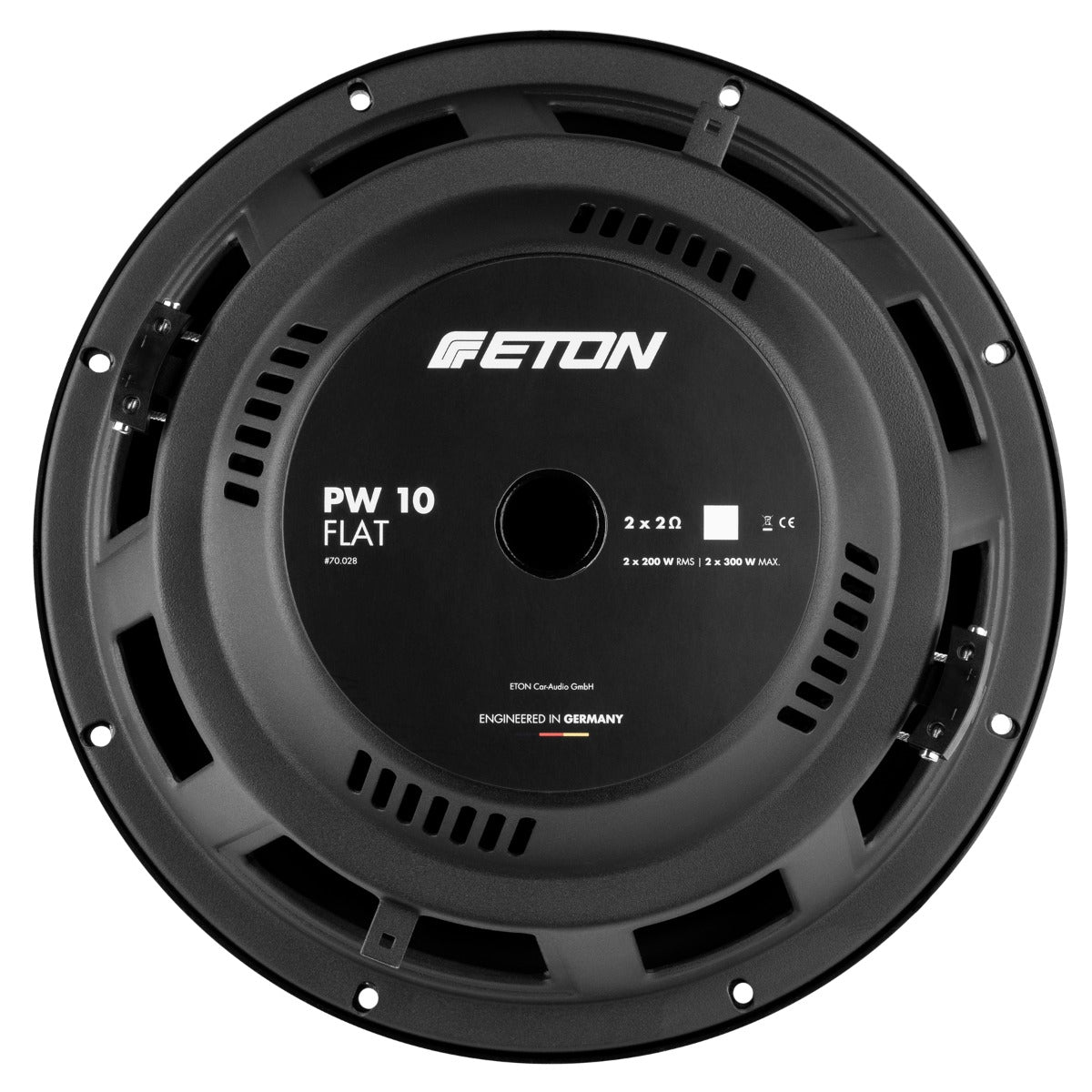

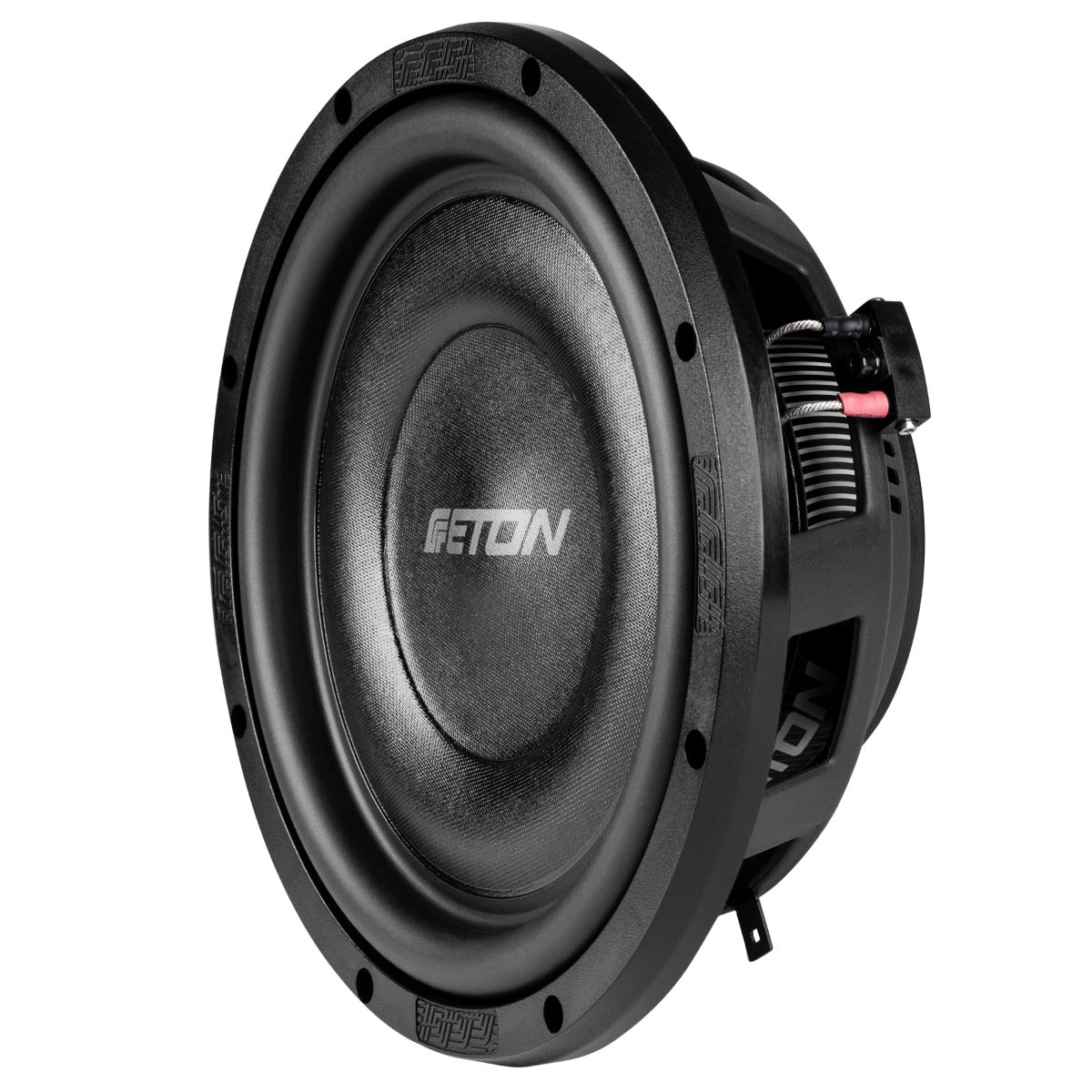

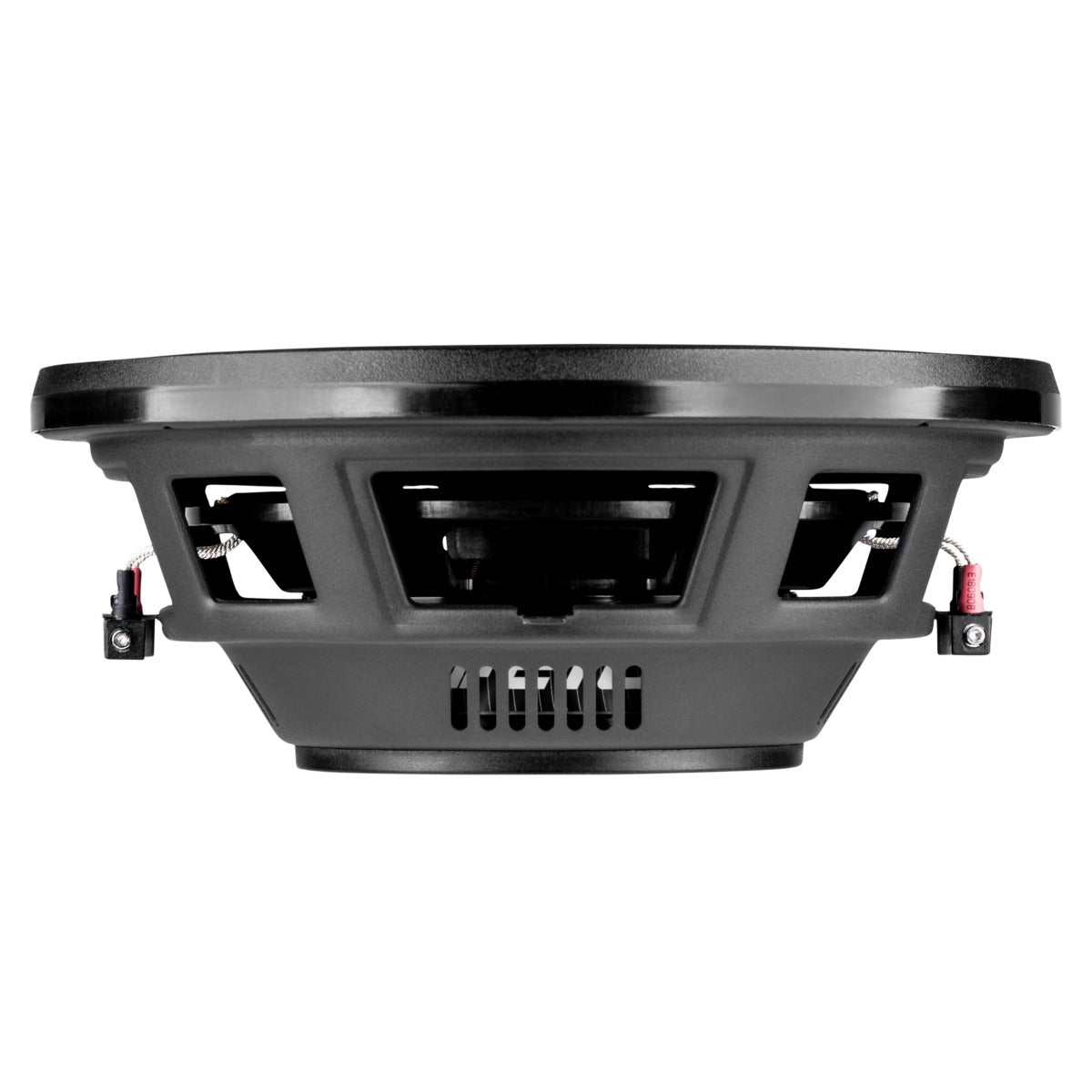

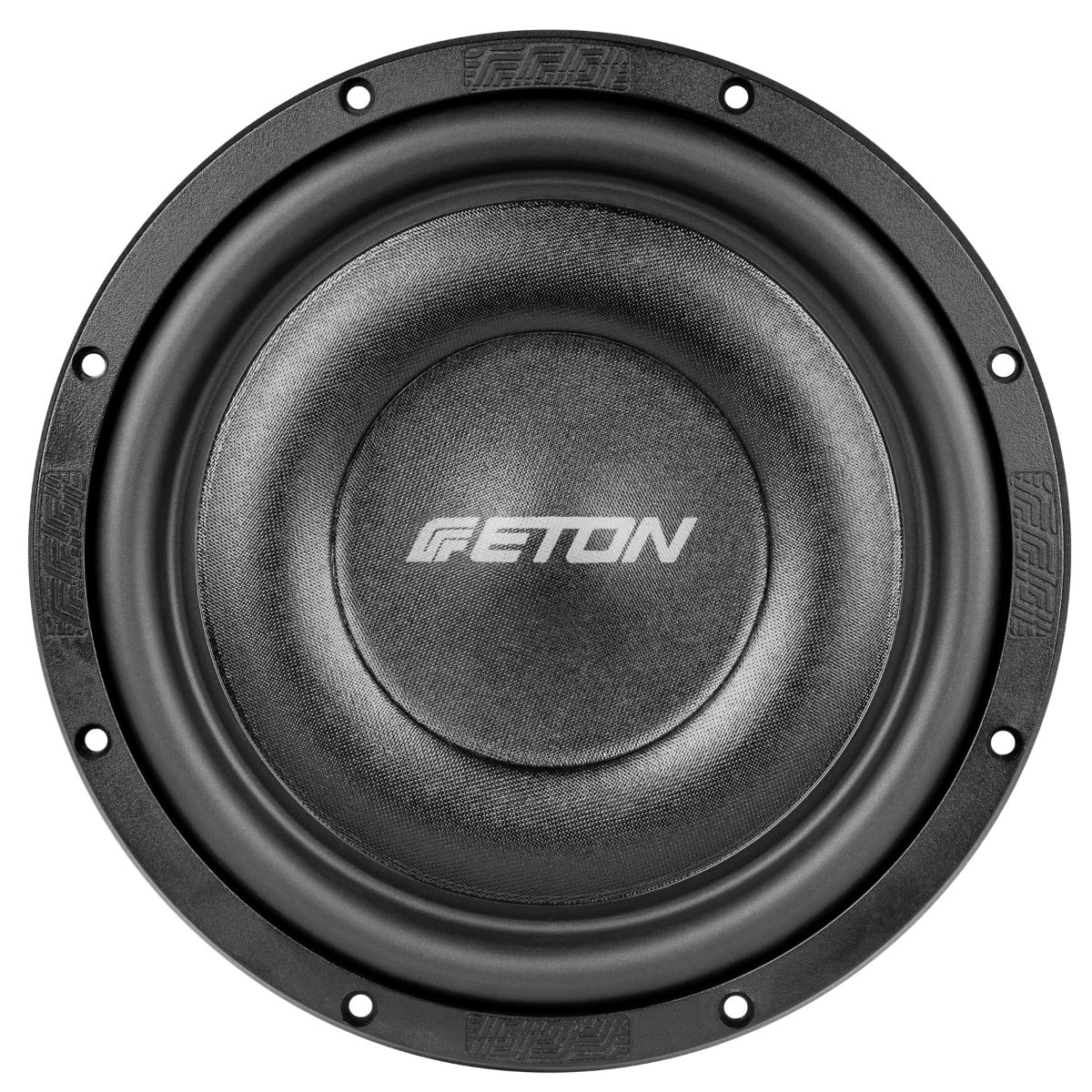

Eton PW 10 Flat Subwoofer this includes our specific subwoofer box
Enhance your car audio with the Eton PW 10 Flat Subwoofer, a compact 10-inch subwoofer designed for powerful bass in tight spaces. Engineered in Germany with an installation depth of just 84mm (3.31 inches), this flat subwoofer delivers 400W RMS and 600W music power, ideal for vehicle upgrades as of 06:35 PM AEST, Thursday, August 14, 2025.
Key Features of the Eton PW 10 Flat
- Ultra-Shallow Design: 84mm installation depth for easy integration.
- Dual Voice Coil: 2 x 2 Ohm configuration for flexible wiring options.
- Pressed Paper Cone: Offers durability and rich bass response.
- Ferrite Magnet: Provides strong magnetic force for powerful output.
- Torsion-Resistant Basket: Ensures structural stability under high excursion.
- Ventilated Voice Coil: Enhances heat dissipation for reliability.
Specifications Table
| Specification | Details |
|---|---|
| Size | 10 inches (250 mm) |
| Voice Coil Type | Dual Voice Coil (DVC) |
| Impedance | 2 x 2 Ohms |
| Power Handling (RMS) | 400W (2 x 200W) |
| Power Handling (Music) | 600W (2 x 300W) |
| Sensitivity (1W/1m) | 84 dB |
| Frequency Response | 39.9 Hz - (upper limit not specified) |
| Xmax | +/- 26.0 mm |
| Mounting Depth | 84 mm (3.31 inches) |
| Mounting Diameter | 234 mm (9.21 inches) |
| Cone Material | Pressed, Air-Dried Paper |
| Surround Material | Long Excursion Rubber |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 50 mm (2 inches) |
| Recommended Enclosure Volume | 14L - 20L (Sealed), 16L - 20L (Ported) |
| Weight | 4.14 kg (9.13 lbs) |
| Grille Included | Not specified |
