HELIX AMPLIFY 201 Direct 750 watt Mono

HELIX AMPLIFY 201 Direct 750 watt Mono

Regular price $595.00 AUD
Regular price Sale price $595.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

  • moHELIX AMPLIFY 201 X-OVER Subwoofer Amplifier

    Boost your car audio with the HELIX AMPLIFY 201 X-OVER, a high-performance subwoofer amplifier designed for powerful bass and precise sound control. Engineered by Audiotec Fischer, this compact Class D amplifier is tailored for subwoofer upgrades in Toyota Hilux and other vehicles, featuring an integrated active crossover and high-level input compatibility as of 04:07 PM AEST, Tuesday, August 12, 2025.

    Key Features of the HELIX AMPLIFY 201 X-OVER

    • High-Efficiency Class D Design: Delivers up to 750W RMS at 1 Ohm withCar Amplifier minimal heat dissipation.
    • Integrated Active Crossover: Includes adjustable lowpass (50 Hz - 250 Hz), subsonic (10 Hz - 50 Hz), and phase (0° - 180°) controls for optimal bass tuning.
    • High-Level Input with ADEP.3: Supports up to 32V RMS input for seamless integration with factory sound systems.
    • Auto Turn-On Function: Activates via music signal, eliminating the need for a separate remote line.
    • Compact Design: Measures 40 x 248 x 114 mm for easy installation in tight spaces.

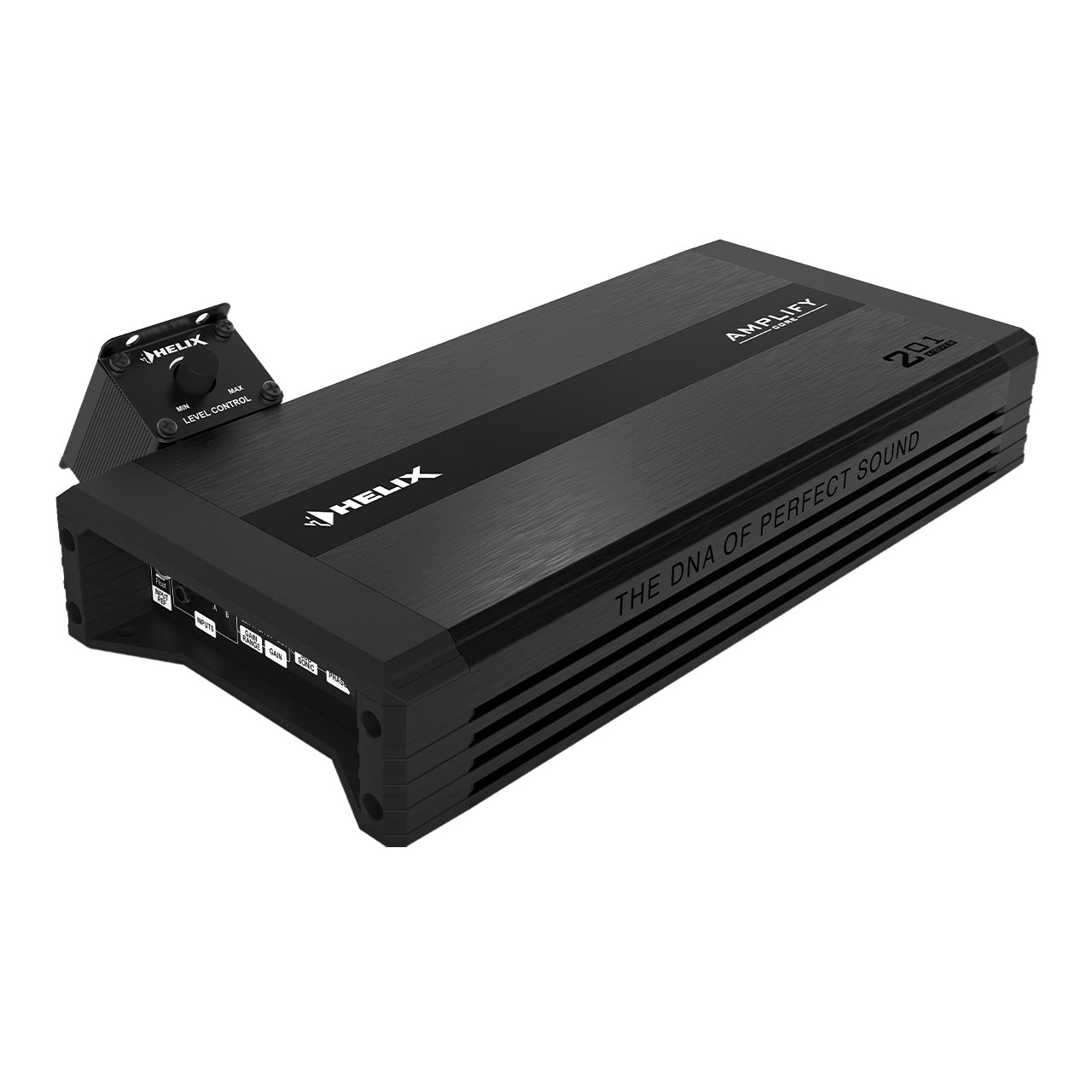

    • Remote Control Included: Allows convenient volume adjustment.

    Specifications Table

    Specification Details
    Amplifier Type Class D Monoblock
    Power Output (RMS) 250W @ 4 Ohms, 450W @ 2 Ohms, 750W @ 1 Ohm
    Power Output (Peak) Up to 850W @ 1 Ohm
    Impedance 1 Ohm Stable
    Frequency Response 10 Hz - 250 Hz
    Signal-to-Noise Ratio 114 dB (A-weighted)
    Total Harmonic Distortion (THD) < 0.003% @ 100 Hz, 1W into 4 Ohms
    Input Sensitivity RCA: 0.5 - 6V, High-Level: 3 - 32V
    Input Impedance RCA: 8 kOhms, High-Level: 9 - 33 Ohms
    Crossover Lowpass: 50 Hz - 250 Hz (12 dB/Oct), Subsonic: 10 Hz - 50 Hz (12 dB/Oct)
    Phase Adjustment 0° - 180° Adjustable
    Operating Voltage 10.5 - 16V (max 5 sec down to 6V)
    Idle Current 1,100 mA
    Fuse Rating 2 x 30A LP-Mini-fuse (APS)
    Dimensions (H x W x D) 40 x 248 x 114 mm (1.58 x 9.76 x 4.49 inches)
    Weight Not specified
    Compatibility Ideal for subwoofer upgrades in modern vehicles
