HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

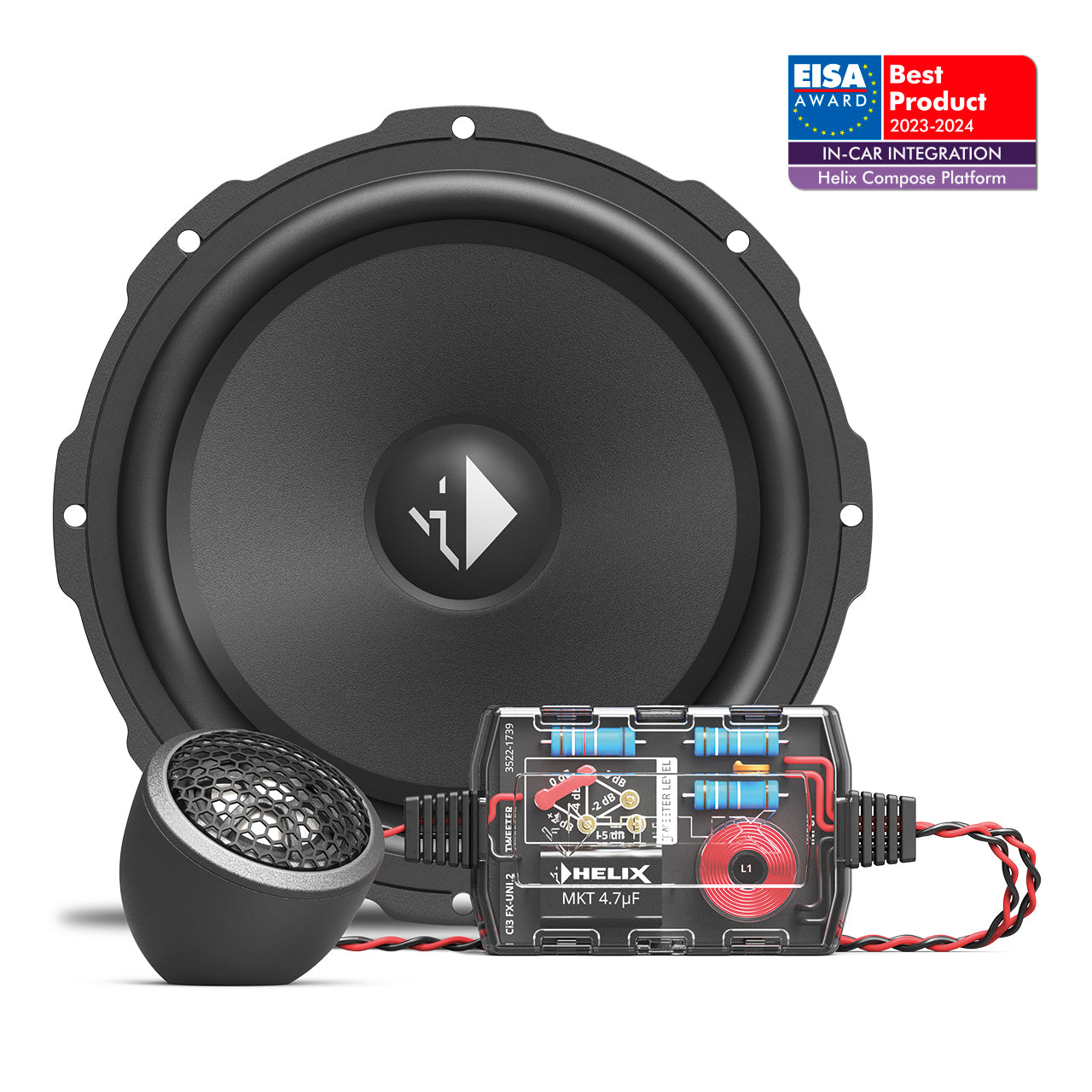

- 2-way performance speaker kit which combines outstanding sound quality with versatile physical integration options
- High efficiency and 3 Ohms technology for maximized power output of the amplifier
- Smart, automotive grade connectors for fail-safe and secure installation – COMPOSE Connect & ProConnect
| Power handling RMS / Max. | P | 100 / 150 Watts |
| Frequency response | 60 Hz - 25,000 Hz | |
| Impedance | Z | 3 Ω |
| Sensitivity | SPL | 92 dB @ 2.83V / 1m 88 dB @ 1W / 1m |
| Outer diameter | ø |
Tweeter: 32.0 mm / 1.26” |
| Installation diameter | ø |
Tweeter: 32.0 mm / 1.26” |
| Installation depth |
Tweeter: 9.8 mm / 0.39” |
|
| Dimensions crossover |
103.3 x 50.4 x 25.0 mm / |
|
| Midbass | ||
| Impedance | Z | 3 Ω |
| DC resistance | Re | 3.0 Ω |
| Resonance frequency | Fs | 70 Hz |
| Mechanical Q factor | Qms | 4.17 |
| Electrical Q factor | Qes | 1.05 |
| Total Q factor | Qts | 0.84 |
| Compliance | Cms | 454 μm/N |
| Equivalent air volume | Vas | 11.2 L |
| Force factor | B*l | 4.0 Tm |
| Cone area | Sd | 133 cm2 |
| Moving mass | Mms | 11.3 g |
| Mechanical resistance | Rms | 1.18 kg/s |
| Voice coil diameter | ø | 25 mm |
|
Voice coil winding height |
10.5 mm | |
| Max. linear excursion | Xmax | +/- 3.2 mm |
| Tweeter | ||
| Impedance | Z | 4 Ω |
| Resonance frequency | Fs | 1800 Hz |
| Voice coil diameter | ø | 20 mm |
| Features | ||
| Tweeter |
Ultra compact, titanium dome, neodymium magnet and FlexMount20 |
|
| Midbass |
Paper with Cenosphere coating, ProConnect terminal and FlexMount165 |
|
| Crossover |
Tweeter: 12 dB highpass, protection and level adjustment |
|
