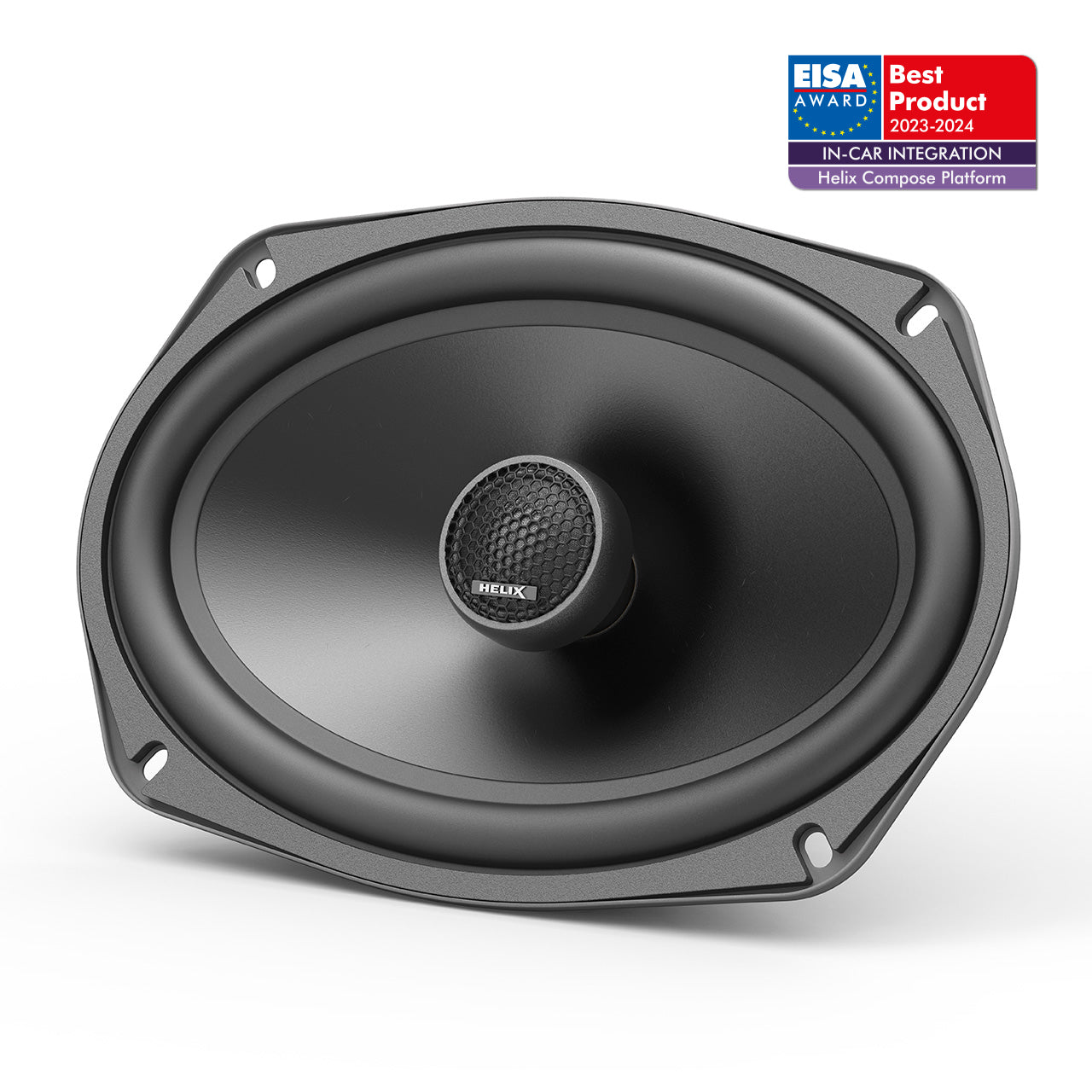

HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.
Product parameters
-
Size: Oval | 6x9"
-
Driver Power | Watts RMS: 100
-
Voice Coil x Impedance: 1 x 3Ω
-
Type: Coaxial | 2 Way
-
Sensitivity 2.83V/1m | dB: 94
-
Installation Depth | mm: 75
Features
- 2-way coaxial speaker system which combines high efficiency with exceptional sound performance
- 3 Ohms technology for maximized power output of the amplifier
- Compact design for trouble-free installation even in cramped conditions
- Tweeter
- 1” / 25 mm tweeter with silk dome for accurate treble response
- Very efficient neodymium magnet for high magnetic flux linearity
- Woofer
- 6 x 9” / 160 x 230 mm woofer with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
- Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
- Powerful magnet system for optimized impulse response
- Crossover
- Integrated with 6 dB slope
Technical Data
| Power handling RMS / Max. |
P |
100 / 150 Watts |
| Frequency response |
|
50 Hz - 22,000 Hz |
| Impedance |
Z |
3 Ω |
| Sensitivity |
SPL |
94 dB @ 2.83V / 1m
90 dB @ 1W / 1m |
| Outer diameter |
ø |
235.0 x 164.0 mm / 9.25 x 6.46” |
| Installation diameter |
ø |
218.4 x 150.6 mm / 8.60 x 5.93” |
| Installation depth |
|
74.8 mm / 2.95” |
|
|
| Woofer |
| Impedance |
Z |
3 Ω |
| DC resistance |
Re |
3.1 Ω |
| Resonance frequency |
Fs |
56 Hz |
| Mechanical Q factor |
Qms |
3.73 |
| Electrical Q factor |
Qes |
0.63 |
| Total Q factor |
Qts |
0.54 |
| Compliance |
Cms |
420 μm/N |
| Equivalent air volume |
Vas |
24.7 L |
| Force factor |
B*l |
5.7 Tm |
| Cone area |
Sd |
205 cm2 |
| Moving mass |
Mms |
19.1 g |
| Mechanical resistance |
Rms |
1.81 kg/s |
| Voice coil diameter |
ø |
25 mm |
|
Voice coil winding height
|
|
9.0 mm |
| Max. linear excursion |
Xmax |
+/- 2.0 mm |
| |
|
Tweeter |
| Voice coil diameter |
ø |
25 mm |
| |
|
Features |
| Tweeter |
|
Silk dome and neodymium magnet |
| Midbass |
|
Injected polypropylene cone
|
| Crossover |
|
Integrated, 6 dB highpass |
