HELIX COMPOSE. The perfect speaker for any composition.
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto "developed inside the vehicle, for the vehicle", combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.
Product parameters
-
Size: 165mm | 6.5"
-
Driver Power | Watts RMS: 80
-
Voice Coil x Impedance: 1 x 3Ω
-
Type: Mid Range
-
Sensitivity 2.83V/1m | dB: 92
-
Installation Depth | mm: 61
Features

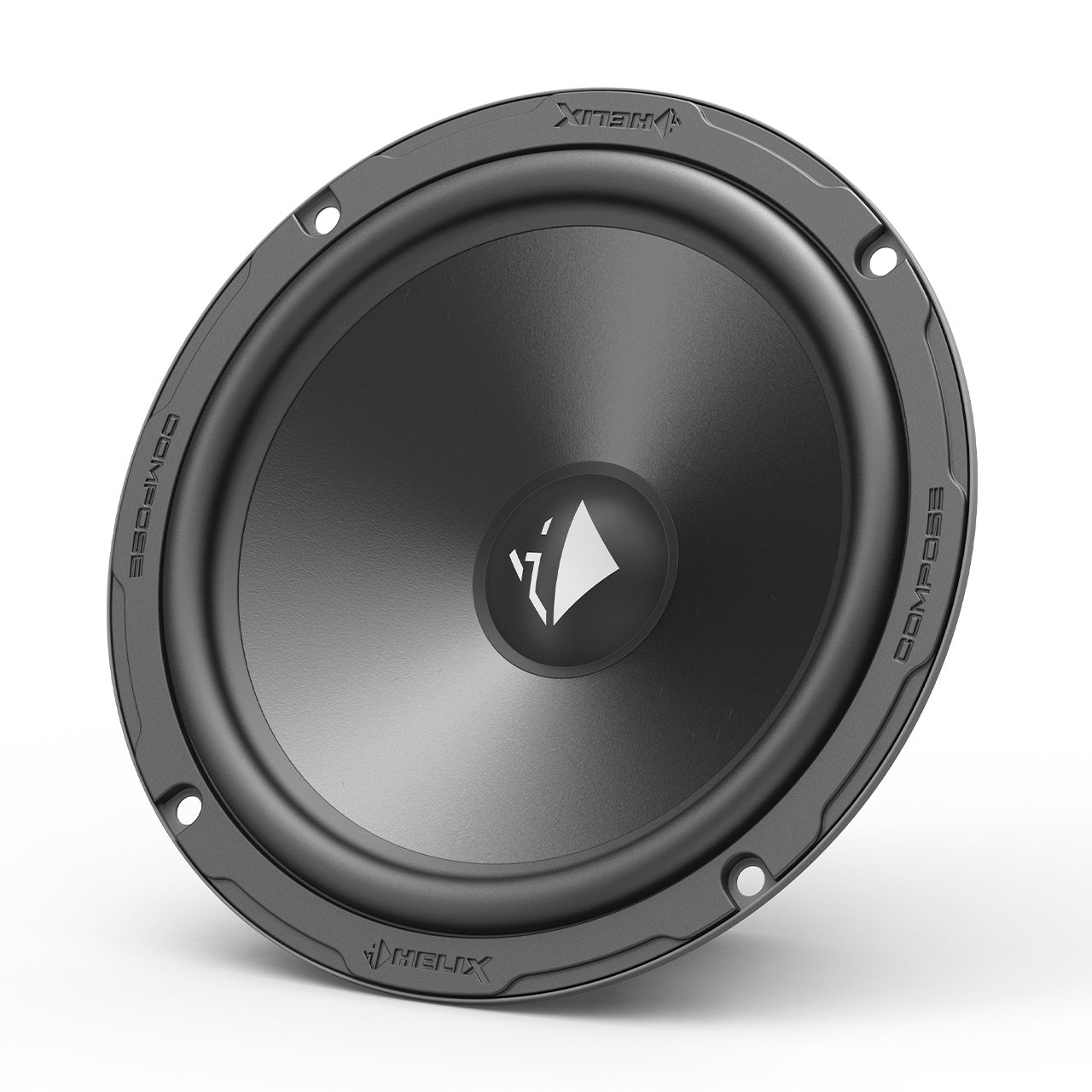

- 6.5” / 165 mm midbass with lightweight polypropylene cone which provides essential stiffness for exceptional sound performance
- 3 Ohm technology for maximized power output of the amplifier
- Specially shaped rubber surround for larger effective cone area and increased maximum excursion
- Sturdy steel basket with additional ventilation holes for better voice coil cooling and high power handling
- Powerful magnet system for optimum impulse control
- Polyurethane dustcap for optimized frequency response in the upper midrange area
Technical data
| Power handling RMS / Max. |
P
|
80 / 120 Watts |
| Impedance |
Z |
3 Ω |
| DC resistance |
Re |
3.0 Ω |
| Frequency response |
|
60 Hz - 3,500 Hz |
| Resonance frequency |
Fs |
62 Hz |
| Mechanical Q factor |
Qms |
4.50 |
| Electrical Q factor |
Qes |
0.90 |
| Total Q factor |
Qts |
0.75 |
| Compliance |
Cms |
520 µm/N |
| Equivalent air volume |
Vas |
14.5 L |
| Force factor |
B*I |
4.1 Tm |
| Sensitivity |
SPL |
92 dB @ 2.83 V / 1m
88 dB @ 1W / 1m |
| Cone area |
Sd |
141 cm² |
| Moving mass |
Mms |
13.2 g |
| Cone material |
|
Injected polypropylene cone |
| Mechanical resistance |
Rms |
1.10 kg/s |
| Voice coil diameter |
ø |
25 mm |
| Voice coil winding height |
|
8.9 mm |
| Max. linear excursion |
Xmax |
+/- 2.5 mm |
| Outer diameter |
ø |
166 mm / 6.54" |
| Installation diameter |
ø |
143 mm / 5.63" |
| Installation depth |
|
61.4 mm / 2.42" |
