AV Concept

Helix Ci7 6.5 inch with crossovers Component speakers

Helix Ci7 6.5 inch with crossovers Component speakers

Regular price $1,840.00 AUD
Regular price Sale price $1,840.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

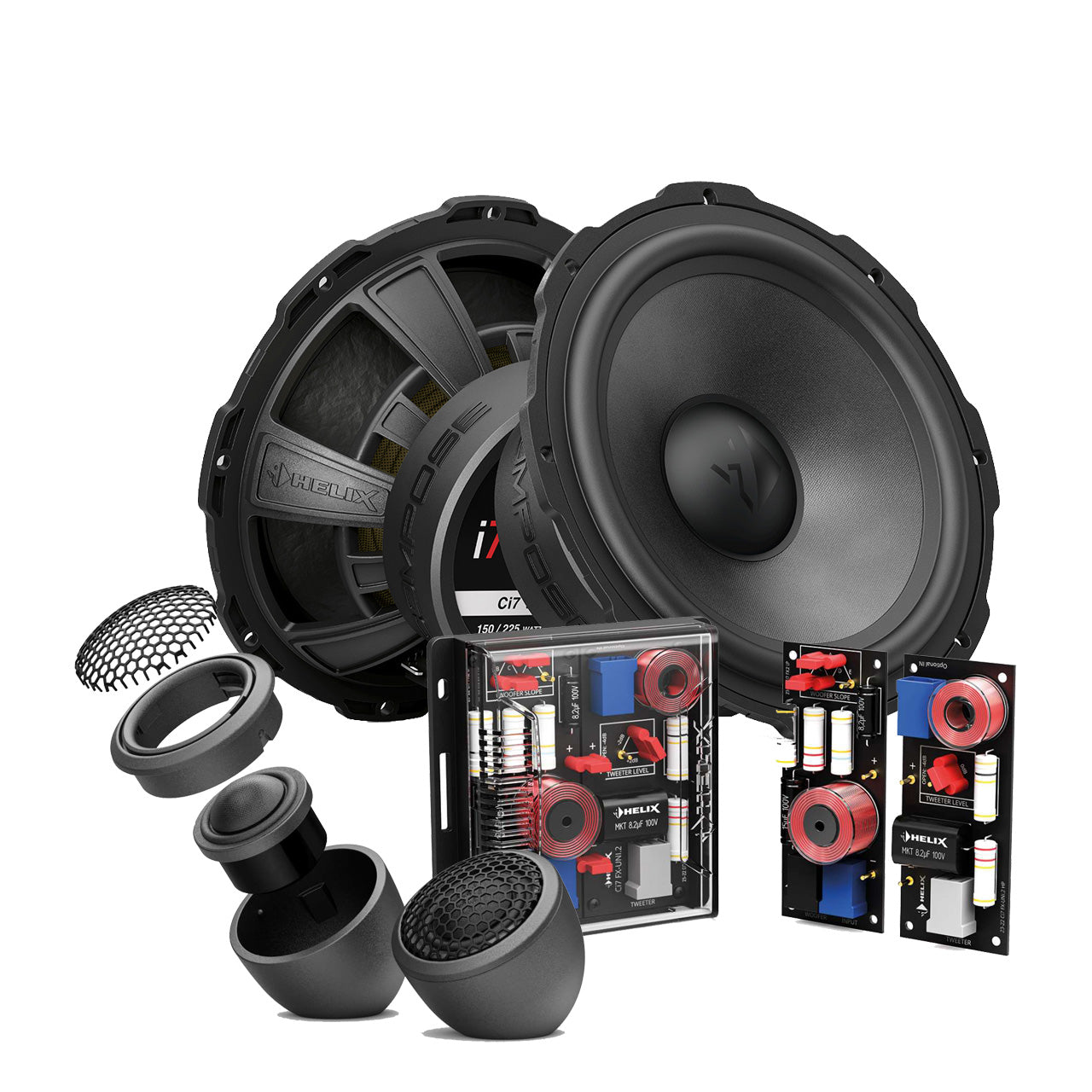

Helix Ci7 T20FM-SC, Ci7 W165-S3, and Ci7 FX-UNI.2 Bundle

Elevate your car audio with the Helix Ci7 Bundle, combining the Ci7 T20FM-SC tweeter, Ci7 W165-S3 midbass driver, and Ci7 FX-UNI.2 crossover for a premium sound experience. Crafted in Germany as part of the COMPOSE i7 series, this high-end audio kit delivers exceptional clarity and power, perfect for vehicle-specific upgrades as of 10:48 AM AEST, Thursday, August 14, 2025.

Key Features of the Helix Ci7 Bundle

  • Ci7 T20FM-SC Tweeter: 0.75-inch silk dome with coupling volume for brilliant treble response.
  • Ci7 W165-S3 Midbass Driver: 6.5-inch high-end driver with UHD paper cone for precise midbass.
  • Ci7 FX-UNI.2 Crossover: 2-way Flex-Crossover with 4-stage tweeter level adjustment for optimal sound tuning.
  • Made in Germany: Ensures superior craftsmanship and quality.
  • COMPOSE Integration: Designed for vehicle-specific compatibility and professional installation.

Specifications Table

Component Details
Ci7 T20FM-SC Tweeter
- Type 0.75-inch (20 mm) Silk Dome
- Impedance 4 Ohms
- Frequency Response 1,500 Hz - 30,000 Hz
- Sensitivity 91 dB @ 2.83V/1m
- Mounting Depth 19 mm (0.75 inches)
Ci7 W165-S3 Midbass
- Size 6.5 inches (165 mm)
- Impedance 3 Ohms
- Power Handling (RMS) 150W
- Frequency Response 50 Hz - 4,000 Hz
- Sensitivity 92 dB @ 2.83V/1m
- Mounting Depth 65.8 mm (2.59 inches)
Ci7 FX-UNI.2 Crossover
- Type 2-Way Flex-Crossover
- Slope 12 dB (High-Pass/Tweeter, Low-Pass/Woofer)
- Tweeter Level Adjustment -4 dB to +2 dB
- Compatibility Ci7 T20FM-SC, Ci7 W165-S3
- Dimensions Not specified
