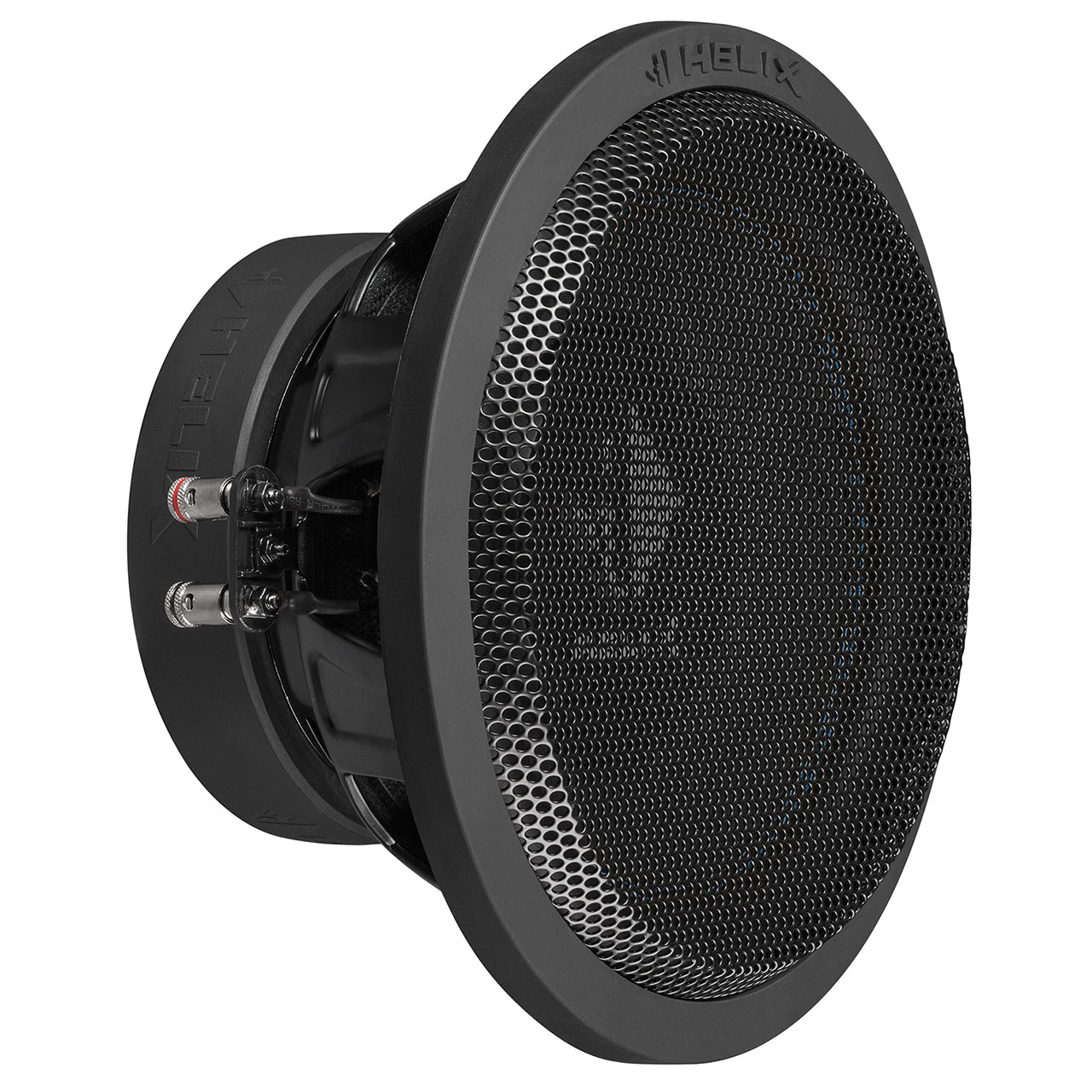

• Helix IK W10 10" Subwoofer image 0

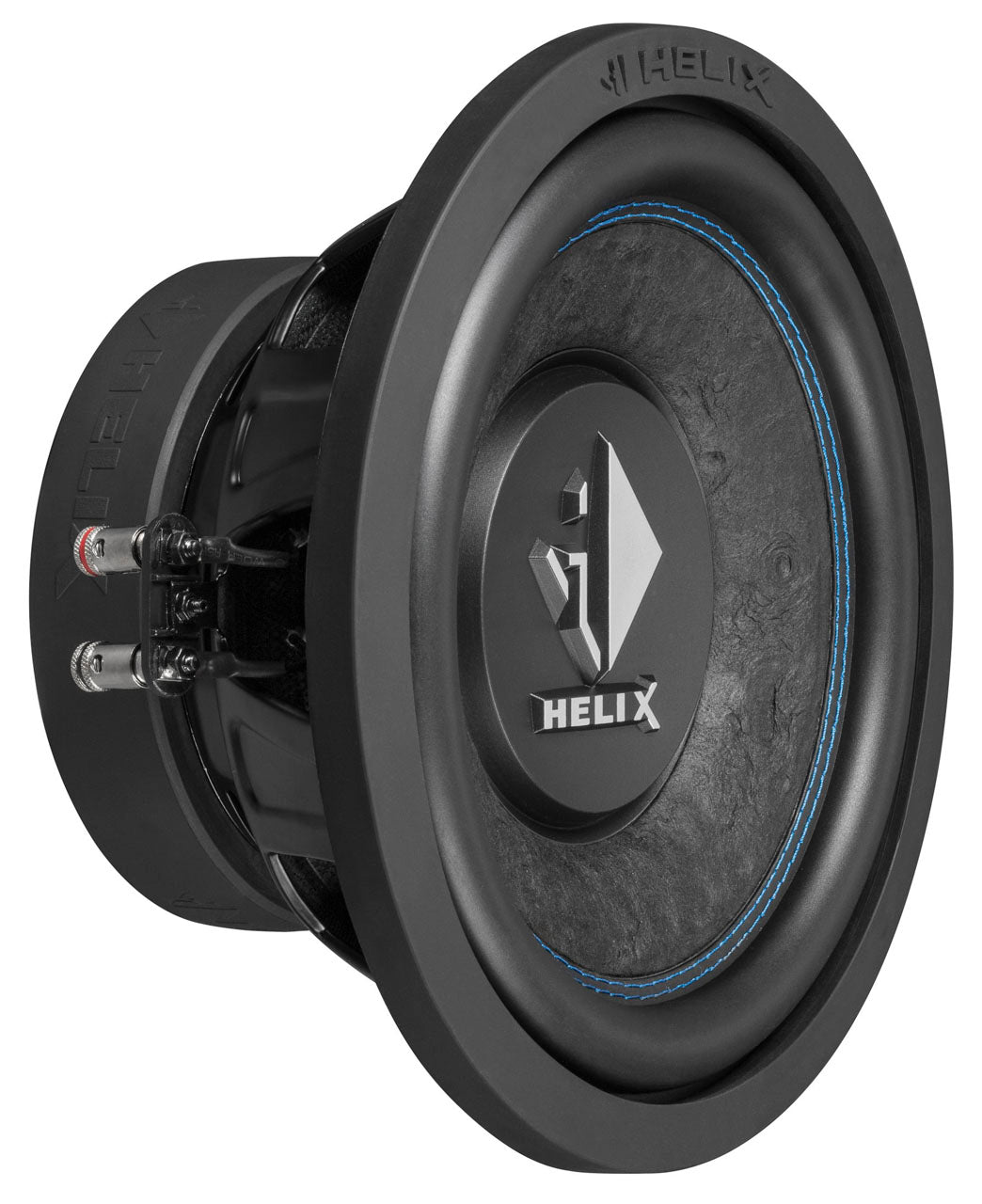

  • Helix IK W10 10" Subwoofer image 1
1 2

My Store

Helix IK W10 10" Dual 2 ohm Subwoofer

Helix IK W10 10" Dual 2 ohm Subwoofer

$495.00 AUD
$495.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

HELIX IK W10 – 10" Dual 2-Ohm Subwoofer

Compact Size, Big Bass Impact
The HELIX IK W10 subwoofer is engineered to deliver stunning bass performance from compact enclosures. With its space-saving design and high-output capabilities, it’s the perfect choice for tight installations that demand powerful low-end response.

Precision-Engineered for Performance
Featuring a rigid, hand-scooped paper cone and a robust magnet system, the IK W10 converts amplifier power into precise, punchy bass without distortion or compression. Its dual 2-ohm voice coils allow flexible wiring options, making it ideal for mono, 2-channel, or multi-channel amplifier setups.

Built for Installers and DIY Enthusiasts
Whether you're building a custom box or integrating into a factory setup, HELIX includes a solid protective grille and gasket. Technical recommendations for sealed or vented enclosures—including volume, tuning frequency, and DSP settings—are also available to help you dial in the perfect sound.

Key Features

  • Dual 2-ohm voice coils for flexible configuration
  • Hand-scooped paper cone for dynamic, accurate bass
  • Dual-ventilated voice coil for improved thermal management
  • Long-excursion rubber surround for maximum output
  • Solid push terminals for secure wiring
  • Compact yet powerful magnet system
  • HELIX-branded magnet cover for protection
  • Grille and gasket included



Parameter Value
Size 250 mm / 10"
Power Handling (RMS / Max) 300 / 600 Watts
Voice Coil Configuration 2 x 2Ω Dual Voice Coil
Voice Coil Diameter 50.8 mm
Voice Coil Winding Height 24 mm
Sensitivity (2.83V/1m) 91 dB
Sensitivity (1W/1m) 88 dB
Impedance 2 x 2Ω
DC Resistance (Re) 2 x 1.6Ω
Resonance Frequency (Fs) 36 Hz
Mechanical Q (Qms) 4.50
Electrical Q (Qes) 0.43
Total Q (Qts) 0.39
Compliance (Cms) 218 μm/N
Equivalent Volume (Vas) 34 Liters
Force Factor (Bl) 12.3 Tm
Cone Area (Sd) 333 cm²
Moving Mass (Mms) 91 g
Mechanical Resistance (Rms) 4.56 kg/s
Max. Linear Excursion (Xmax) ±8.0 mm
Mounting Diameter 232 mm / 9.13"
Outer Diameter 262 mm / 10.31"
Mounting Depth 126 mm / 4.96"
Unit Type Single Driver
Magnet Protection HELIX Magnet Cover
Parameter Value
Net Volume 12 Liters
-3dB Low Frequency Response 53 Hz
Recommended DSP Settings Highpass: 45 Hz / Q = 1.5 EQ Filter: 120 Hz / Q = 1.0 / -3 dB
Parameter Value
Net Volume 19 Liters
Port Diameter 70 mm / 2.76"
Port Area 38 cm²
Port Length 22 cm / 8.66"
Tuning Frequency (Fb) 43 Hz
-3dB Low Frequency Response 43 Hz
Recommended DSP Settings Highpass: 37 Hz / Q = 1.5 EQ Filter: 115 Hz / Q = 0.7 / -2 dB
