Helix IK W12 DVC2 12" Subwoofer

Helix IK W12 DVC2 12" Subwoofer

$550.00 AUD
$550.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

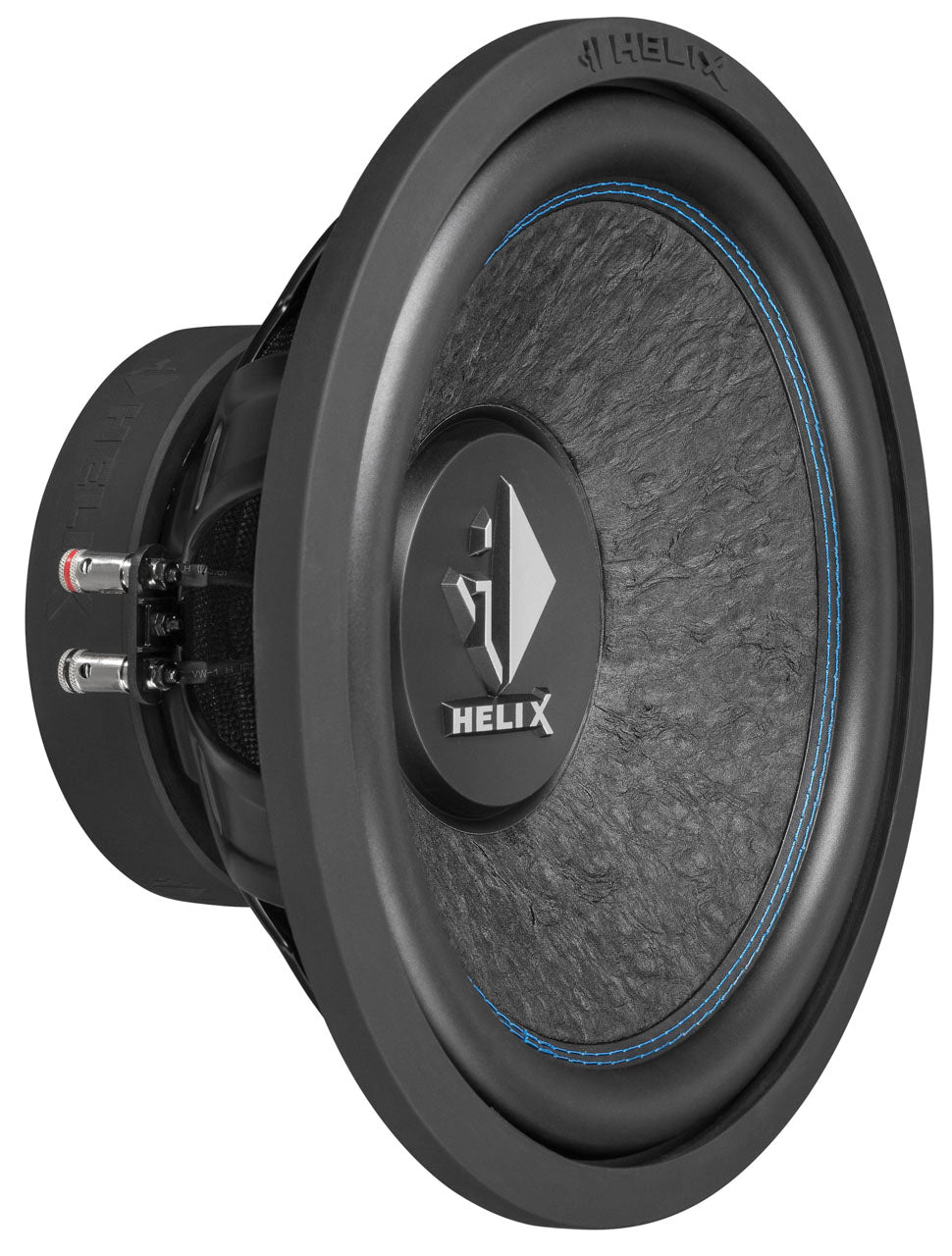

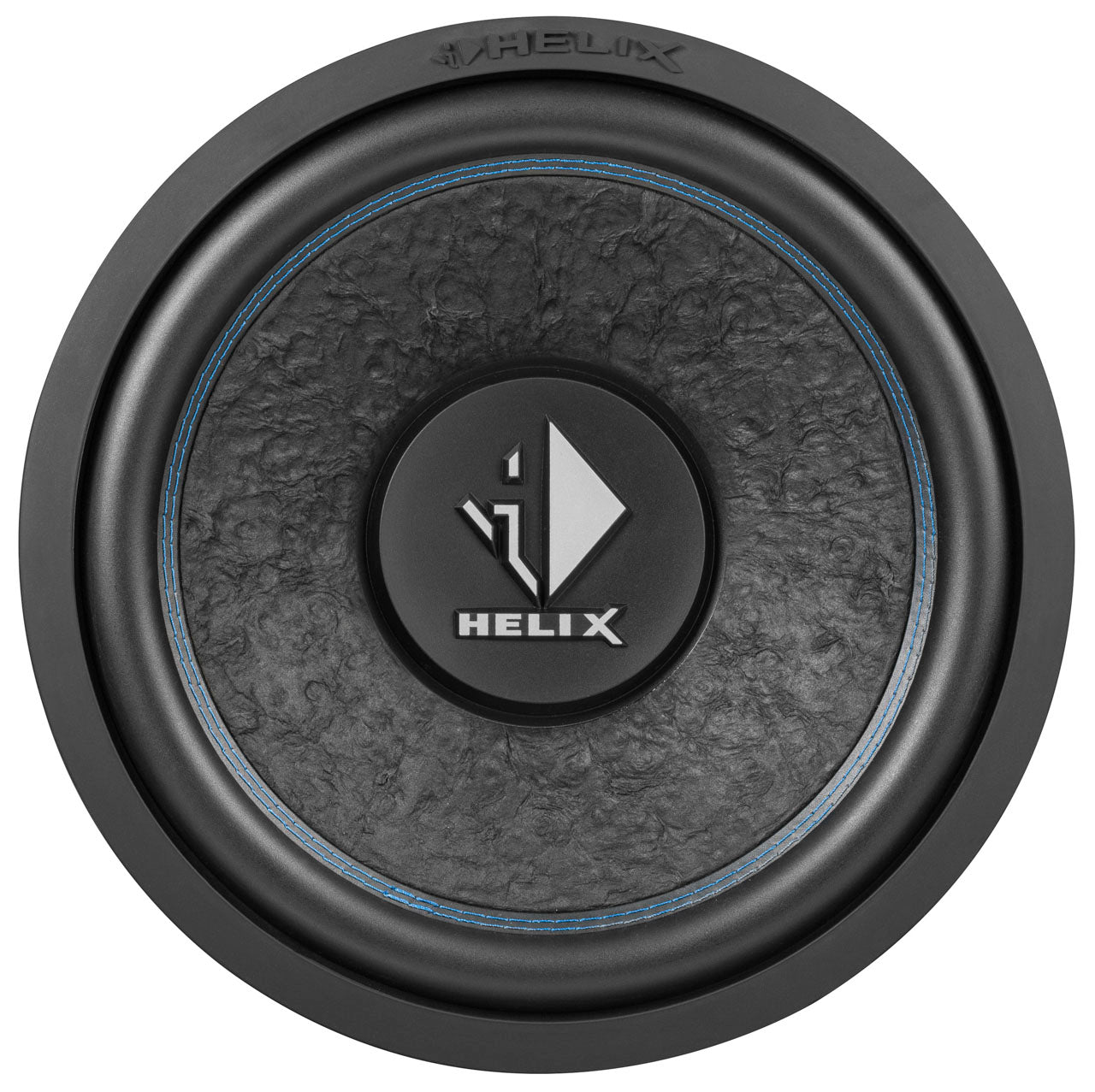

HELIX IK W12 – 12" Dual 2-Ohm Subwoofer

Compact Power. Impactful Performance.

The HELIX IK W12 subwoofer delivers exceptional bass from a compact footprint. Designed for space-efficient enclosures, it’s perfect for tight installations without compromising sound quality. This driver is a standout addition to HELIX’s IMPACT lineup, built to deliver powerful low-end performance even in smaller custom boxes.

Precision-Engineered for Pure Bass

Crafted with a hand-scooped paper cone and a rugged motor structure, the IK W12 handles up to 300W RMS with ease, delivering clean, punchy bass. The advanced double-ventilated voice coil design minimizes compression and ensures thermal stability even at high outputs.

Flexible Configuration for Any Build

Available with dual 2-ohm voice coils, the IK W12 allows for flexible wiring—whether you're using a mono, 2-channel, or multi-channel amp. This versatility makes it easy to optimize for performance in any custom or OEM system.

Built for DIY Installers

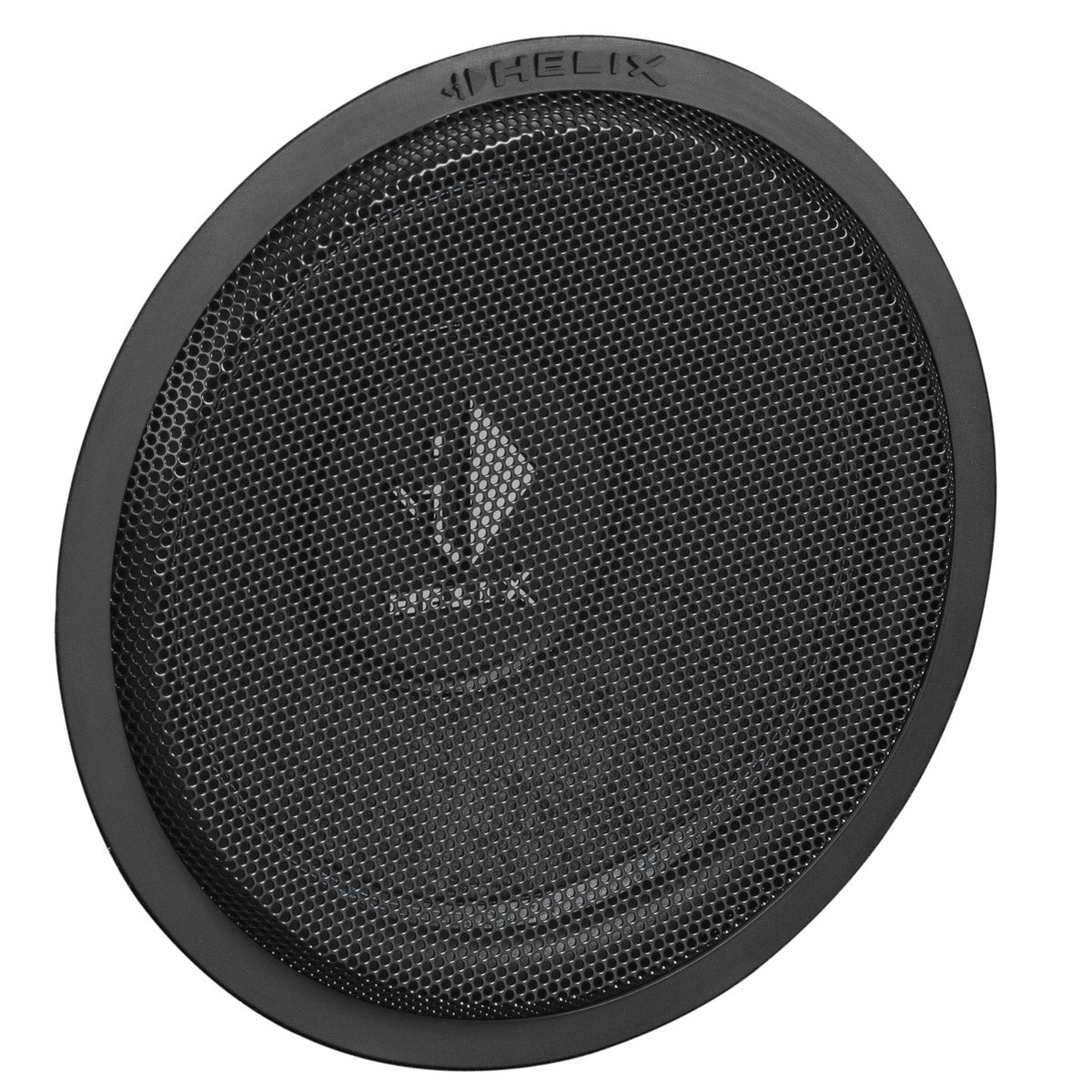

HELIX includes everything you need: a protective grille, gasket, and detailed enclosure recommendations (sealed or vented) for the best bass response. From small sealed boxes to high-output vented enclosures, the IK W12 is tuned to perform.

Key Features

  • Dual 2-ohm voice coils for flexible wiring
  • Hand-scooped paper cone for superior response
  • Long-excursion rubber surround for deep bass
  • Dual-ventilated coil for heat resistance and durability
  • HELIX magnet cover and cast grille included
  • Push terminals for easy wiring
  • Compact design ideal for tight spaces



Parameter Value
Size 300 mm / 12"
Power Handling (RMS / Max) 300 / 600 Watts
Voice Coil Configuration 2 x 2Ω Dual Voice Coil
Voice Coil Diameter 50.8 mm
Winding Height 24 mm
Impedance 2 x 2Ω
DC Resistance (Re) 2 x 1.6Ω
Resonance Frequency (Fs) 32 Hz
Mechanical Q (Qms) 3.70
Electrical Q (Qes) 0.46
Total Q (Qts) 0.41
Compliance (Cms) 179 μm/N
Equivalent Volume (Vas) 66 Liters
Force Factor (Bl) 13.7 Tm
Sensitivity (2.83V/1m) 93 dB
Sensitivity (1W/1m) 90 dB
Cone Area (Sd) 515 cm²
Moving Mass (Mms) 134 g
Cone Material Hand-scooped paper
Mechanical Resistance (Rms) 7.33 kg/s
Max Linear Excursion (Xmax) ±8.0 mm
Outer Diameter 316 mm / 12.44"
Mounting Diameter 286 mm / 11.26"
Mounting Depth 144 mm / 5.67"
Unit Type Single Driver
Recommended Sealed Box Volume 22 Liters
Recommended Vented Box Volume 30 Liters

Parameter Value
Net Volume 22 Liters
-3dB Frequency 40 Hz
DSP Settings Highpass: 37 Hz / Q = 1.6 EQ: 90 Hz / Q = 1.5 / -3 dB



Parameter Value
Net Volume 30 Liters
Port Diameter 100 mm / 3.94"
Port Area 78 cm²
Port Length 28 cm / 9.84"
Tuning Frequency (Fb) 39 Hz
-3dB Frequency 39 Hz
DSP Settings Highpass: 36 Hz / Q = 1.3 EQ: 100 Hz / Q = 0.85 / -2 dB
