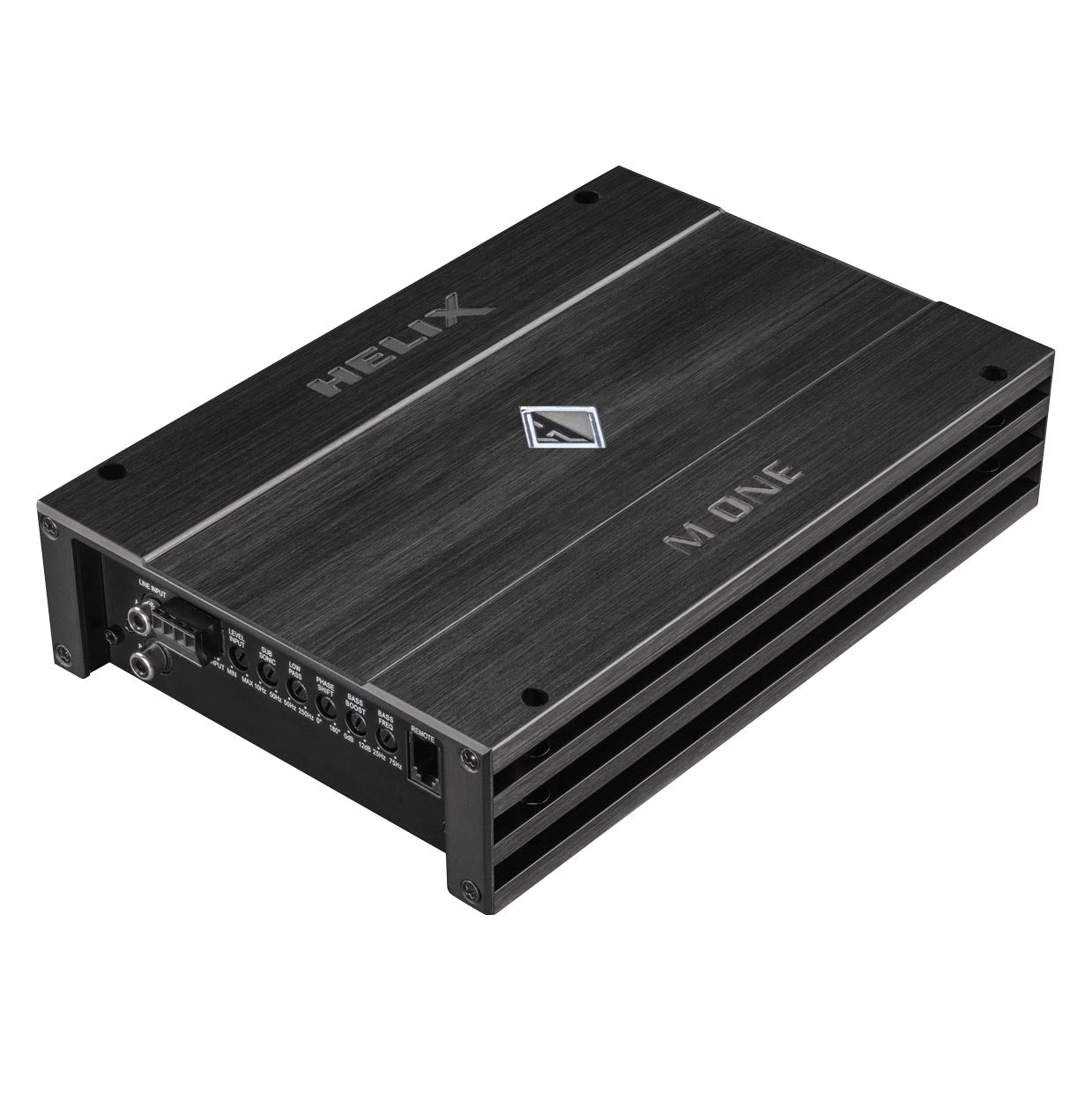

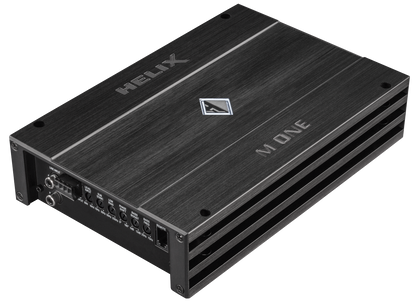

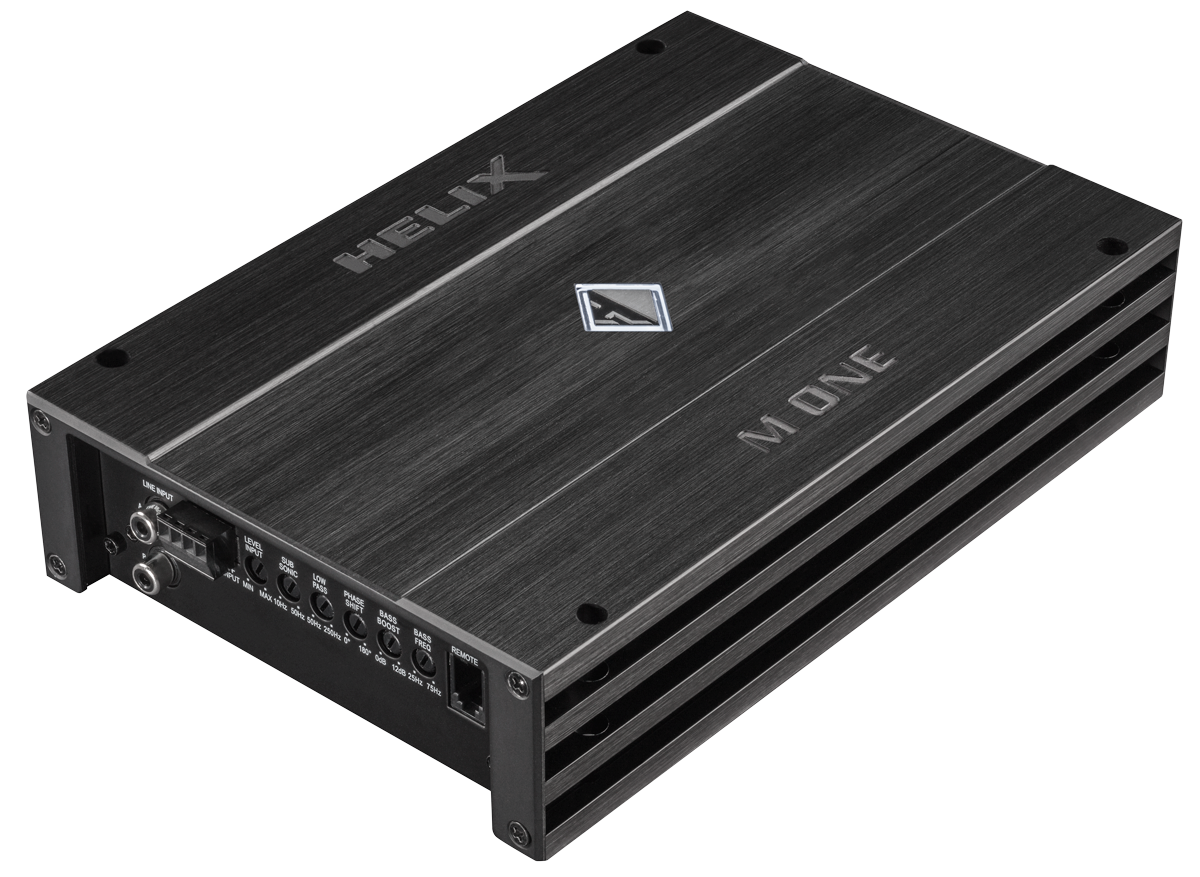

Helix M One mono Car Audio amplifier

Helix M One mono Car Audio amplifier

$699.00 AUD
$699.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

  • HELIX M ONE

    Small, efficient, and uncompromisingly stable – the M ONE is a highly compact monoblock for subwoofer applications. Built using state-of-the-art Class D technology, this amplifier can even handle speakers with 1 ohm impedance with control. Its current delivery capacity makes it ideal for combination with 2 x 2 ohm subwoofers with both voice coils connected in parallel.

    Added to this is a comprehensive and exceptionally practical range of features that leaves nothing to be desired. And finally, thanks to its compact dimensions, there's always a place to install this mini power station.

    Features

    • Particularly compact Class D amplifier with high output power of 600 watts RMS at 1 ohm - ideal for combination with all 2 x 2 ohm subwoofers in parallel operation
    • Start-stop capability down to 6V supply voltage
    • Intelligent high-level input with ADEP (Advanced Diagnostics Error Protection) circuit and automatic switch-on
    • Integrated, active crossover with low-pass, bass boost, subsonic and phase
    • Extremely load-stable power amplifier with high-current power transistors and 1 Ohm stability
    • Wired remote control for volume control
    • SMD technology (Surface Mounted Device) combines minimal space requirements with maximum reliability
    • Exclusive, very compact design with illuminated HELIX logo and low heat generation thanks to very high efficiency

    Special features:

    Intelligent high-level input

    Modern, factory-installed car radios are becoming increasingly intelligent when it comes to diagnosing the connected speakers. Connecting an amplifier to the radio instead often results in error messages and even the loss of certain functions (such as faders). The new ADEP (Advanced Diagnostics Error Protection) circuit prevents all of these problems without unnecessarily straining the radio's speaker outputs at high volumes.

    Start-stop capability

    The power supply in the HELIX M ONE amplifier ensures the internal voltage supply even during brief drops of voltage down to 6 volts. This ensures that the HELIX M ONE remains fully functional even when the engine is started.

    Technical data

    Power RMS ≤ 1% THD+N
    - @ 4 ohms 1 x 240 watts
    - @ 2 ohms 1 x 410 watts
    - @ 1 ohm 1 x 600 watts
    - bridged at 4 ohms -
    - bridged at 2 ohms -
    Max. power per channel* Up to 720 watts RMS @1 ohm
    Amplifier technology Class D

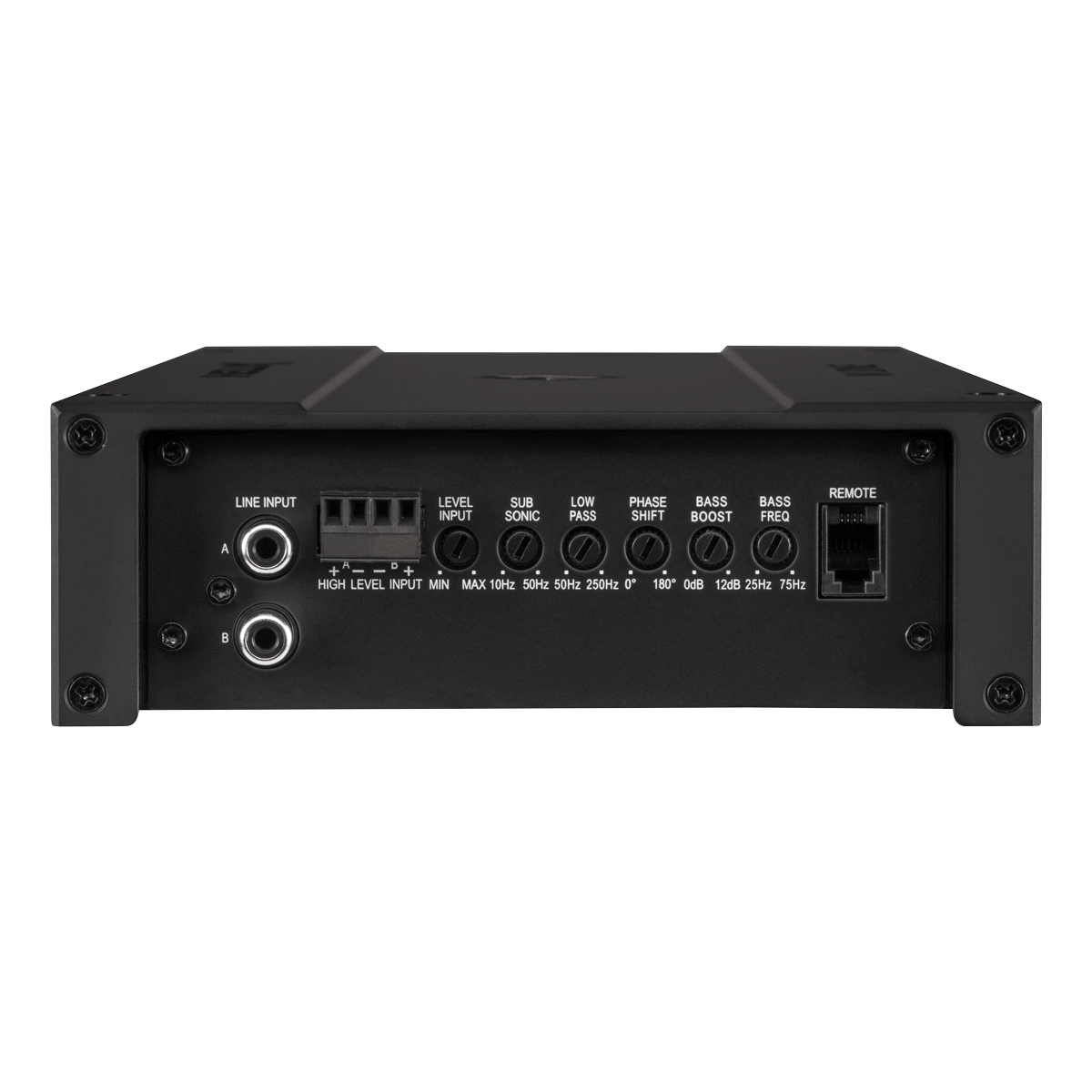

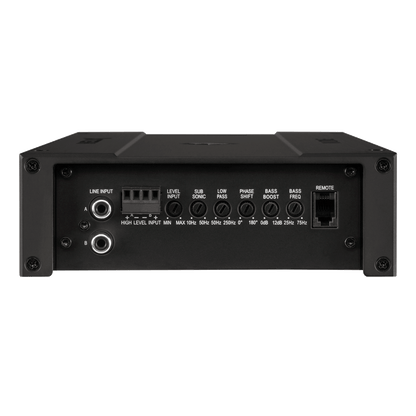

    Entrances 2 x RCA
    2 x High-level speaker input
    1 x Remote In
    1 x Remote control input
    Input sensitivity RCA 0.5 - 6 volts
    high level 1.1 - 13 volts
    Input impedance RCA 20 kOhm
    Input impedance high level 13 ohms

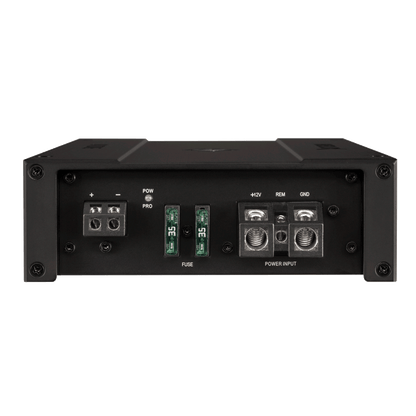

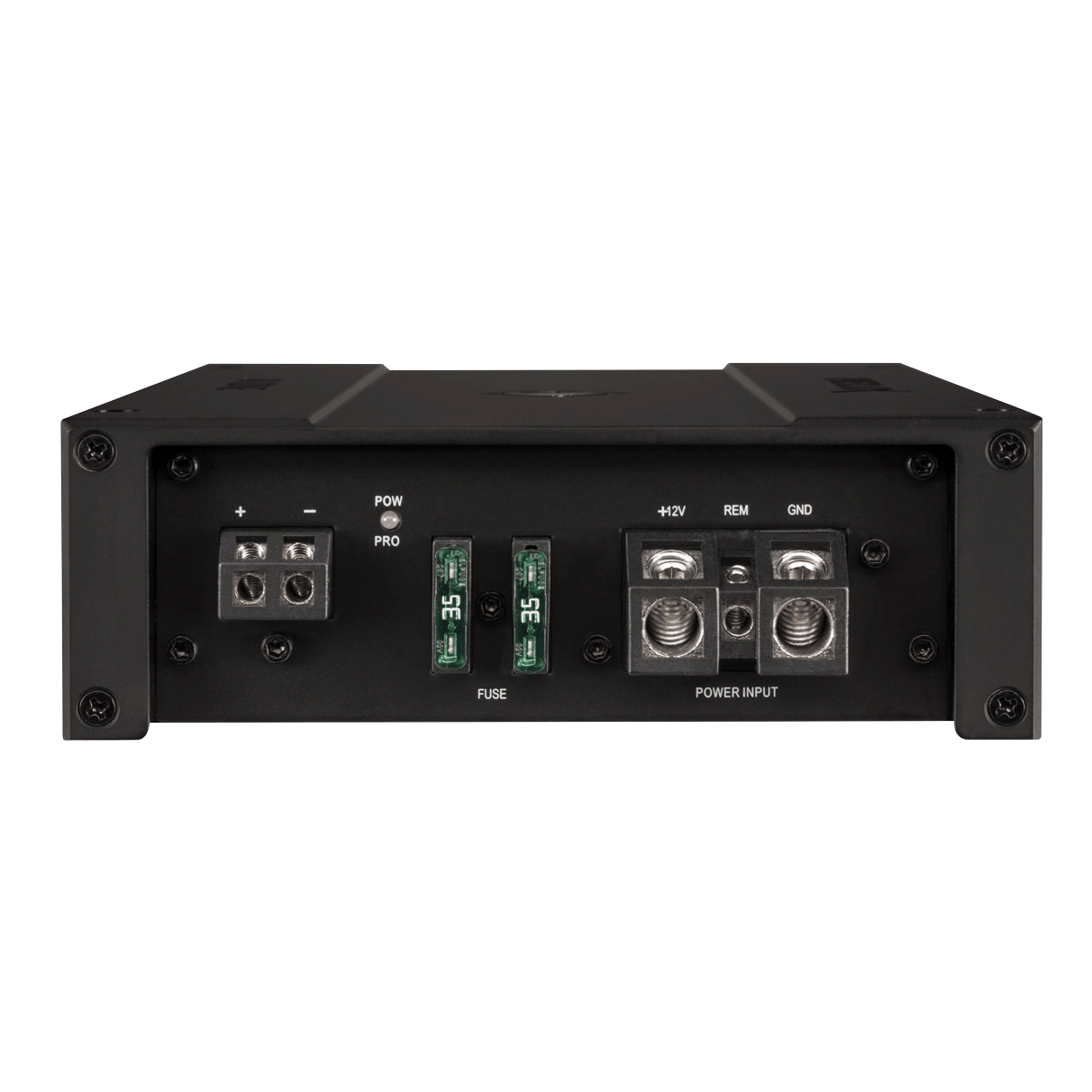

    Exits 1 x speaker output
    Output voltage RCA -
    Signal converter for the digital input -
    Frequency range 10 Hz - 250 Hz
    Bass Boost 0 - 12 dB / 25 - 75 Hz
    High pass -
    Low pass 50 Hz - 250 Hz adjustable
    Bandpass 10 Hz - 250 Hz adjustable
    Subsonic 10 Hz - 50 Hz adjustable
    phase 0 - 180° adjustable
    Slope high- / low-pass -
    Slope subsonic / low-pass 12 / 24 dB/oct.
    Signal-to-noise ratio digital input -
    Signal-to-noise ratio analog input 95 dB (A-weighted)
    Total harmonic distortion (THD) 0.20%
    Damping factor 100
    Operating voltage 10.5 - 16 volts (max. 5 seconds down to 6 volts)
    No-load current consumption 650 mA
    Operating temperature range -40 °C to +70 °C
    Backup 2 x 35 A Maxi plug-in fuses (FK3)
    Additional features Active, adjustable crossover, bass boost,
    phase shift, start-stop capability, high-level input with automatic switch-on and Advanced Diagnostics Error Protection (ADEP), bass level wired remote control
    Dimensions (H x W x D) 50 x 230 x 154 mm
