Helix M ONE X Mono Amplifier

Helix M ONE X Mono Amplifier

$980.00 AUD
$980.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Key Features

  • High Power Output: Delivers up to 1,180W RMS at 1Ω, suitable for demanding subwoofers.

  • High-Resolution Audio: Frequency response up to 250 Hz ensures accurate reproduction of low-frequency audio content.

  • Class D Technology: Provides efficient power delivery with minimal heat generation.

  • Advanced Diagnostics: The ADEP circuit prevents error messages and loss of specific features when connecting to OEM car radios.

  • TwinPower Link: Allows bridging of two amplifiers for increased power output.

  • Integrated Crossover: Offers adjustable lowpass, bass boost, subsonic, and phase controls for tailored sound.

Power RMS 1% THD+N Normal operation (One amplifier) TwinPower Link (Two amplifiers)
- @ 4 Ohms 1 x 400 Watts 1 x 1,400 Watts
- @ 2 Ohms 1 x 700 Watts 1 x 2,060 Watts
- @ 1 Ohm 1 x 1,030 Watts -
- bridged @ 4 Ohms - -
- bridged @ 2 Ohms - -
Max. output power per channel*: Up to 1,180 Watts RMS @ 1 Ohm
Amplifier technology Class D

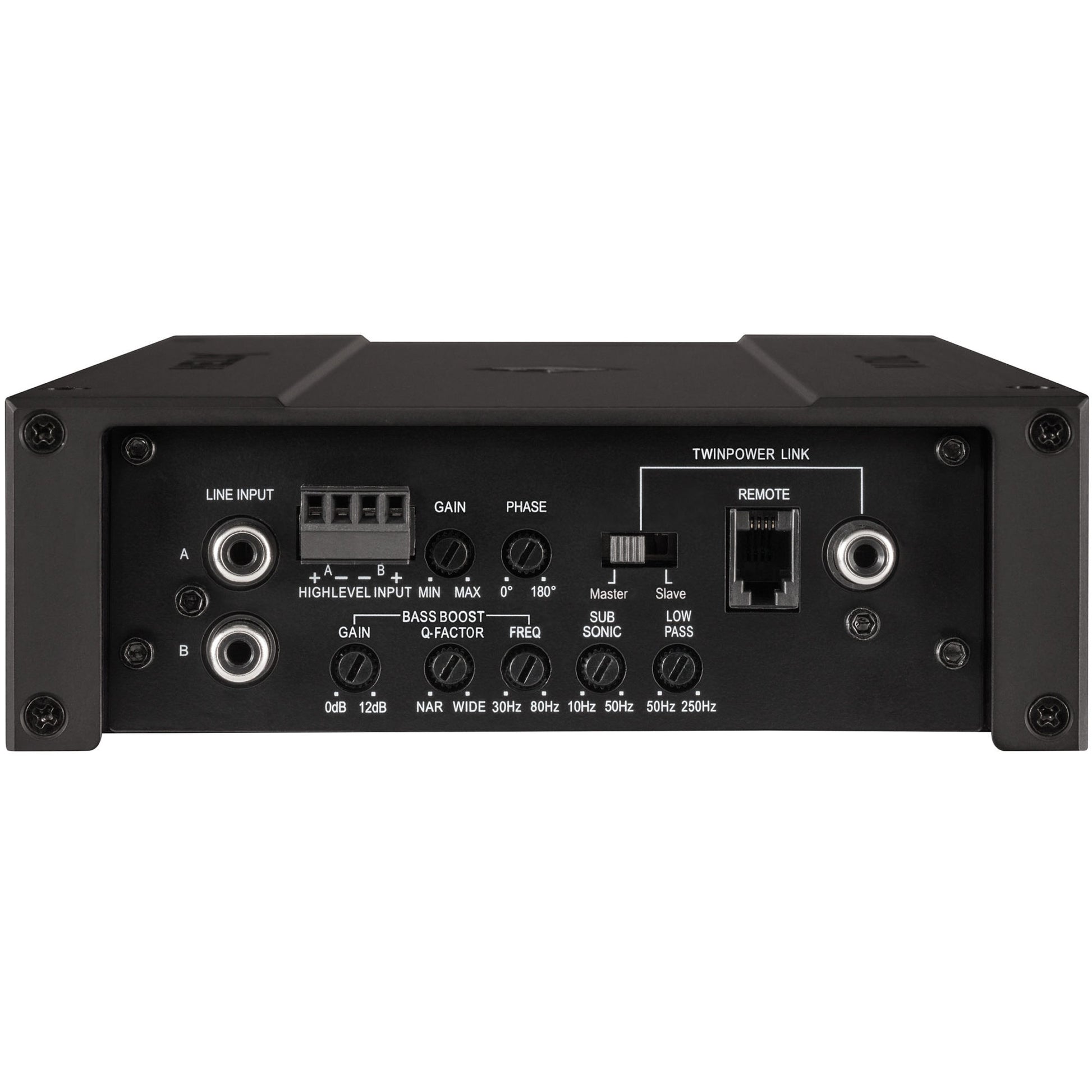

Inputs 2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input
Input sensitivity RCA / Cinch 0.5 - 6 Volts Highlevel 1.1 - 13 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel 9 - 33 Ohms
Outputs 1 x Speaker output
Output voltage RCA / Cinch -
Signal converter for digital input -
Frequency response 10 Hz - 250 Hz
Bass boost 0 - 12 dB / 30 - 80 Hz
Highpass -
Lowpass 50 Hz - 250 Hz adjustable
Bandpass 10 Hz - 250 Hz adjustable
Subsonic 10 Hz - 50 Hz adjustable
Phase 0 - 180� adjustable
Slope high- / lowpass -
Slope subsonic / lowpass 12 / 24 dB/Oct.
Signal-to-noise ratio digital input -
Signal-to-noise ratio analog input 95 dB (A-weighted)
Distortion (THD) 0.20 %
Damping factor 150
Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 800 mA

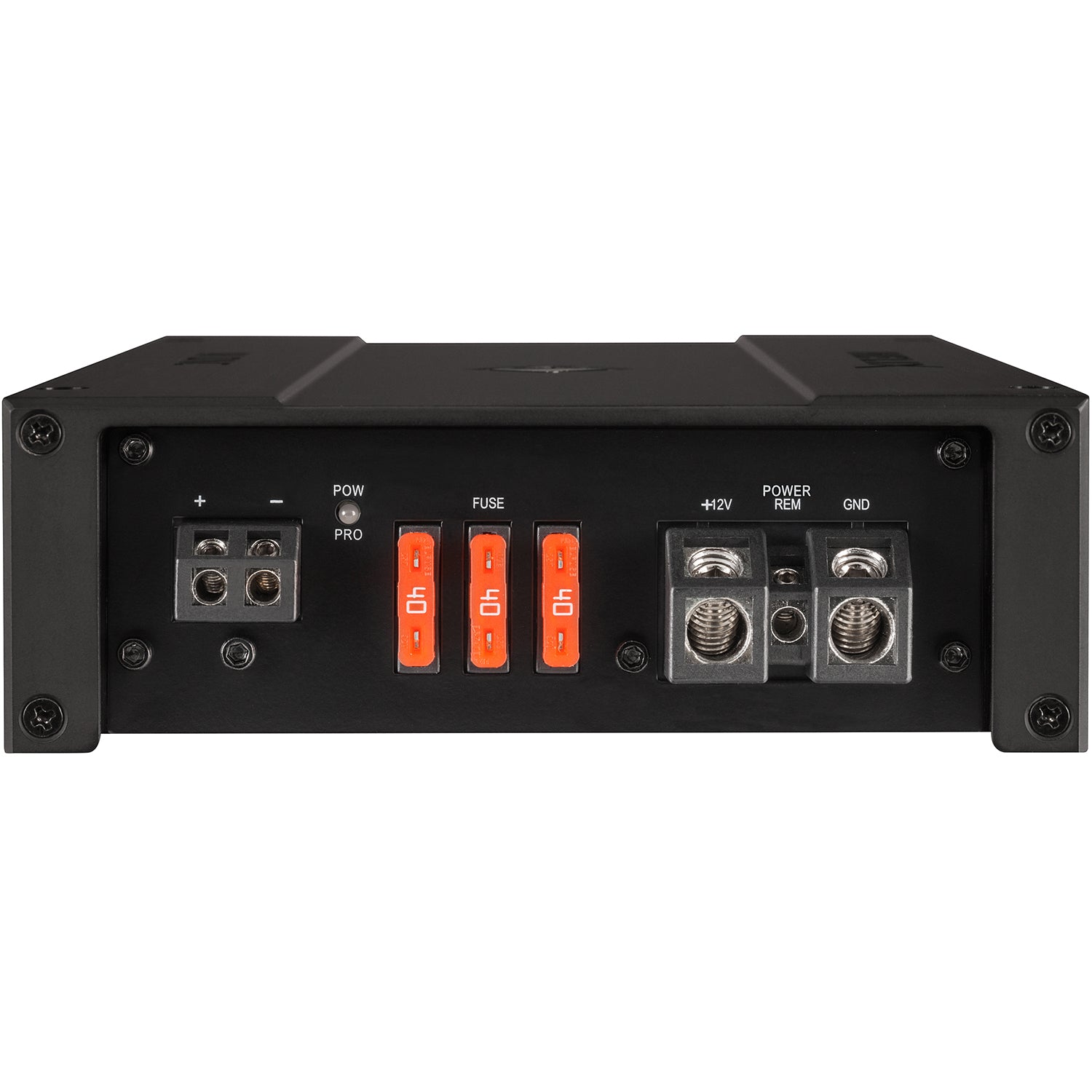

Fuse 3 x 40 A Maxi-fuse (APX)
Additional features Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Dimensions (H x W x D) 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06
