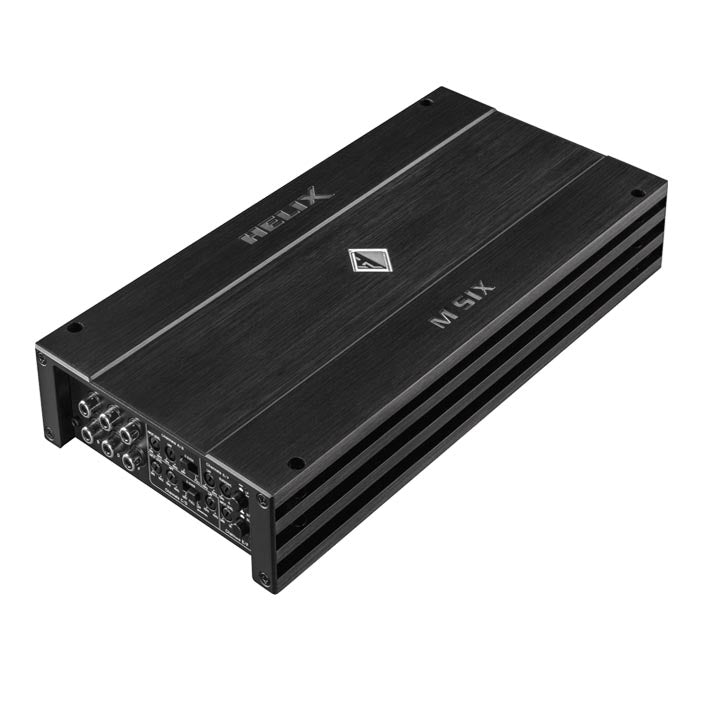

Helix M Six 6 channel Car Audio amplifier

Helix M Six 6 channel Car Audio amplifier

$1,000.00 AUD
$1,000.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

The HELIX M SIX is a versatile 6-channel amplifier designed to deliver high-quality audio performance in various configurations, including 3-way, 2-way, or subwoofer applications. Despite its compact dimensions, it provides 100 Watts RMS per channel into both 4 Ohms and 2 Ohms loads, ensuring powerful output. Its highly efficient Class D design topology keeps the amplifier cool during operation. Additionally, the M SIX offers flexible configurations, allowing for bridged setups delivering up to 3 x 200 Watts RMS of clean and undistorted output power.

The amplifier features an integrated active crossover with highpass, lowpass, bandpass, and subsonic filters, providing comprehensive sound tuning options. Its compact size and efficient design make it suitable for a wide range of vehicles and audio setups.

Feature Description
Output Power 100 Watts RMS per channel @ 4Ω and 2Ω load
Bridged Output Up to 3 x 200 Watts RMS
Amplifier Class Class D
Crossover Types Highpass, Lowpass, Bandpass, Subsonic

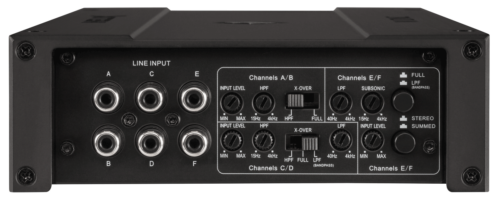

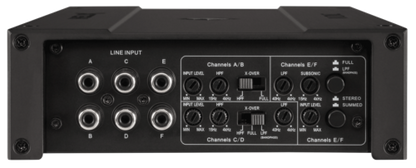

Input Types 6-channel low-level input
Input Mode Switch For flexible input signal routing on channels E & F
Start-Stop Capability Operates down to 6V supply voltage during engine crank
Manufacturing Technology SMD (Surface Mounted Device) for compactness and reliability
Design Features Compact footprint with illuminated HELIX logo
Efficiency Low heat dissipation due to high efficiency
Dimensions (H x W x D) 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06 inches



Key Features

  • Versatile Configuration: Suitable for 3-way, 2-way, or subwoofer applications.
  • High Output Power: Delivers 100 Watts RMS per channel into both 4 Ohms and 2 Ohms loads.
  • Bridged Capability: Supports up to 3 x 200 Watts RMS output in bridged configurations.
  • Integrated Active Crossover: Offers highpass, lowpass, bandpass, and subsonic filters for precise sound tuning.
  • Compact and Efficient Design: Class D topology ensures low heat dissipation and compact size.
  • Start-Stop Capability: Operates reliably even when the vehicle's battery voltage drops to 6V during engine start
