Helix M Six DSP 6 Ch Amplifier with integrated 10-Ch signal processor

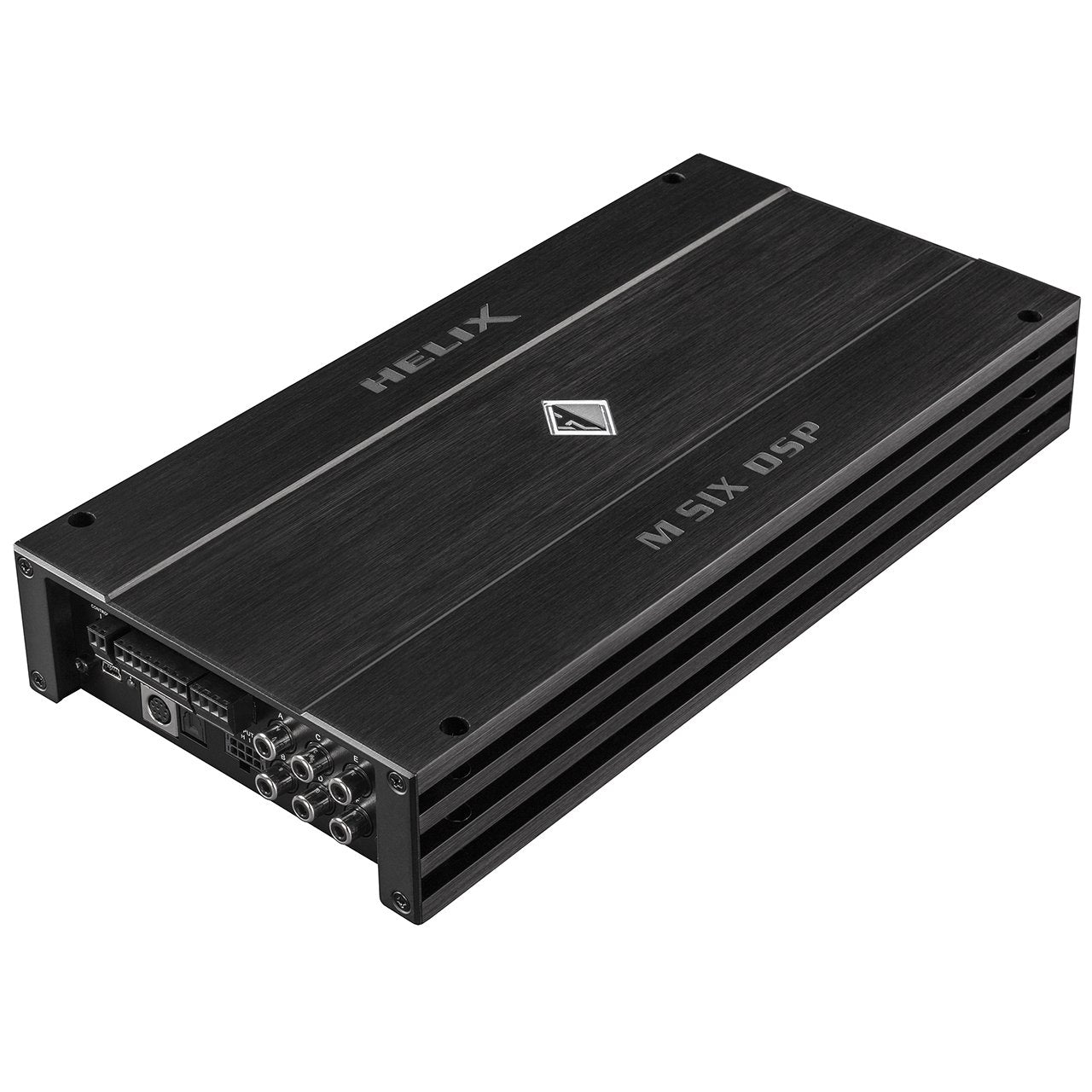

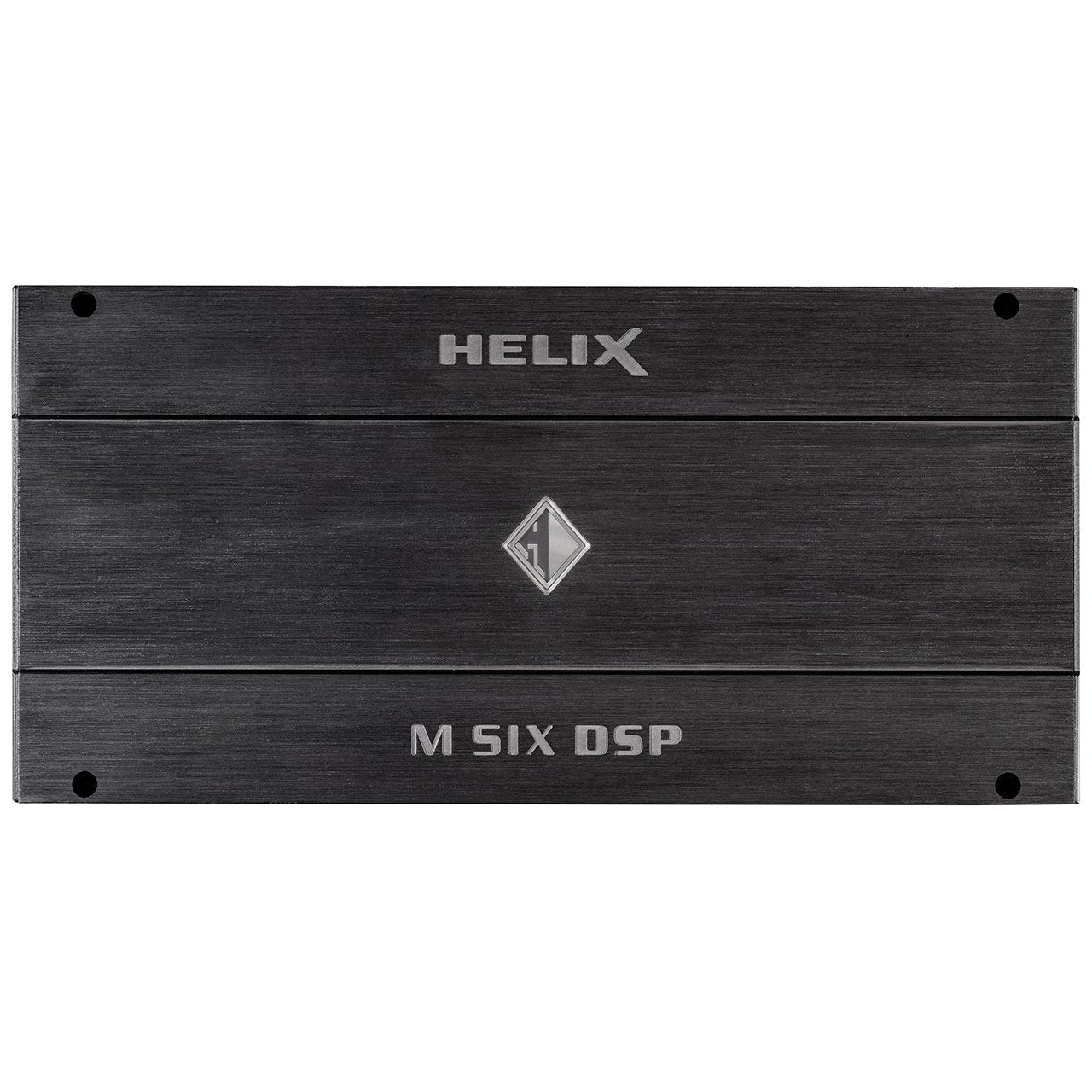

HELIX M SIX DSP – Compact 6-Channel Amplifier with 10-Channel DSP

The HELIX M SIX DSP is more than just a six-channel amplifier. Despite its compact size, it serves as a powerful control center with a total of ten processed DSP channels. Delivering 100 Watts RMS per channel into both 4 Ohms and 2 Ohms loads, it offers exceptional performance. Its impressive price-to-performance ratio, combined with a comprehensive feature set, ensures a remarkable audio experience.

 Tonal Excellence – True to HELIX

Compromises in sound quality are not an option for HELIX. The M SIX DSP is equipped with top-tier components, including:

• High-quality, separate A/D and D/A converters
• A powerful 64-bit fixed-point DSP from Analog Devices
• Four pre-amplifier outputs with 6V output voltage
• A fully German-manufactured DSP circuit board

These features ensure pristine audio fidelity and dynamic performance.

Maximum Flexibility

The M SIX DSP's internal amplifier section is highly versatile:

• Operates in 6-channel mode
• Bridgeable to 5-channel, 4-channel, or 3-channel configurations
• Includes four pre-amplifier outputs for system expansion

When combined with other amplifiers in the M series (M ONE X, M ONE, M FOUR, or M SIX), it allows for scalable, high-performance multi-channel systems.

Virtual Channel Processing (VCP)

Managing multiple DSP channels is simplified with HELIX's innovative Virtual Channel Processing. This system enables:

• Flexible signal routing for complex configurations
• Easy integration with OE sound systems
• Assignment of proprietary FX sound features like "RealCenter" and "Augmented Bass Processing"

The user-friendly DSP PC-Tool software facilitates intuitive setup and adjustments.

Enhanced Speed with ACO Platform

The advanced 32-bit ACO (Advanced CoProcessor) platform enhances system performance by:

Accelerating data communication with DSP PC-Tool software

Enabling rapid switching between up to ten sound setups

Implementing advanced sound effects such as Augmented Bass Processing and RealCenter

Providing channel-separated Input EQ and Input Signal Analyzer (ISA) for OE radio signal analysis

Compact, Cool, and Practical

Despite its extensive features and power, the M SIX DSP maintains a compact form factor reminiscent of the HELIX M SIX. Its Class D amplifier technology ensures efficient heat management, even under full load.

• Start-stop capability
• ADEP.3 circuit for OEM integration
• Power Save Mode to reduce energy consumption during inactivity

Features Overview

• Output Power: Up to 130 Watts RMS per channel at 4Ω and 2Ω
• Amplifier Technology: Class D

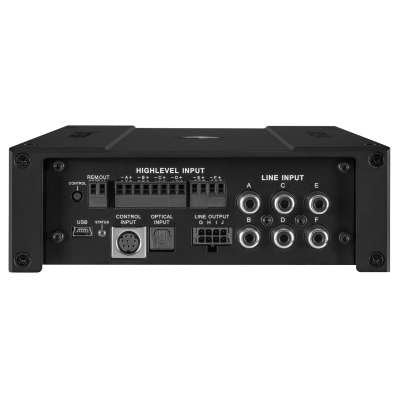

• Inputs: 6 x RCA / Cinch, 6 x High-level speaker input, 1 x Optical SPDIF (12 - 96 kHz), 1 x Remote In

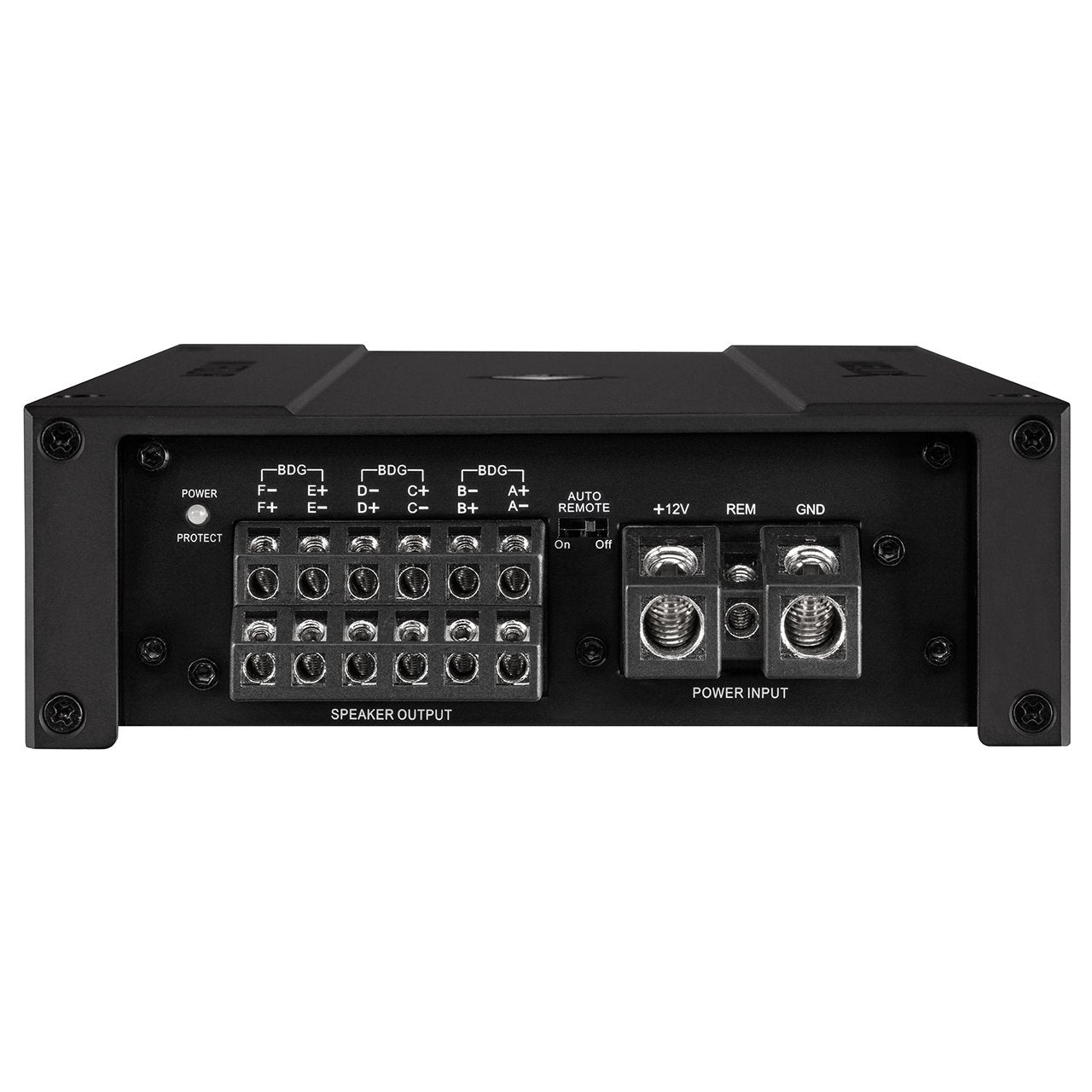

• Outputs: 6 x Speaker output, 4 x RCA / Cinch, 2 x Remote Out
• DSP Resolution: 64-bit
• Sampling Rate: 48 kHz
• Signal-to-Noise Ratio: 105/108 dB (digital input/speaker/line output, A-weighted)
• Distortion (THD): < 0.03 / 0.005 % (speaker/line output)
• Damping Factor: 100
• Operating Voltage: 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
• Idle Current: 1950 mA
• Operating Temperature Range: -40°C to +70°C

• Fuse: 2 x 35 A Maxi-fuse (APX)

• Power Rating: DC 12 V – 80 A max

📦 Scope of Delivery

• 1 x HELIX M SIX DSP Amplifier
• 1 x Line Output-to-RCA / Cinch Cable
• 1 x USB Cable
• 1 x Mounting Material
• 1 x Instruction Manual
