Description

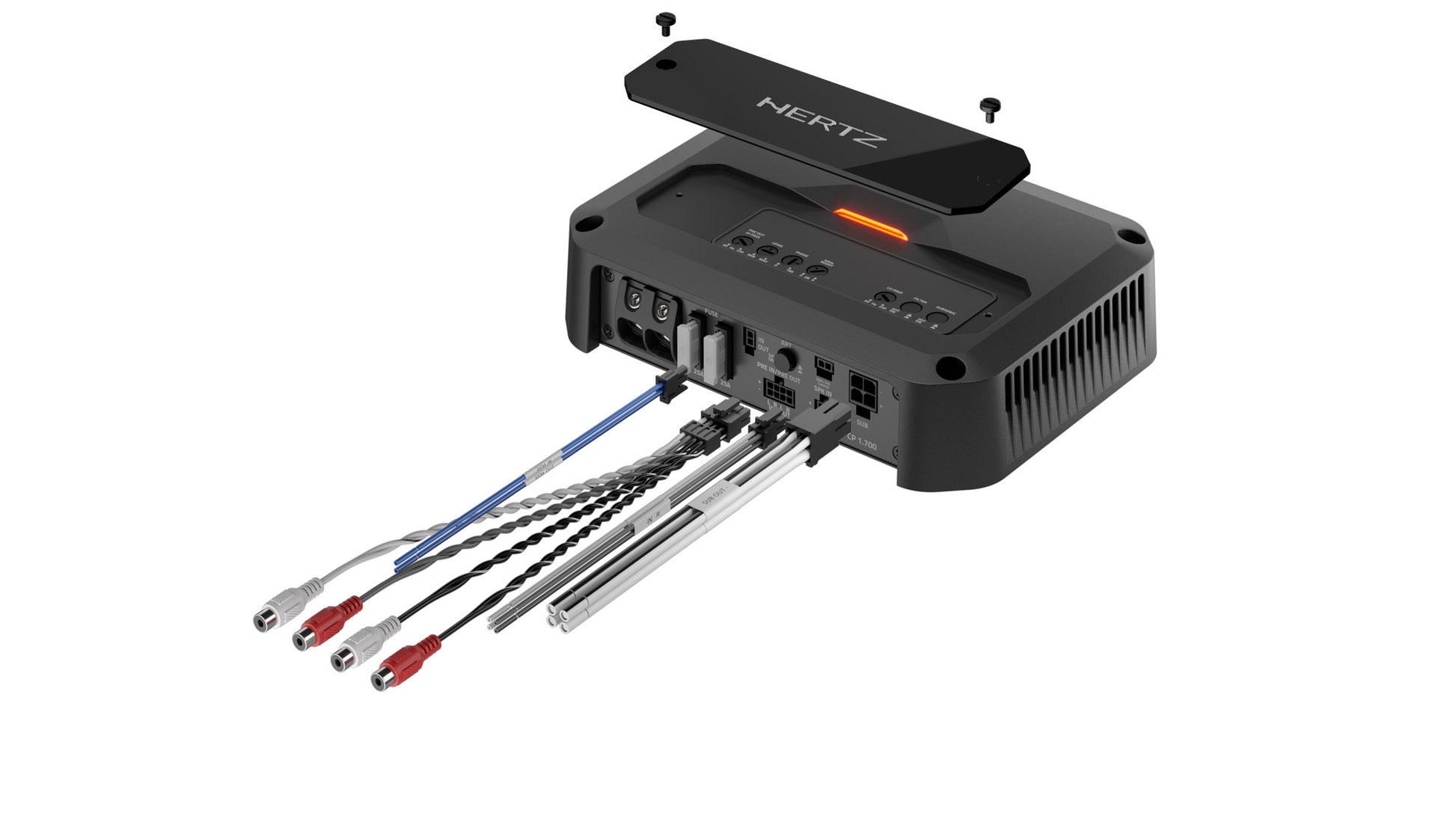

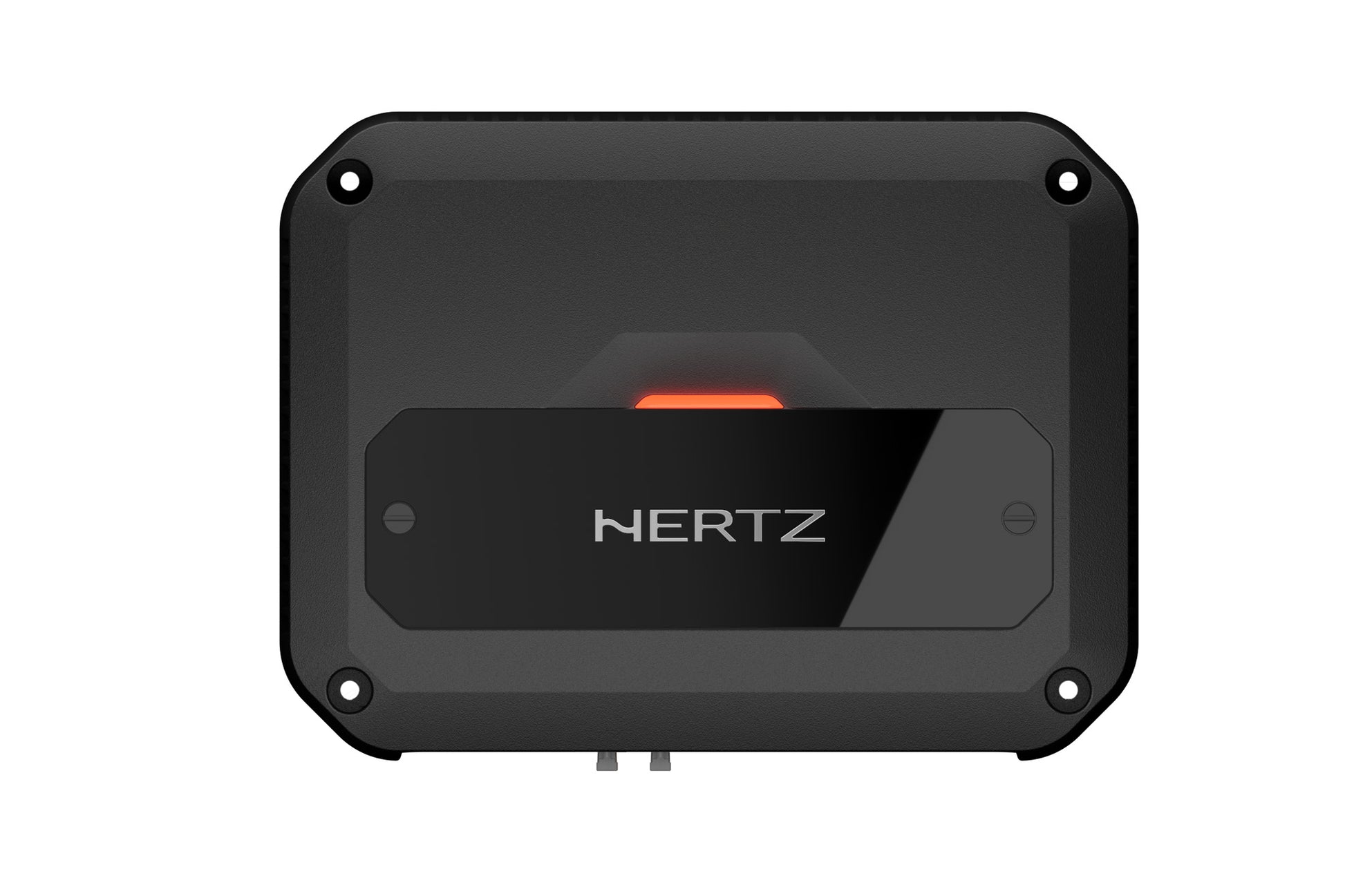

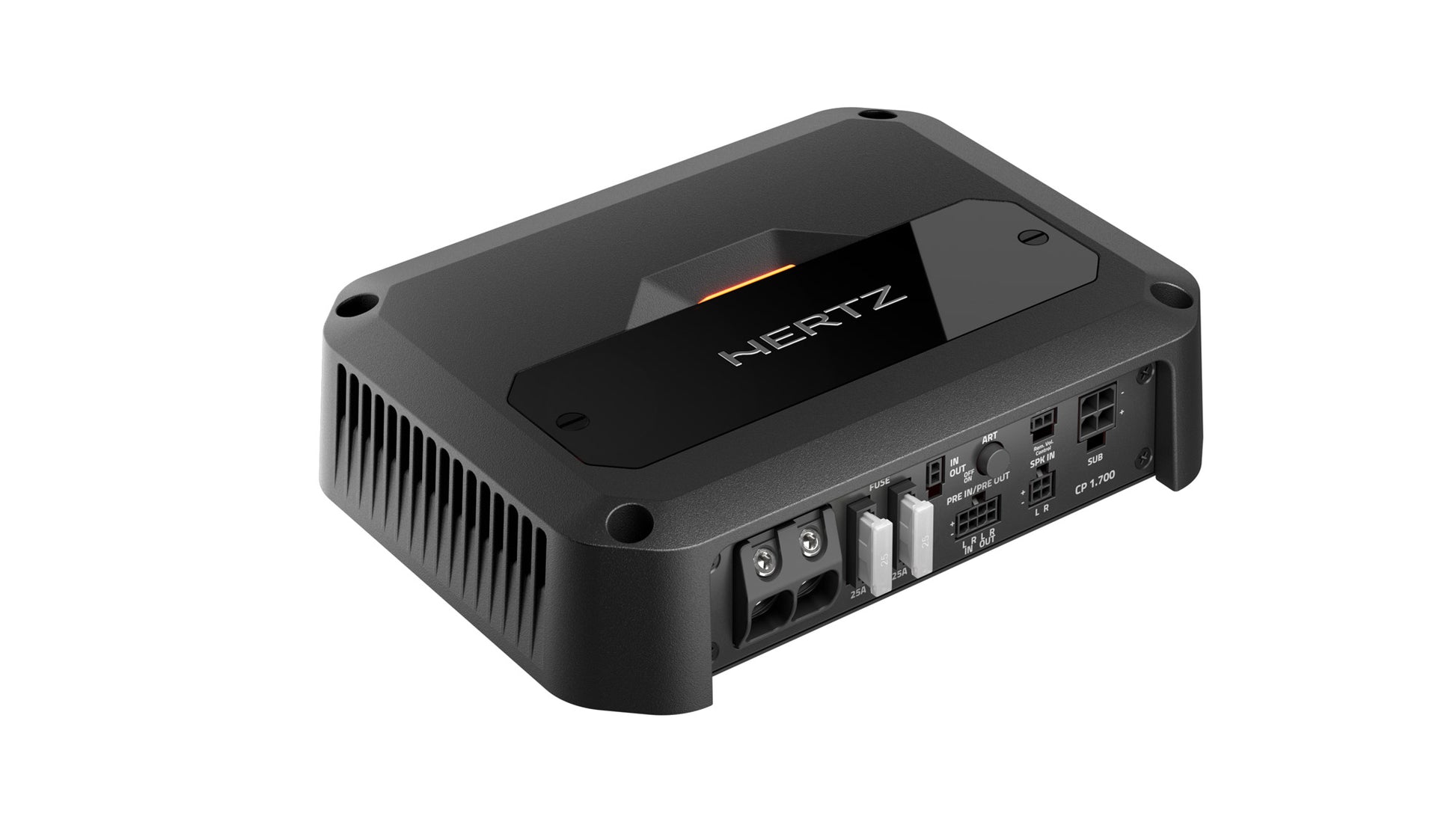

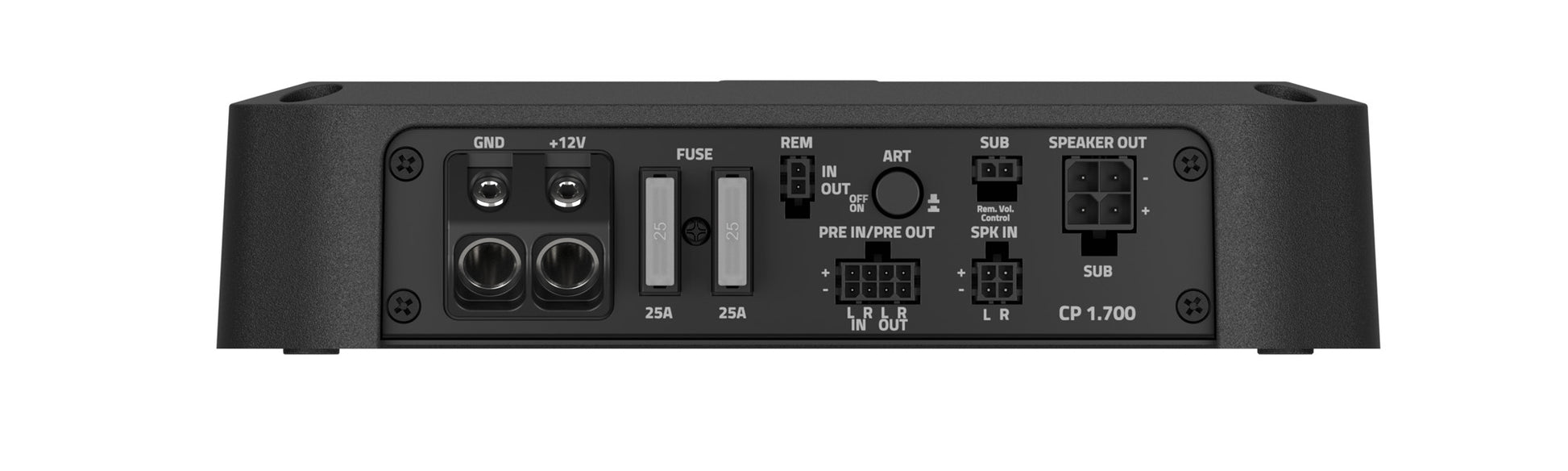

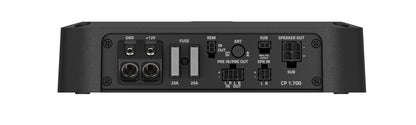

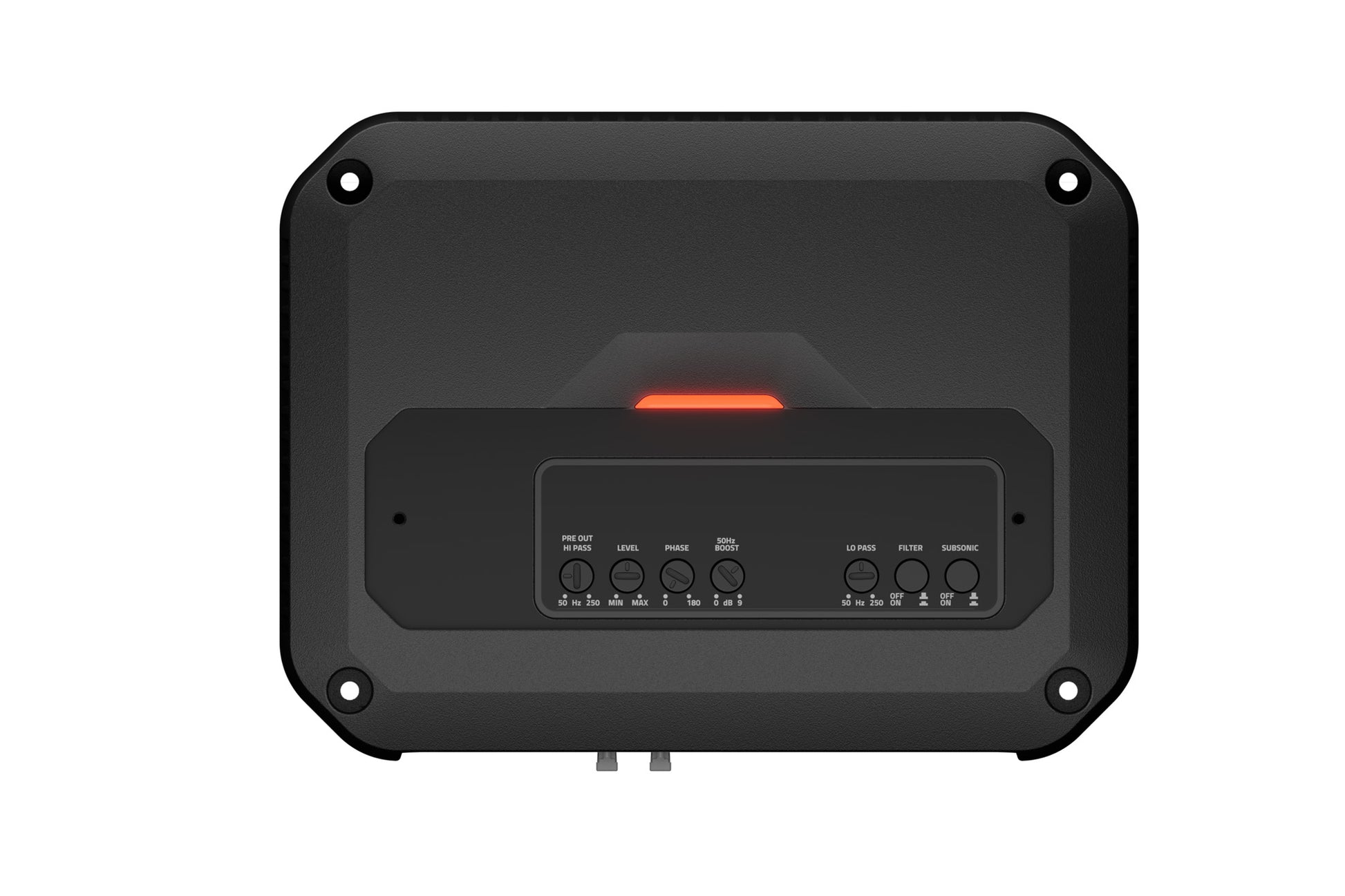

Hertz CP 1.700 Cento Mono Amplifier
Upgrade your car audio with the Hertz CP 1.700 Cento Mono Amplifier, a high-performance mono amplifier designed for deep, powerful bass. Part of the Cento Power series, this compact Class D amplifier delivers 700W RMS at 2 Ohms with over 89% efficiency, perfect for subwoofer enhancements as of 11:19 AM AEST, Wednesday, August 13, 2025.
Key Features of the Hertz CP 1.700
- Advanced Class D Technology: Offers over 89% efficiency with minimal heat dissipation.
- High-Noise Rejection: Features balanced input circuitry for clean audio output.
- Variable Phase Control: Allows fine-tuning of audio output from 0° to 180°.
- Universal Speaker Simulator (USS): Ensures compatibility with modern head units.
- Compact Aluminum Chassis: Facilitates easy installation in tight spaces.
- Full-Range Pre-Out: Enables flexible system expansion.
Specifications Table
| Specification | Details |
|---|---|
| Amplifier Type | Class D Monoblock |
| Power Output (RMS) | 400W @ 4 Ohms, 700W @ 2 Ohms |
| Power Output (Peak) | 1,200W @ 2 Ohms |
| Impedance | 2 Ohms (Min) |
| Frequency Response | 10 Hz - 500 Hz |
| Signal-to-Noise Ratio (A-weighted) | 113 dBA @ 1V Input |
| Total Harmonic Distortion (THD) | 0.01% @ 100 Hz, 70% Rated Power |
| Input Sensitivity | Pre-In: 0.32 - 8V RMS, Speaker-In: 1.6 - 40V RMS |
| Input Impedance | Not specified |
| Crossover Frequencies | Low-Pass: 50 Hz - 250 Hz (24 dB/Oct), Subsonic: 25 Hz (24 dB/Oct) |
| Damping Factor | 350 @ 1 kHz, 1W |
| Operating Voltage | 9 - 18 VDC |
| Idle Current | 1.10 A |
| Maximum Current Consumption | 33 A (Min Load Impedance, Max Musical Power) |
| Dimensions (W x H x D) | 180 x 48 x 140 mm (7.09 x 1.89 x 5.51 inches) |
| Weight | 2.44 kg (5.37 lbs) |
| Efficiency | 89% |
