Description

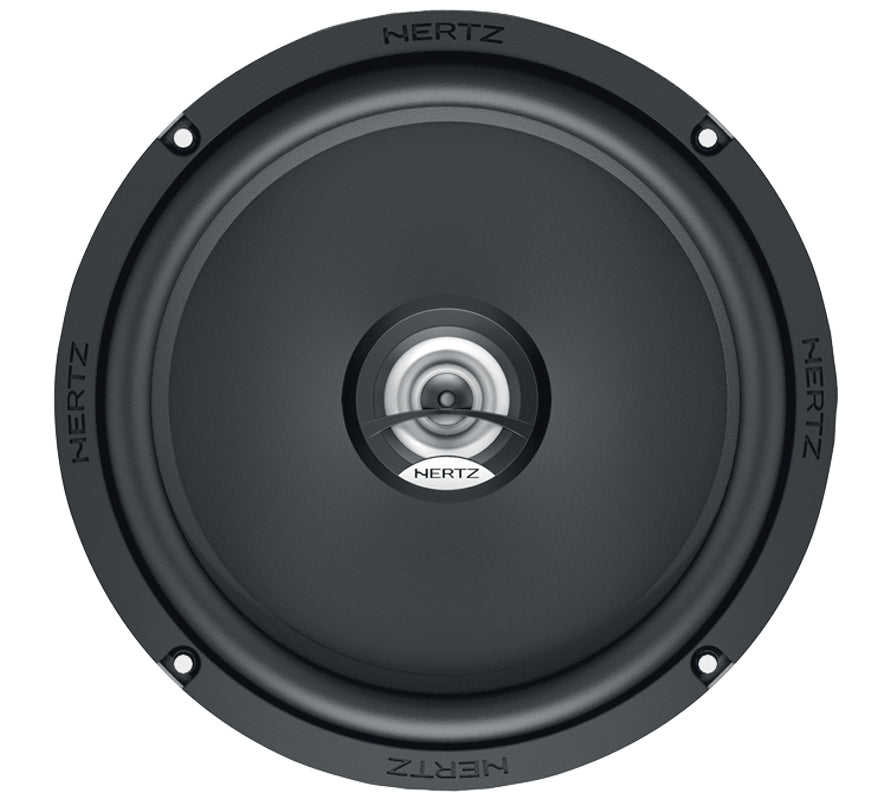

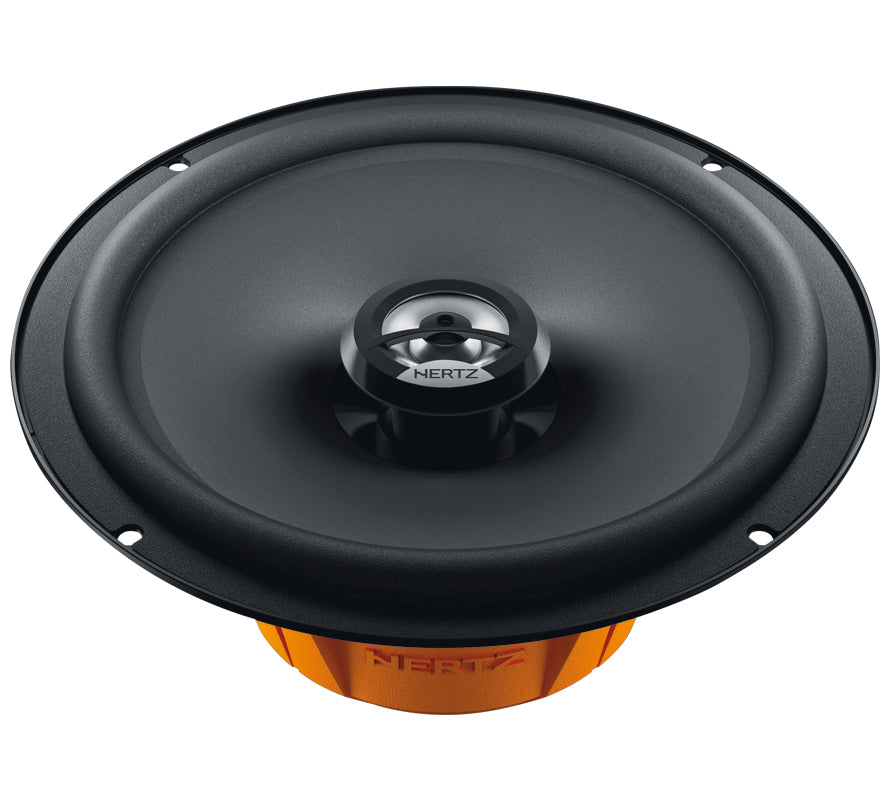

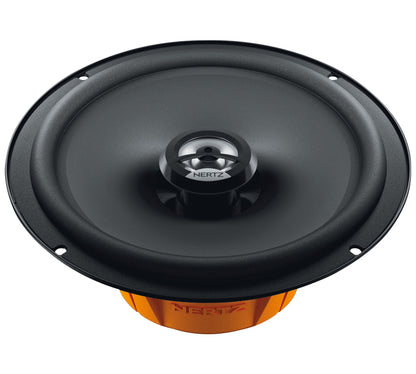

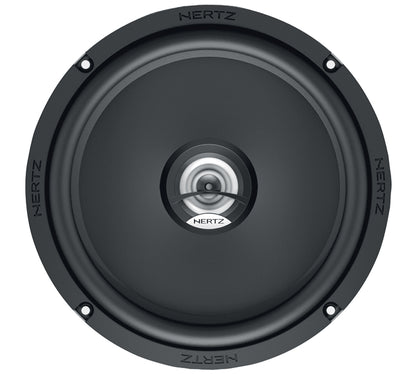

The Hertz DCX 165.3 is far more than a conventional coaxial speaker. It combines a powerful woofer with a high-quality tweeter in a compact design — delivering full Hertz performance in an easy-to-install package.
With 60W RMS power handling and a frequency response from 60 Hz to 21 kHz, the DCX 165.3 offers outstanding clarity and dynamics. Perfect for factory replacement or custom upgrades in doors or rear decks.
Tonal Excellence – True to Hertz
Hertz stands for uncompromising sound quality. The DCX 165.3 features premium components, including:
- High-efficiency neodymium tweeter
- Pressed paper cone with cotton fibre
- High-damping rubber surround
- Fully Italian-engineered signal path
These ensure crystal-clear highs, tight midbass and faithful reproduction across the entire frequency range.
Maximum Flexibility
The speaker is highly configurable:
- Direct factory-fit in many vehicles
- Shallow mounting depth for tight spaces
- High power handling for amplified systems
Combined with Hertz amplifiers or DSP, it enables high-performance systems tailored to any vehicle.
Compact, Efficient and Practical
Despite its high-end performance, the DCX 165.3 remains remarkably compact thanks to smart engineering.
- Low mounting depth (61 mm)
- High sensitivity (93 dB)
- Power handling up to 120W peak
Ideal for modern vehicles where space is at a premium.
Features Overview
- Power Handling RMS → 60 W
- Power Handling Peak → 120 W
- Impedance → 4 Ω
- Frequency Response → 60 ÷ 21000 Hz
- Sensitivity → 93 dB SPL

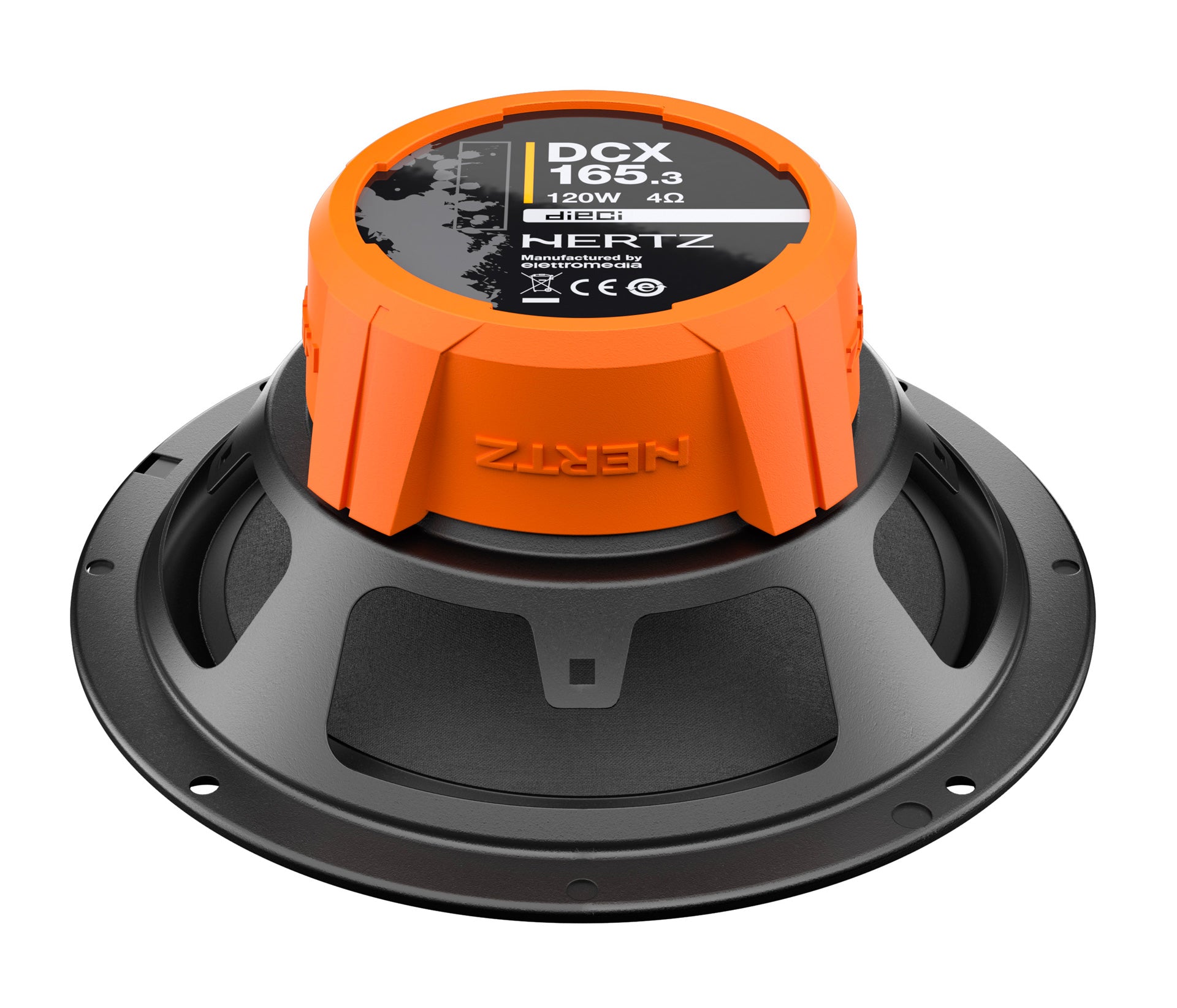

- Magnet Size → 85 × 40 × 15 mm
- Cone → Pressed-pulp cone with cotton fibres
- Dome → Neodymium
- Mounting Depth → 61 mm
Scope of Delivery
- 2 x Hertz DCX 165.3 Coaxial Speakers
- Grilles & mounting hardware
- Installation manual
