Hertz HMV5 (Venezia V5) 5-Channel Marine Amplifier
Upgrade your marine audio with the Hertz HMV5 (Venezia V5), a powerful 5-channel marine amplifier designed for exceptional sound quality and durability. Engineered for marine environments with IPX2 certification, this amplifier delivers 1,700W RMS using Advanced Class D technology, ideal for powering four speakers and a subwoofer as of 10:44 AM AEST, Wednesday, August 13, 2025.
Key Features of the Hertz HMV5 (Venezia V5)
- Advanced Class D Technology: Maximizes efficiency and power while minimizing heat and electromagnetic radiation.
- Hi-Res Audio Certified: Supports an extended audio band up to 42 kHz for superior sound quality.
- IPX2 Certification: Engineered and tested for marine conditions (UV, salt-fog, vibrations, thermal shock).

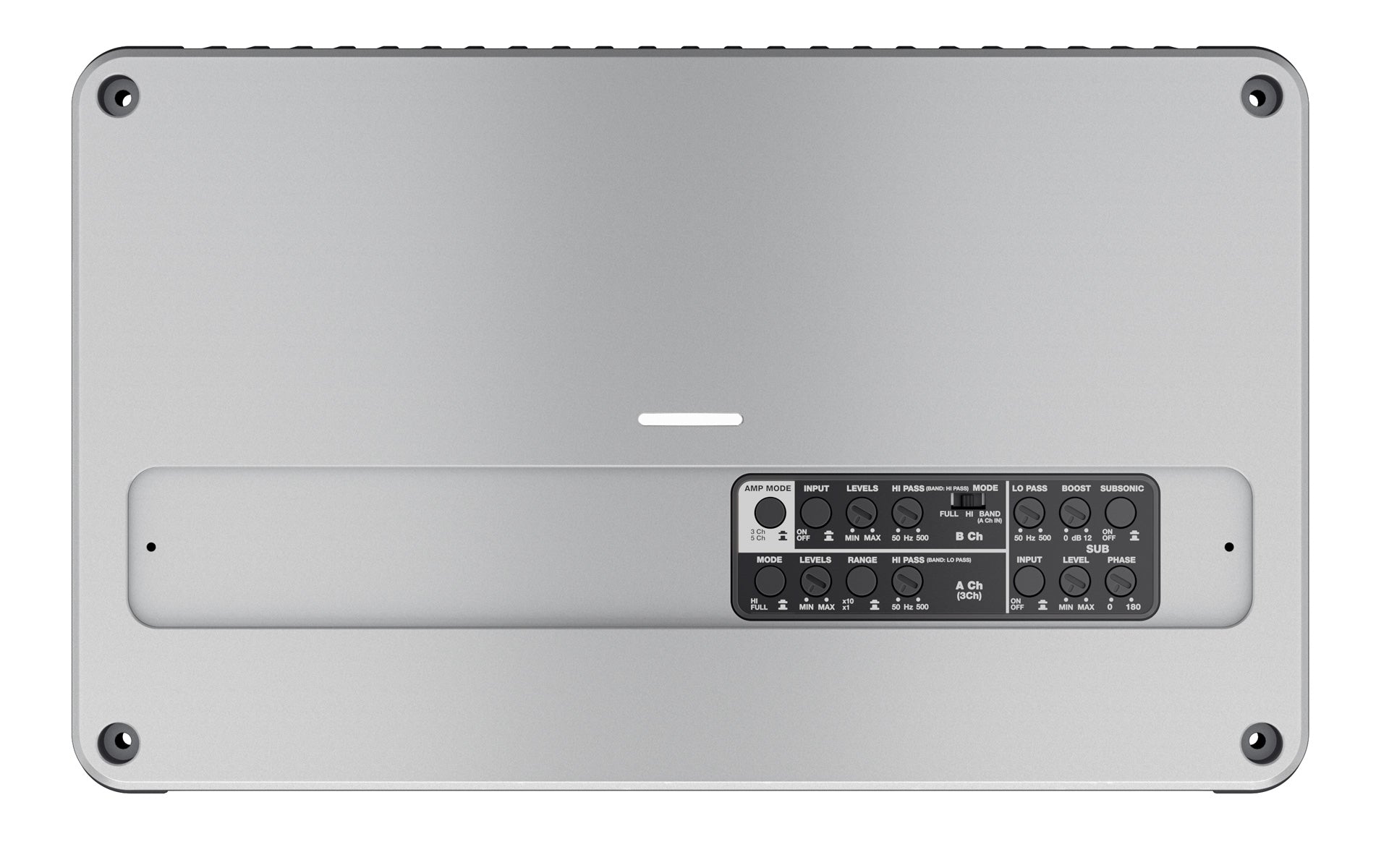

- Flexible Crossover Options: Includes adjustable high-pass, band-pass, and low-pass filters for versatile system configuration.

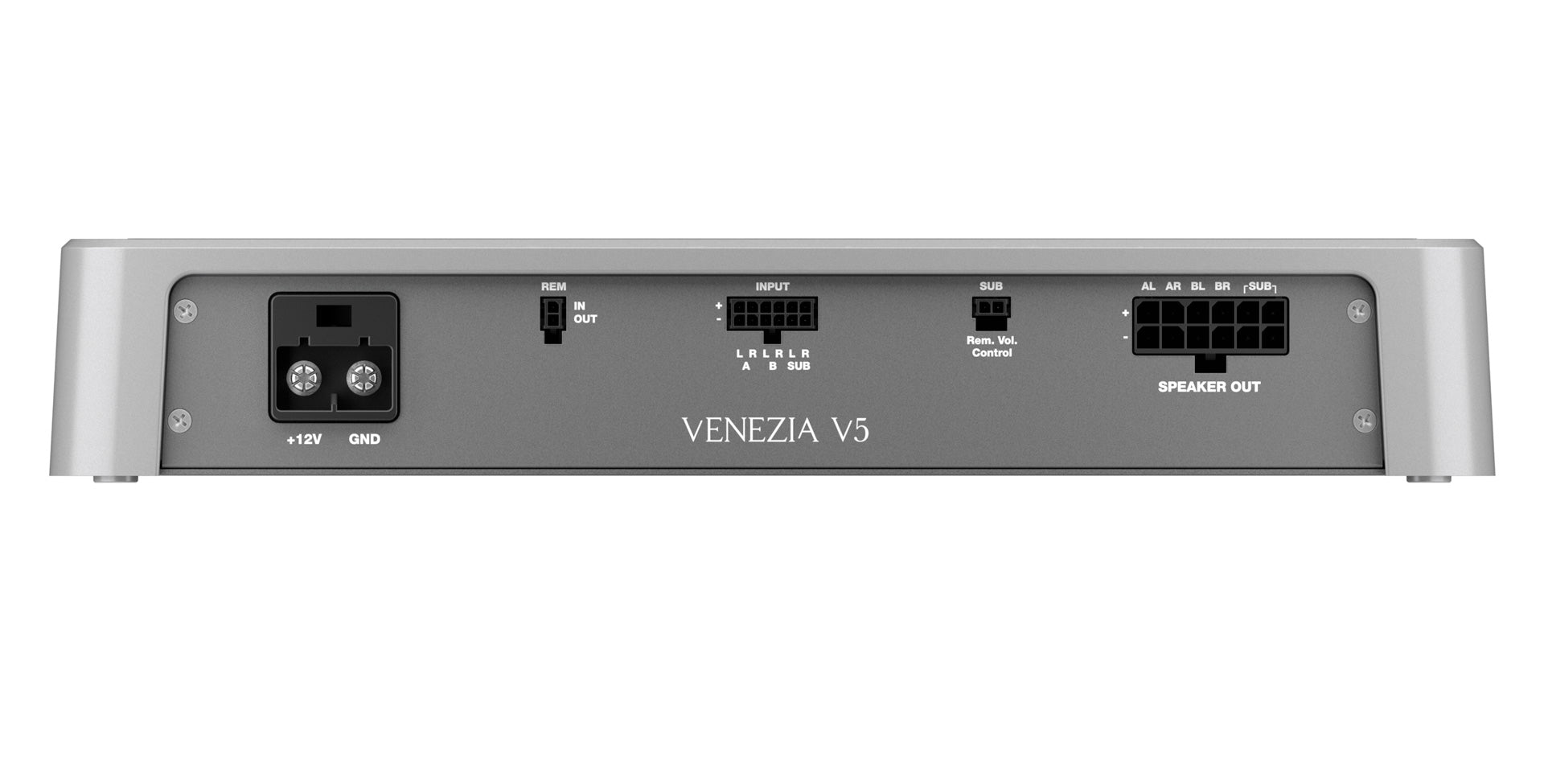

- Safe-Lock Connections: Streamlines installation with durable input, output, and power connectors.
- Fanless Convection Cooling: Integrated into a cast heat-sink chassis for reliable operation.
Specifications Table
| Specification | Details |
|---|---|
| Amplifier Type | 5-Channel (3-Channel Bridgeable) |
| Power Output (RMS) | 130W x 4 @ 4 Ohms + 490W x 1 @ 4 Ohms |
| 220W x 4 @ 2 Ohms + 820W x 1 @ 2 Ohms | |
| 440W x 2 @ 4 Ohms (Bridged) + 490W x 1 @ 4 Ohms | |
| 440W x 2 @ 4 Ohms (Bridged) + 820W x 1 @ 2 Ohms | |
| Total Power (RMS) | 1,700W |
| Impedance | 2 Ohms (Min) @ 5-Channels, 4 Ohms + 2 Ohms @ 3-Channels |
| Frequency Response | 10 Hz - 42 kHz |
| Signal-to-Noise Ratio (A-weighted) | 102 dB @ 1V |
| Total Harmonic Distortion (THD) | < 0.05% @ 100 Hz, 4 Ohms |
| Input Sensitivity | 0.2 - 5V RMS |
| Input Impedance | 10 kOhms |
| Crossover Frequencies | Hi-Pass: 50 Hz - 5 kHz, Low-Pass: 50 Hz - 250 Hz |
| Damping Factor | 130 @ 100 Hz, 4 Ohms |
| Operating Voltage | 9 - 16 VDC |
| Idle Current | 1.8 A (ON), 0.04 mA (OFF) |
| Maximum Current Consumption | 70 A @ 1 Ohm, 14.4 VDC |
| Dimensions (L x W x H) | 330 x 200 x 54 mm (13 x 7.87 x 2.12 inches) |
| Weight | 3.72 kg (8.2 lbs) |
| Certification | IPX2 |
