Description

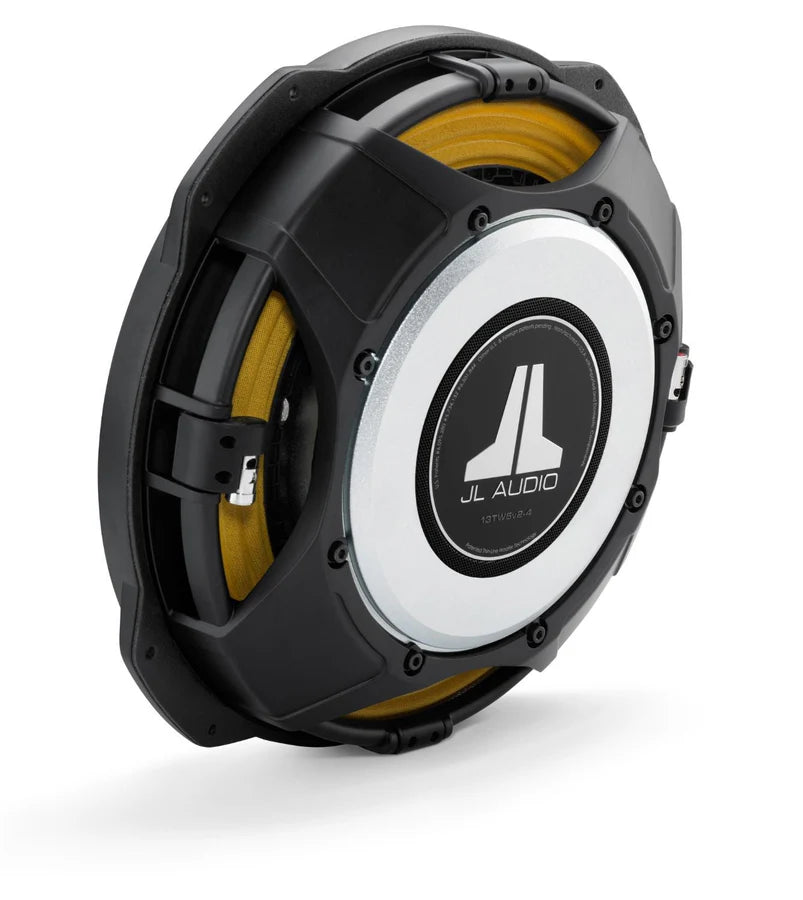

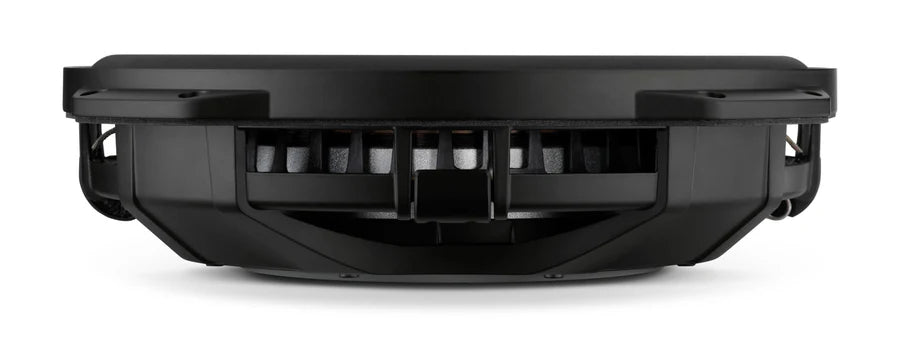

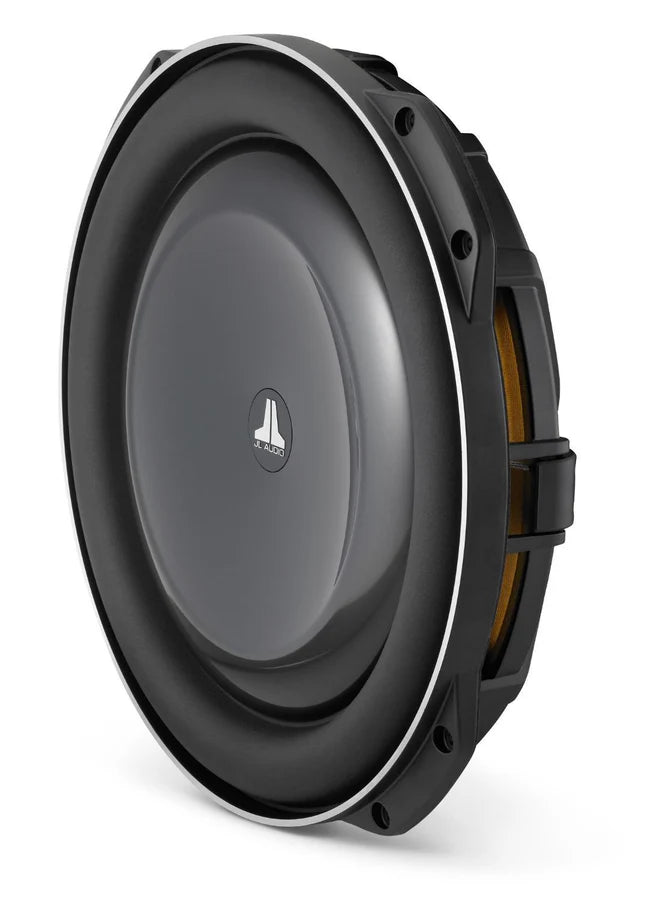

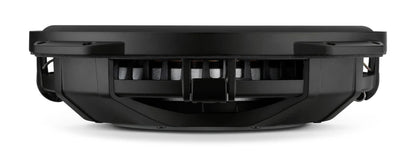

JL Audio 13TW5v2-2 Subwoofer this includes our specific subwoofer box
Elevate your car audio with the JL Audio 13TW5v2-2 Subwoofer, a shallow 13.5-inch subwoofer designed for powerful bass in compact spaces. Engineered with a 2.625-inch mounting depth and a 600W RMS power handling, this 2-ohm subwoofer features a 13% greater linear excursion than its predecessor, delivering deep, resonant sound for vehicle upgrades as of 06:55 PM AEST, Thursday, August 14, 2025.
Key Features of the JL Audio 13TW5v2-2
- Ultra-Shallow Design: 2.625-inch mounting depth for tight enclosures.
- Mica-Filled Polypropylene Cone: Ensures durability and consistent bass.
- Santoprene Rubber Surround: Provides resilience under high excursion.
- Cast Alloy Basket: Offers a robust platform for enhanced performance.
- Concentric Tube Suspension: Enables greater excursion in a low-profile design.
- Sealed Enclosure Optimized: Designed for 0.8 cu.ft. enclosures.
Specifications Table
| Specification | Details |
|---|---|
| Size | 13.5 inches (345 mm) |
| Voice Coil Type | Single Voice Coil (SVC) |
| Impedance | 2 Ohms |
| Power Handling (RMS) | 600W |
| Power Handling (Peak) | 1,200W |
| Sensitivity (1W/1m) | 85.51 dB |
| Frequency Response | 20 Hz - 200 Hz |
| Xmax | 11 mm |
| Mounting Depth | 66.7 mm (2.625 inches) |
| Mounting Diameter | 318 mm (12.52 inches) |
| Cone Material | Mica-Filled Polypropylene |
| Surround Material | Santoprene Rubber |
| Magnet Material | Ferrite |
| Voice Coil Diameter | 7 inches (177.8 mm) |
| Recommended Sealed Box Volume | 0.8 cu.ft. (22.7L) |
| Recommended Ported Box Volume | Not recommended |
| Weight | 9.3 kg (20.5 lbs) |
| Grille Included | Not included |
