Description

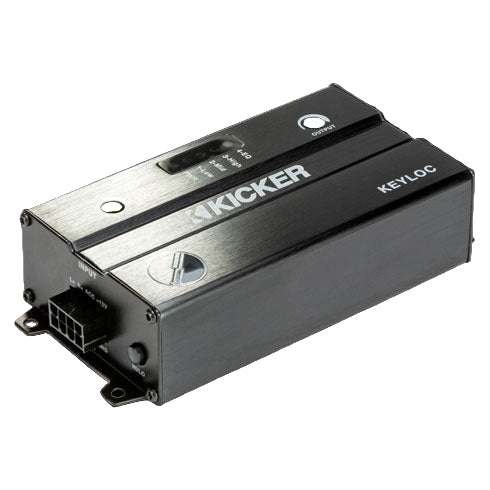

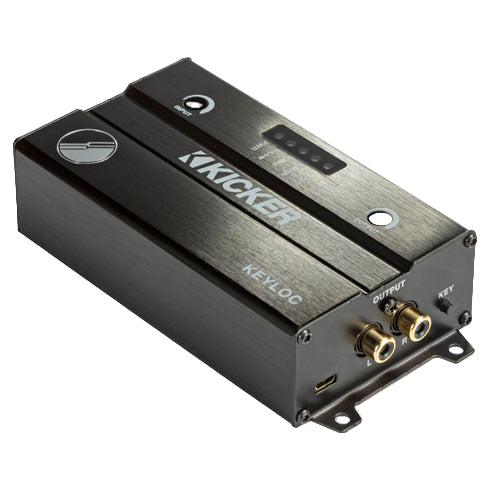

Kicker KEYLOC Smart Line-Out Converter
The Kicker KEYLOC is a revolutionary 2-channel DSP-powered line-output converter (LOC) designed for integrating aftermarket amplifiers with factory audio systems. It automatically detects and corrects factory EQ, crossovers, time delays, and all-pass filters, delivering a clean, full-range signal to your amp. This makes it ideal for adding subs or amps without signal loss or distortion.
Key Features
- Automatic Factory Correction: Uses patent-pending KEY algorithm to analyze and level-match signals, restoring full-range audio (Low: 20-200Hz, Mid: 200-2kHz, High: 2k-20kHz).
- LED Frequency Detection: Play test tones (available on Kicker's site) to identify speaker wire frequency ranges via LEDs—no tools needed.
- FIT 2+ Technology: Handles 125mV-10V low-level or 1V-40V high-level inputs with 60-ohm smart load for universal compatibility.
- All-Pass Filter Defeat: Optionally removes factory time delay for better imaging or one-seat tuning.
- Radio-Detect Function: Prevents "No Speakers Detected" errors on factory head units.
- Compact Design: Fits in most dashes; includes output gain controls.
Specifications Table
| Specification | Details |
|---|---|
| Type | 2-Channel DSP Line-Out Converter |
| Channels | 2 Input / 2 Output |
| Input Sensitivity | Low-Level: 125mV - 10V, High-Level: 1V - 40V |
| Input Impedance | 60 Ohms (Smart Load) |
| Frequency Correction | Full-Range (20Hz - 20kHz) |
| Output Voltage | Adjustable Gain |
| Dimensions (L x W x H) | 4.5" x 2.5" x 1.25" (114 x 64 x 32 mm) |
| Weight | 0.5 lbs (0.23 kg) |
| Power Requirement | 12V DC (from radio harness) |
| Accessories Included | Harness, mounting hardware |
| Warranty | 1 Year |
