Morel PowerSlim 12.4D shallow Subwoofer

Morel PowerSlim 12.4D shallow Subwoofer

$1,488.00 AUD
$1,488.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

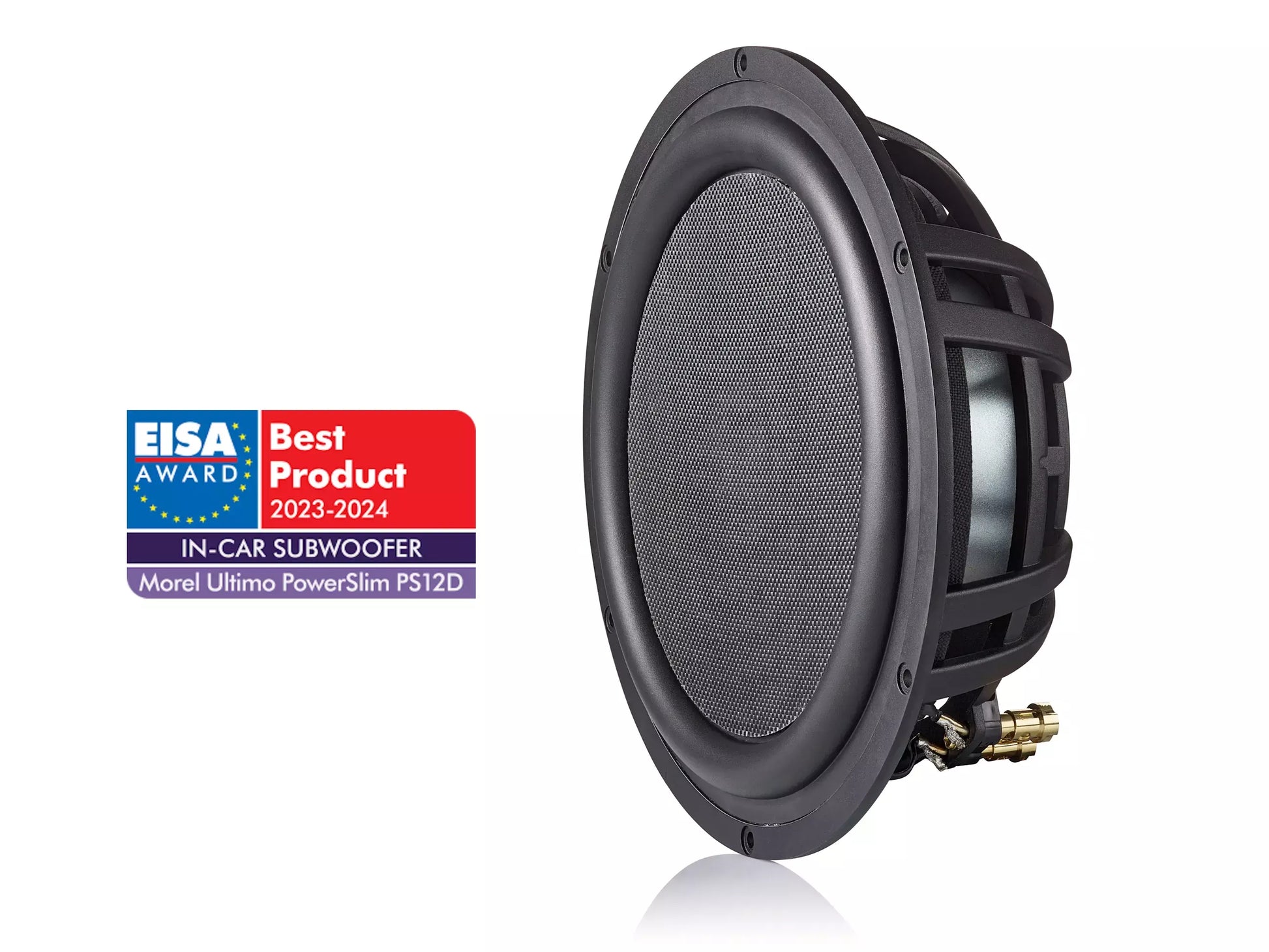

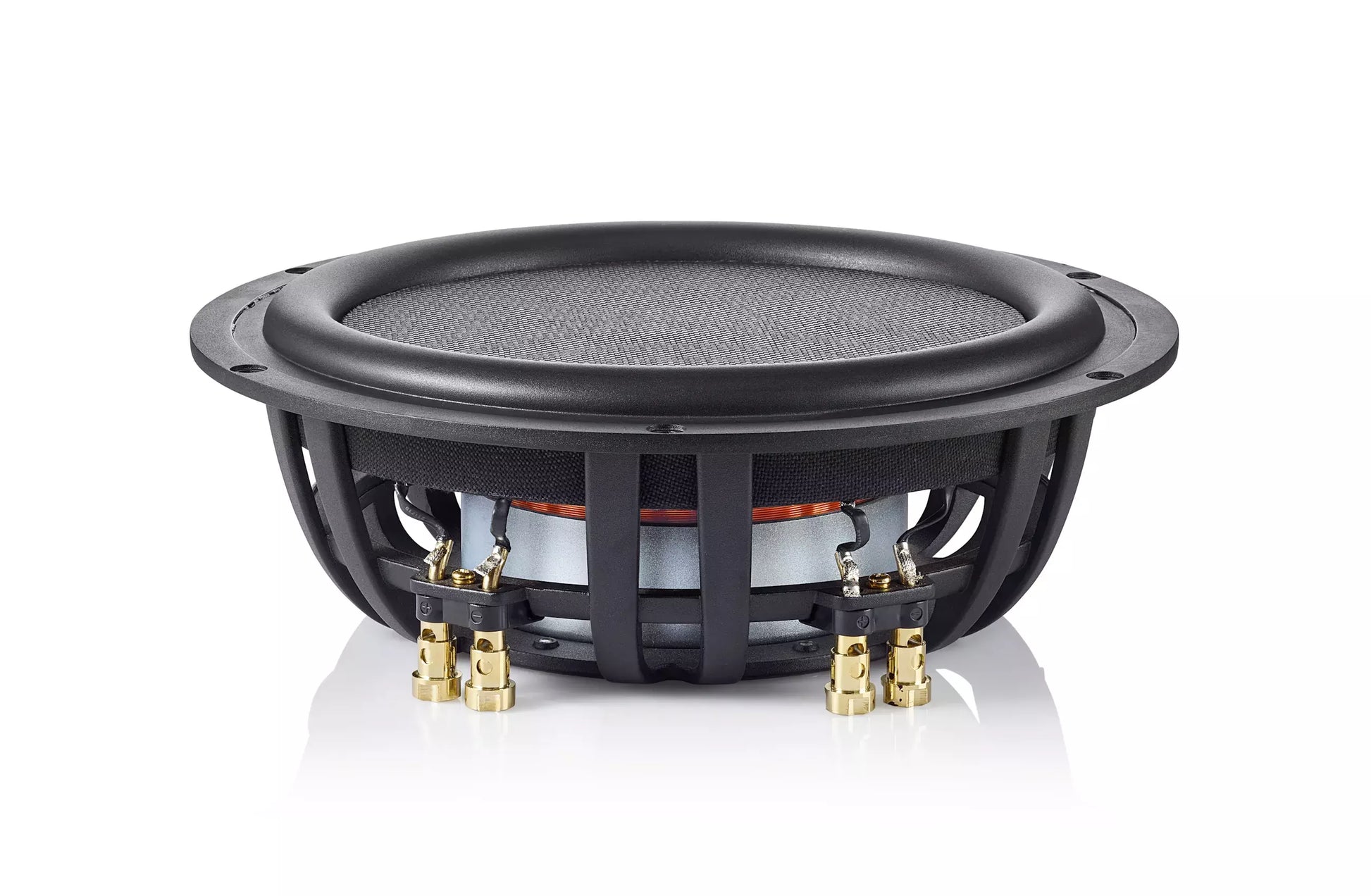

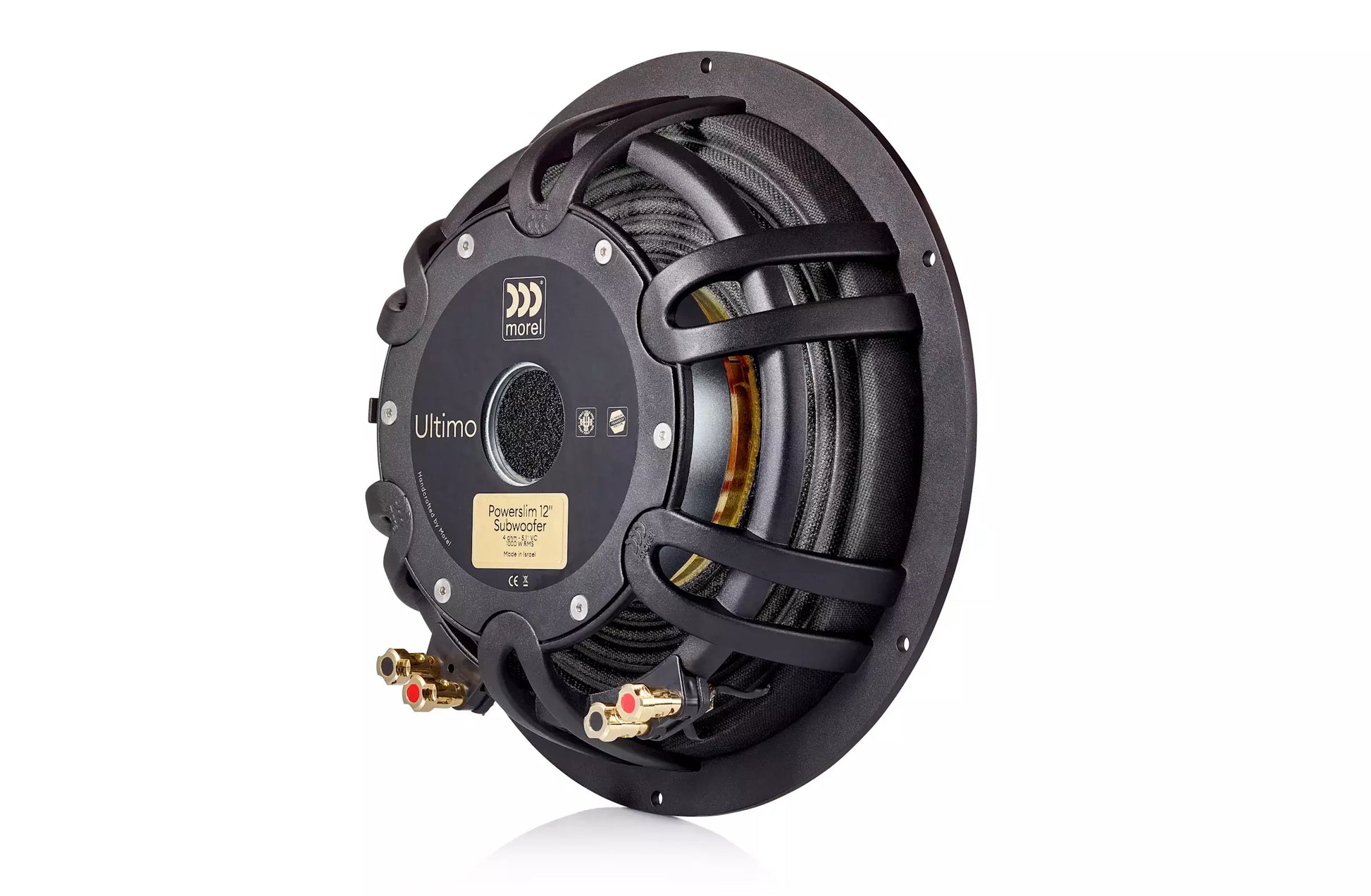

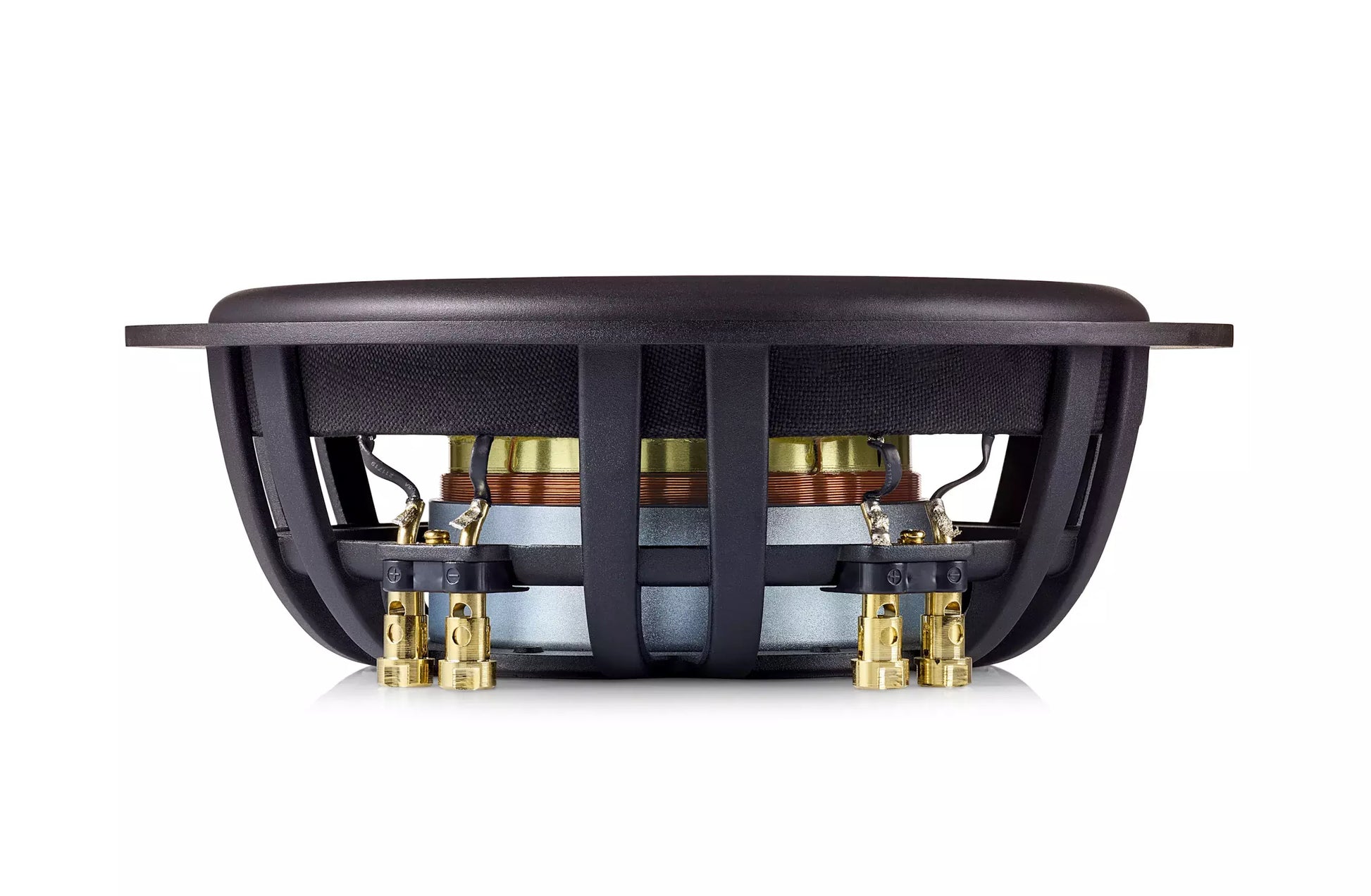

Morel PowerSlim 12.4D Shallow 12-Inch Subwoofer

Elevate your car audio with the Morel PowerSlim 12.4D, a shallow 12-inch subwoofer designed for powerful bass in compact spaces. Engineered with dual 4-ohm or 2-ohm voice coils and a 700W RMS power handling, this subwoofer features EVC™ technology and a 86mm mounting depth, delivering deep, accurate low-end performance

Key Features of the Morel PowerSlim 12.4D

  • Ultra-Shallow Design: 86mm mounting depth for easy integration in tight enclosures.
  • Dual Voice Coil: Configurable as 4+4 ohm or 2+2 ohm for flexible wiring.
  • HexaCore Carbon Fiber/Aluminum Honeycomb Cone: Ensures durability and precise sound reproduction.
  • EVC™ Motor Technology: External Voice Coil enhances power handling and reduces distortion.
  • Uniflow Die-Cast Aluminum Chassis: Provides structural strength and heat dissipation.
  • Included Grille: Features a sturdy design with Morel branding.

Specifications Table

Specification Details
Size 12 inches (300 mm)
Voice Coil Type Dual Voice Coil (DVC)
Impedance 4+4 Ohms
Power Handling (RMS) 700W
Power Handling (Peak) 2,100W
Sensitivity (1W/1m) 83 dB
Frequency Response 20 Hz - 500 Hz
Xmax Not specified
Mounting Depth 86 mm (3.39 inches)
Mounting Diameter Not specified
Cone Material HexaCore Carbon Fiber/Aluminum Honeycomb
Surround Material Not specified
Magnet Material Double Magnet EVC
Voice Coil Diameter 5.25 inches (133.35 mm)
Voice Coil Former Aluminum
Voice Coil Wire Hexatech Aluminum
Recommended Sealed Enclosure Volume 22.6 Litres (0.80 cu.ft.)
Recommended Ported Enclosure Volume 39.6 Litres (1.40 cu.ft.)
Weight Not specified
Grille Included Yes
