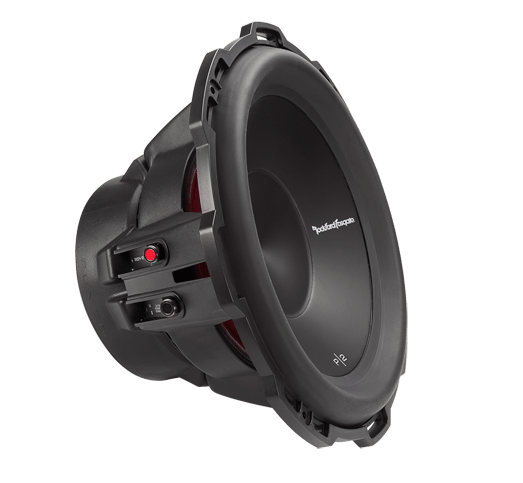

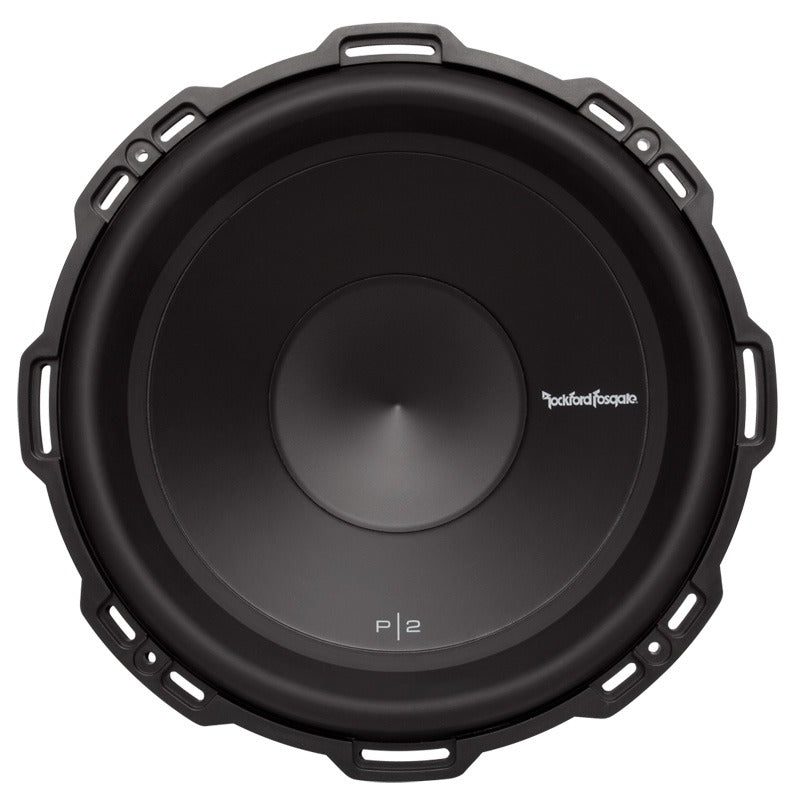

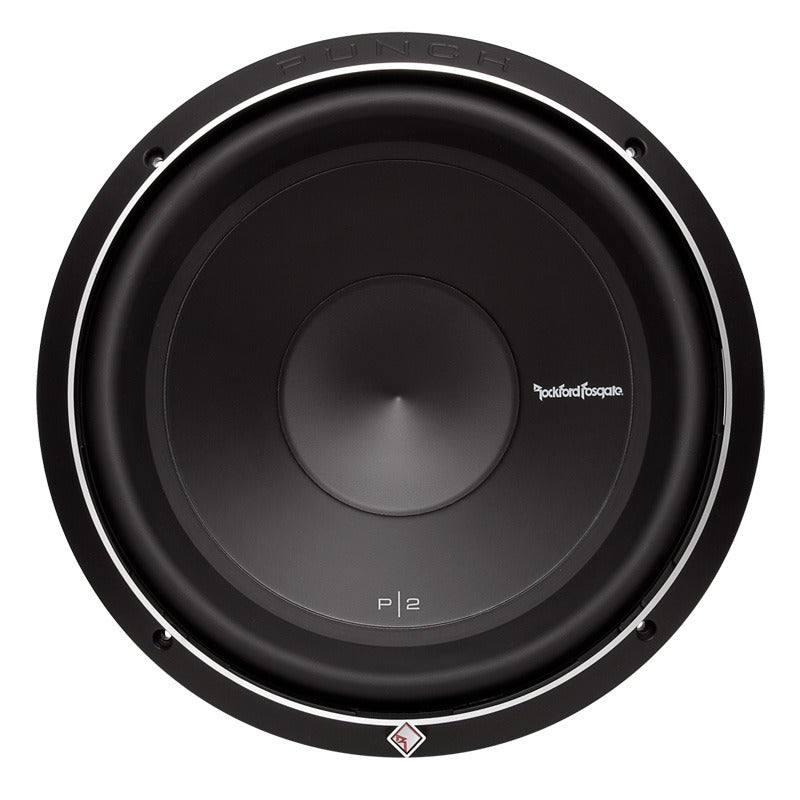

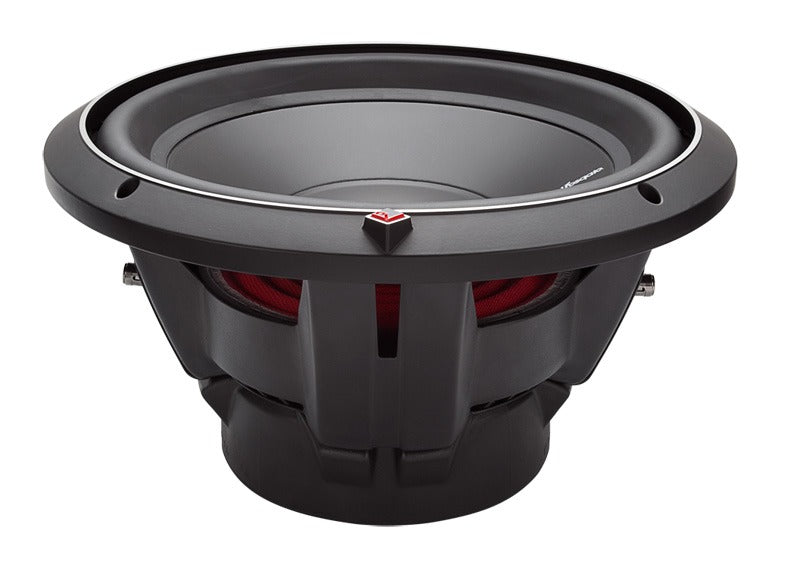

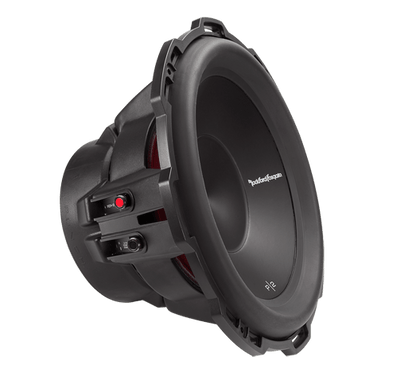

Rockford Fosgate P2 Dual 2 ohm 12 inch Subwoofer
Rockford Fosgate P2 Dual 2 ohm 12 inch Subwoofer
Couldn't load pickup availability
Share







Description
Rockford Fosgate P2D2-12 Punch 12-Inch P2 Dual 2-Ohm Subwoofer
Feel the bass with the Rockford Fosgate P2D2-12, a 12-inch Punch Series subwoofer featuring dual 2-ohm voice coils and 400 watts RMS power handling. Engineered in Tempe, Arizona, this subwoofer delivers powerful, hard-hitting bass with technologies like VAST and Kevlar-reinforced cones, ideal for car audio enthusiasts seeking robust low-end performance.
Key Features of the Rockford Fosgate P2D2-12
- VAST Surround Technology: Increases cone area by up to 25% for enhanced bass output, rivaling larger woofers.
- Kevlar Fiber Reinforced Paper Cone: Combines lightweight design with durability for impactful, low-distortion bass.
- Dual Linear Spider with 16 AWG Tinsel Leads: Embedded, stitched leads reduce fatigue and improve reliability.
- Anodized Aluminum Voice Coil Former: Dissipates heat up to 100°C, acting as a heat sink for consistent high-SPL performance.
- High-Temp Voice Coil with Nomex Collar: Enhances thermal stability with spun-laced reinforcement.
- StampCast Basket with Spider Venting: Minimizes resonance and keeps the motor cool for sustained performance.
- Custom 10-AWG Nickel-Plated Push Terminals: Ensures secure, high-power connections.
- Diamond Cut Cast Aluminum Trim Ring: Includes optional grille insert compatibility for a polished look.
- CEA-2031 Compliant: Guarantees accurate power handling for reliable operation.
- Klippel Verified: Optimized motor structure for peak performance.
Why Choose the Rockford Fosgate P2D2-12?
The Rockford Fosgate P2D2-12 is built for audio enthusiasts craving deep, punchy bass in mid-level systems. Its dual 2-ohm voice coils allow flexible wiring (1 or 4 ohms), delivering clean, impactful sound.
Specifications Table
Specification |
Details |
---|---|
Subwoofer Size |
12 inches |
Impedance |
Dual 2-Ohm (selectable 1 or 4 ohms) |
Power Handling (RMS) |
400 Watts |
Power Handling (Peak) |
800 Watts |
Mounting Depth |
6.40 inches (162 mm) |
Cutout Diameter |
11.22 inches (285 mm) |
Sealed Box Volume |
1.02 cu. ft. (28.8 Liters) |
Vented Box Volume |
1.79 cu. ft. (50.6 Liters, tuning at ~35 Hz) |
Sensitivity (1W/1m) |
86 dB |
Frequency Response |
27.2 Hz - 250 Hz |
Voice Coil Diameter |
2.25 inches (57 mm) |
Magnet Weight |
72.8 oz. (2.06 kg) |
Cone Material |
Kevlar Fiber Reinforced Paper |
Surround Material |
Rubber |
Basket Design |
StampCast Steel with Spider Venting |
Tinsel Leads |
Stitched 16 AWG, Embedded in Dual Linear Spider |
Speaker Connector |
Custom 10-AWG Nickel-Plated Push Terminals |
Woofer Displacement |
0.085 cu. ft. (2.4 Liters) |
Compliance |
CEA-2031, Klippel Verified |
Additional Features |
Anodized Aluminum Voice Coil Former, Nomex Collar, VAST Surround, Protective PVC Magnet Cover |
Grille Compatibility |
Optional P2P3G-12 (sold separately) |
Warranty |
1 Year (via authorized dealers) |
