Rockford Fosgate P2 Dual 2 ohm 12 inch Subwoofer
Rockford Fosgate P2 Dual 2 ohm 12 inch Subwoofer
Couldn't load pickup availability
Share







Description

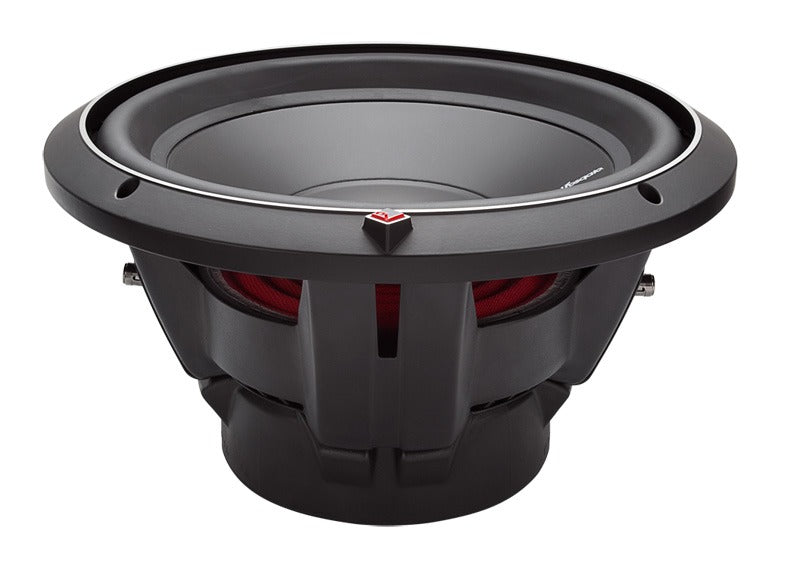

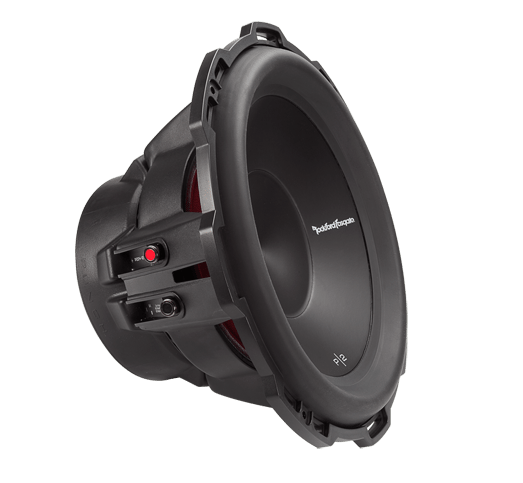

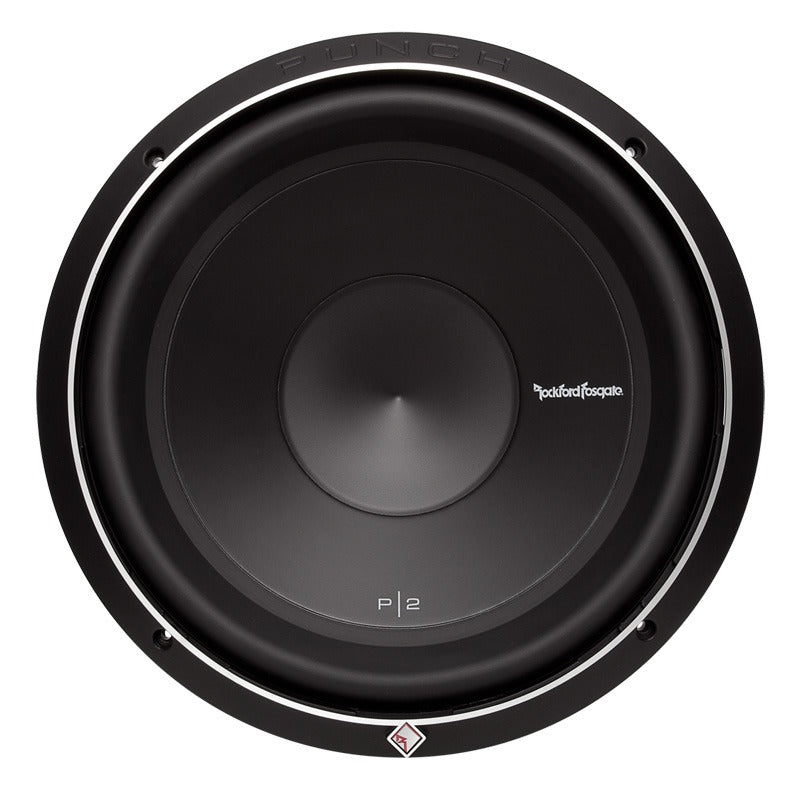

Rockford Fosgate P2D2-12 Punch 12-Inch 2-Ohm DVC Subwoofer
Elevate your car audio with the Rockford Fosgate P2D2-12, a 12-inch Punch P2 subwoofer delivering deep, powerful bass. Featuring dual 2-ohm voice coils and 400 watts RMS power handling, this subwoofer offers wiring flexibility for 1-ohm or 4-ohm configurations. Built with Kevlar-reinforced paper cones and VAST technology, the P2D2-12 ensures hard-hitting low-end performance and durability, ideal for enthusiasts seeking Punch bass in sealed or vented enclosures.
Key Features of the Rockford Fosgate P2D2-12
-
Dual 2-Ohm Voice Coils: Enables versatile wiring for optimal amplifier compatibility.
-
Kevlar-Reinforced Paper Cone: Provides impactful bass with minimal distortion.
-
VAST Surround Technology: Increases cone area by up to 25% for enhanced output.
-
Anodized Aluminum Voice Coil Former: Dissipates heat for reliable high-SPL performance.
-
Dual Linear Spider with 16 AWG Tinsel Leads: Ensures durability and high excursion.
-
StampCast Basket with FlexFit: Reduces resonance and simplifies mounting.
-
Diamond-Cut Cast Aluminum Trim Ring: Supports optional P2P3G-12 grille (sold separately).
-
CEA-2031 Compliant: Guarantees accurate power ratings for consistent performance.
-
1-Year Warranty: Backed by Rockford Fosgate’s quality assurance.
Why Choose the P2D2-12 Subwoofer?
The Rockford Fosgate P2D2-12 delivers robust bass and reliable engineering for car audio systems. Its high-temp 2.25-inch voice coil and spider plateau venting ensure longevity, while the FlexFit basket allows precise installation. Customers praise its clean, powerful sound, with a Best Car Audio reviewer noting, “Post break-in, low-frequency output increases significantly, delivering punchy bass.” Some users report sensitivity to over-powering, so proper tuning is crucial. Pair with a Rockford Fosgate P300X1 amplifier for optimal performance.
Specifications Table
Specification |
Details |
---|---|
Subwoofer Size |
12 inches |
Impedance |
Dual 2-Ohm |
Power Handling (RMS) |
400 Watts |
Power Handling (Peak) |
800 Watts |
Mounting Depth |
6.40 inches (162 mm) |
Cutout Diameter |
11.22 inches (285 mm) |
Sealed Enclosure Volume |
1.02 cu. ft. (28.8 Liters) |
Vented Enclosure Volume |
1.79 cu. ft. (50.6 Liters) |
Sensitivity (1W/1m) |
86 dB |
Frequency Response |
27.7 Hz - 250 Hz |
Voice Coil Diameter |
2.25 inches (57.15 mm) |
Voice Coil Type |
4-Layer, High-Temp with Nomex® Reinforcement |
Magnet Weight |
72.8 oz (2.06 kg) |
Cone Material |
Kevlar Fiber Reinforced Paper |
Surround Material |
Santoprene Rubber |
Basket Design |
StampCast with FlexFit |
Tinsel Leads |
Dual Linear Spider with Embedded 16 AWG |
Terminals |
Dual 10-AWG Nickel-Plated Push Terminals |
Woofer Displacement |
0.085 cu. ft. (2.4 Liters) |
Fs (Resonant Frequency) |
26 Hz |
Qts (Total Q) |
0.52 |
Qes (Electrical Q) |
0.56 |
Qms (Mechanical Q) |
6.50 |
Vas (Equivalent Volume) |
81.5 Liters |
Sd (Cone Area) |
570 cm² |
Xmax (Linear Excursion) |
13.3 mm |
Le (Voice Coil Inductance) |
3.7 mH |
Re (DC Resistance) |
3.30 Ohms |
Compliance |
CEA-2031 |
Optional Grille |
P2P3G-12 (sold separately) |
Shipping Weight |
15.6 lbs (7.07 kg) |
Warranty |
1 Year |
