Rockford Fosgate P3 Punch 8" P3S Shallow Dual 2 ohm Subwoofer
Rockford Fosgate P3 Punch 8" P3S Shallow Dual 2 ohm Subwoofer
Couldn't load pickup availability
Share

Description

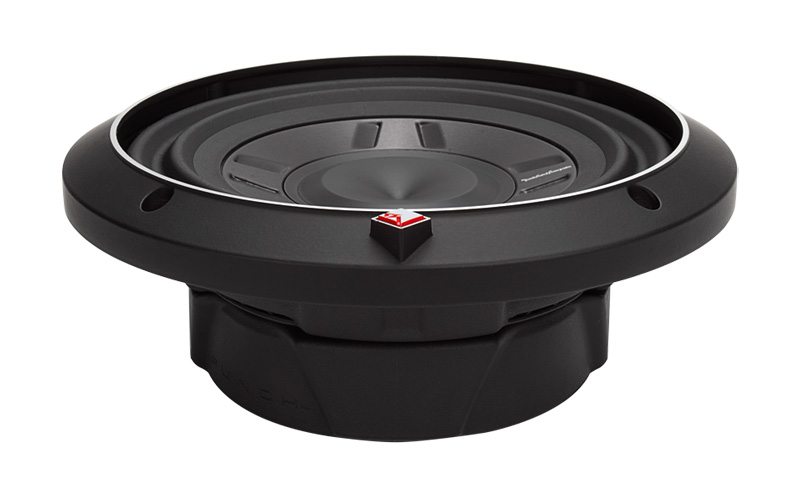

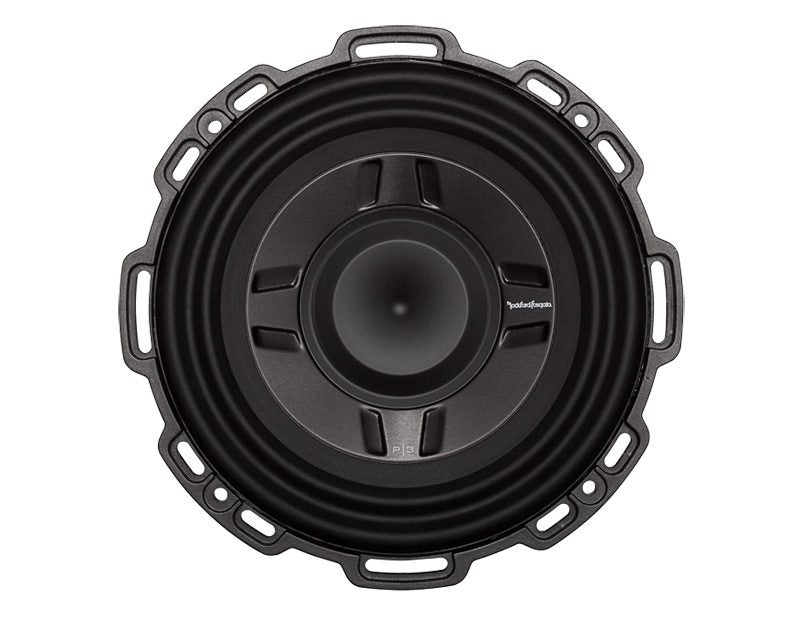

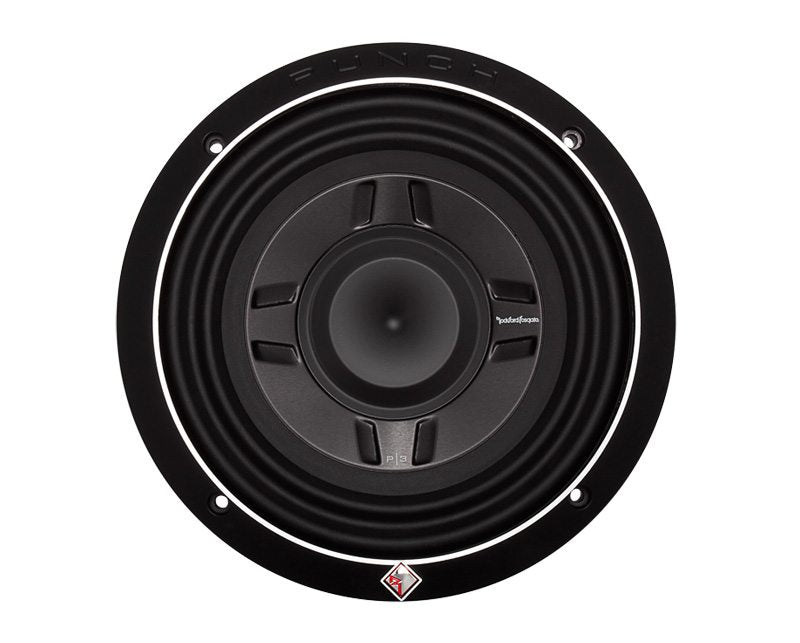

Rockford Fosgate P3SD2-8 Punch 8" P3S Shallow Dual 2-Ohm Subwoofer
Transform your car audio with the Rockford Fosgate P3SD2-8, an 8-inch shallow mount subwoofer featuring dual 2-ohm voice coils and 150 watts RMS power handling. Crafted in Tempe, Arizona, this Punch Series subwoofer delivers punchy, deep bass in space-limited environments, leveraging VAST technology and an anodized aluminum cone for exceptional sound quality.
Key Features of the Rockford Fosgate P3SD2-8
- VAST Surround Technology: Increases cone area by up to 25% for enhanced bass output, performing like a larger woofer.
- Anodized Aluminum Cone and Dustcap: Lightweight and durable with superior heat dissipation for clear sound.
- Dual Linear Spiders: Embedded 16 AWG tinsel leads improve reliability and reduce fatigue.
- StampCast Basket: Features integrated spider venting for strength and reduced resonance.
- Diamond Cut Cast Aluminum Trim Ring: Includes compatibility for an optional grille insert.
- CEA-2031 Compliant: Ensures accurate power handling for consistent performance.
- Klippel Verified: Optimized motor structure for peak efficiency.
Why Choose the Rockford Fosgate P3SD2-8?
The Rockford Fosgate P3SD2-8 is tailored for bass enthusiasts with limited space, offering tight, impactful sound in shallow enclosures. Its dual 2-ohm voice coils provide wiring flexibility for various configurations
Specifications Table
|
Specification |
Details |
|---|---|
|
Subwoofer Size |
8 inches |
|
Impedance |
Dual 2-Ohm (configurable) |
|
Power Handling (RMS) |
150 Watts |
|
Power Handling (Peak) |
300 Watts |
|
Mounting Depth |
2.66 inches (67.5 mm) |
|
Cutout Diameter |
7.13 inches (181.0 mm) |
|
Woofer Displacement |
0.040 cu. ft. (1.13 Liters) |
|
Sensitivity (1W/1m) |
82 dB |
|
Frequency Response |
38 Hz - 250 Hz |
|
Voice Coil Diameter |
2 inches (50.8 mm) |
|
Magnet Weight |
37.5 oz. (1.06 kg) |
|
Cone Material |
Anodized Aluminum |
|
Surround Material |
Santoprene (VAST Technology) |
|
Basket Design |
StampCast with Integrated Spider Venting |
|
Tinsel Leads |
16 AWG, Embedded in Dual Spiders |
|
Speaker Connector |
10 AWG Nickel-Plated Push Terminals |
|
Compliance |
CEA-2031, Klippel Verified |
|
Additional Features |
Shallow Motor Assembly, Optional Grille |
|
Weight |
8.8 lbs (3.99 kg) |
|
Warranty |
1 Year (via authorized dealers) |
