Rockford Fosgate P3 Punch 8" P3S Shallow Dual 4 ohm Subwoofer
Rockford Fosgate P3 Punch 8" P3S Shallow Dual 4 ohm Subwoofer
Couldn't load pickup availability
Share

Description

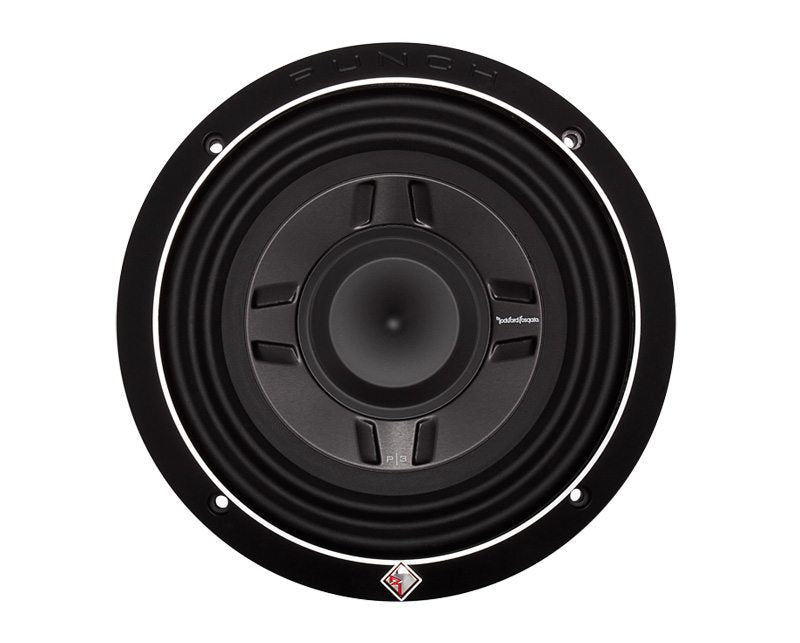

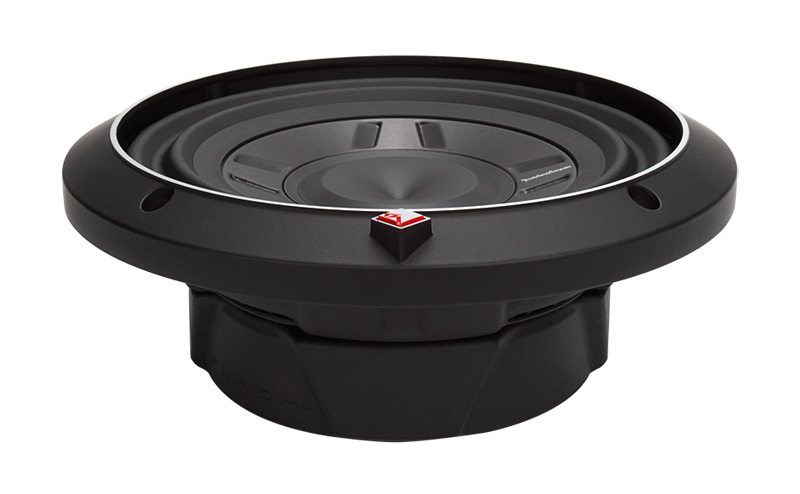

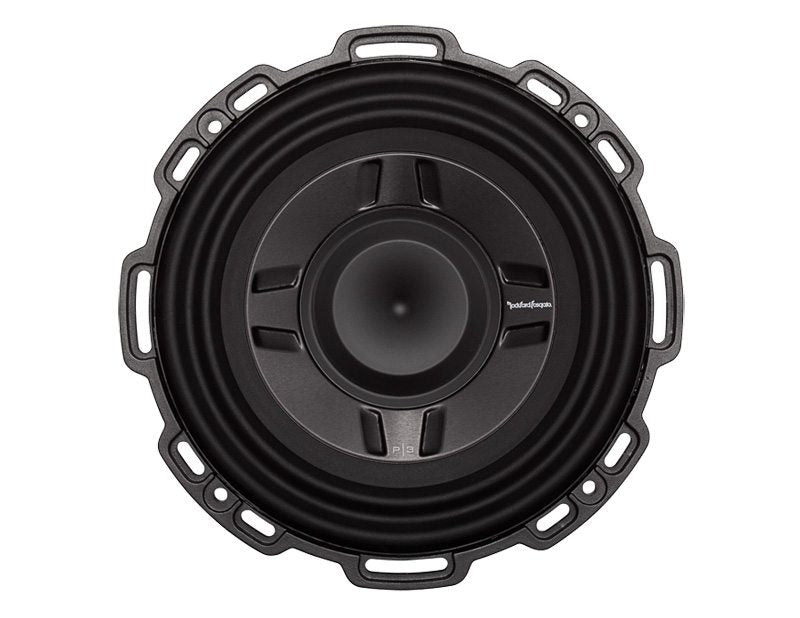

Rockford Fosgate P3SD4-8 8-Inch Punch P3S Shallow Mount Subwoofer
Enhance your car audio with the Rockford Fosgate P3SD4-8, an 8-inch shallow mount subwoofer from the Punch P3S series. Designed for tight spaces, this subwoofer delivers powerful, deep bass with dual 4-ohm voice coils and 150 watts RMS power handling. Perfect for compact vehicles or custom setups, the P3SD4-8 combines durability and performance, making it a top choice for car audio enthusiasts seeking high-quality sound in limited spaces.
Key Features of the Rockford Fosgate P3SD4-8
- Ultra-Shallow Design: 2.66-inch mounting depth fits in compact enclosures or under seats.
- Dual 4-Ohm Voice Coils: Offers flexible wiring for compatibility with various amplifiers.
- Anodized Aluminum Cone: Provides rigidity for clear bass with minimal distortion.
- VAST Surround Technology: Increases cone area by up to 25% for enhanced bass output.
- StampCast Basket with Spider Venting: Improves cooling for reliable high-volume performance.
- M-Roll Santoprene Surround: Ensures consistent excursion and durability.
- CEA-2031 Compliant: Guarantees accurate power ratings for dependable operation.
- 1-Year Warranty: Backed by Rockford Fosgate’s quality assurance.
Why Choose the P3SD4-8 Shallow Mount Subwoofer?
The Rockford Fosgate P3SD4-8 is ideal for vehicles where space is limited but bass is non-negotiable. Its shallow design makes it perfect for trucks, compact cars Pair it with a Rockford Fosgate amplifier like the PBR300X1 for optimal results.
Specifications Table
|
Specification |
Details |
|---|---|
|
Subwoofer Size |
8 inches |
|
Impedance |
Dual 4-Ohm |
|
Power Handling (RMS) |
150 Watts |
|
Power Handling (Peak) |
300 Watts |
|
Mounting Depth |
2.66 inches (67.5 mm) |
|
Cutout Diameter |
7.13 inches (181.0 mm) |
|
Sealed Enclosure Volume |
0.25 cu. ft. (7.0 Liters) |
|
Vented Enclosure Volume |
0.75 cu. ft. (21.2 Liters) |
|
Sensitivity |
82 dB |
|
Frequency Response |
38-250 Hz |
|
Voice Coil Diameter |
2 inches (with Nomex reinforcement collar) |
|
Cone Material |
Anodized Aluminum |
|
Surround Material |
M-Roll Santoprene |
|
Basket Design |
StampCast with Integrated Spider Venting |
|
Tinsel Leads |
Dual Linear Spider with Embedded 16 AWG |
|
Terminals |
10-AWG Nickel-Plated Push Terminals |
|
Magnet Weight |
37.5 oz. (1.06 Kg) |
|
Woofer Displacement |
0.040 cu. ft. (1.13 Liters) |
|
Shipping Weight |
8.8 lbs. (3.99 Kg) |
|
Compliance |
CEA-2031 |
|
Warranty |
1 Year |
