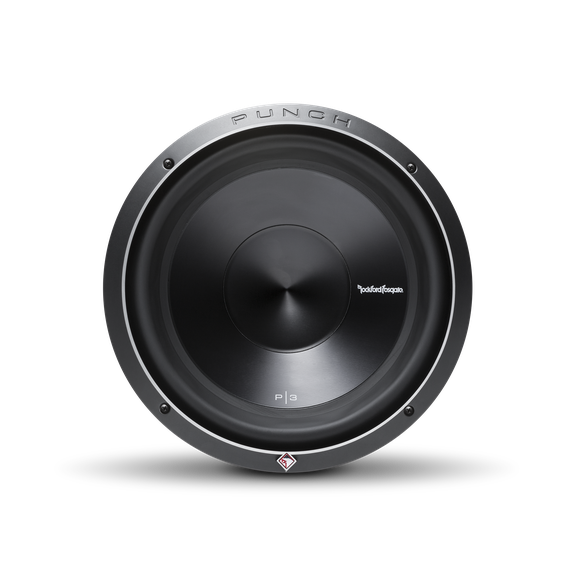

Rockford Fosgate Punch P3 12" DVC Subwoofer
Model: P3D4-12 (Dual 4-Ohm)
600W RMS | 1200W Peak | High-Performance Bass
The Rockford Fosgate Punch P3 12" Subwoofer is the flagship of the Punch series, delivering hard-hitting, deep bass and powerful performance. Engineered for serious sound systems, the P3D4-12 models feature dual voice coils, 600 Watts RMS power handling, and advanced cooling technologies to keep performance high and distortion low.
Designed for both cars and trucks, the P3 features a rugged yet stylish build with an anodized aluminum cone and dustcap, spider venting, and a hybrid stamp-cast basket that reduces resonance and weight while maintaining strength. It also includes a diamond-cut cast aluminum trim ring compatible with an optional grille for extra protection and aesthetics.
Key Features:
- 600 Watts RMS / 1200 Watts Max Power Handling
- Dual 4-Ohm Voice Coils (DVC)
- Anodized Aluminum Cone & Dustcap – lightweight, durable, and heat-resistant
- VAST Technology – increases cone surface area by up to 25% for louder output
- Dual Linear Spider with 16 AWG Tinsel Leads – for consistent motion and durability
- FlexFit Basket – allows for easier and more precise installation
- Spider Venting – enhances motor cooling during long play sessions
- Hybrid Stamp-Cast Basket – strength of a cast basket with the weight of a stamped one
- 10 AWG Nickel-Plated Push Terminals – for secure, high-current connections
- Protective PVC Magnet Cover – shields the motor structure
- 1-Year Warranty – peace of mind with Rockford Fosgate’s quality guarantee
Ideal For:
- Loud, clean bass with clarity and depth
- Custom car or truck audio installations
- Users looking for Rockford Fosgate’s top-tier Punch subwoofer performance
Specification | Details |
---|---|
Power Handling (RMS / Max) | 600W / 1200W |
Size | 12" |
Nominal Impedance | Dual 4-Ohm |
Voice Coil Diameter | 2.5" (65.5 mm) |
Magnet Weight | 96 oz (2.73 kg) |
Mounting Depth | 6.66 in (169.3 mm) |
Woofer Displacement | 0.106 cu. ft. (3.0 Liters) |
Cutout Diameter | 11.25 in (285 mm) |
Speaker Connector | Dual 10 AWG Compression Terminals |
SPL (dB @ 1w/1m) | 85 dB |
Shipping Weight | 20.9 lbs (9.48 kg) |
Fs (Hz) | 26.5 Hz |
Qts / Qes / Qms | 0.49 / 0.53 / 6.70 |
Le (mH) | 4.25 |
Vas (Liters) | 57.7 |
Xmax (mm) | 15.2 mm |
Sd (cm²) | 570 |
Subwoofer Type | Standard |
Voice Coil Type | Dual Voice Coil (DVC) |
Sealed Enclosure Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
Vented Enclosure Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
CEA-2031 Compliant | Yes |
