Description

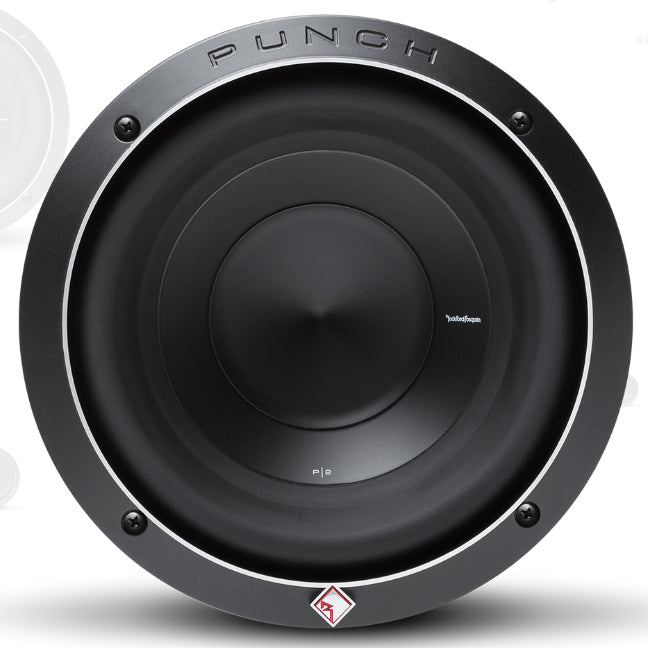

Punch 8" P2 2-Ohm DVC Subwoofer (P2D2-8)
The Rockford Fosgate P2 8" subwoofer carries on the legacy of "The PUNCH." Featuring a Dual 2-Ohm voice coil and 250 Watts RMS power handling, the P2D2-8 delivers powerful bass with exceptional clarity. It includes a cast aluminum trim ring that accommodates an optional grille insert for protection and style.
Built for impact, the P2 uses Kevlar fiber-reinforced paper cones and VAST technology, increasing the surface cone area by up to 25% for enhanced bass response. This subwoofer performs best in sealed and vented enclosures, making it versatile for a range of custom installations.
Features:
- Diamond-cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Kevlar fiber-reinforced paper cone for durability and performance
- High-temp voice coil with spun-laced Nomex reinforcement collar
- Protective PVC textured magnet cover
- Extended pole piece with bumped vented backplate for heat dissipation
- Custom 10-AWG nickel-plated push terminals
- Dual linear spider with embedded 16 AWG tinsel leads
- 1-Year Warranty
| Specification | Details |
|---|---|
| Size | 8" |
| Power Handling (Watts RMS) | 250 Watts RMS, 500 Watts Max |
| Voice Coil Diameter | 2.25" (57.7 mm) |
| Nominal Impedance | Dual 2-Ohm |
| Mounting Depth | 4.76 in. (120.8 mm) |
| Woofer Displacement | 0.042 cu. ft. (1.2 Liters) |
| SPL (dB @ 1w/1m) | 83 |
| Fs (Hz) | 39.6 |
| Qts | 0.46 |
| Qes | 0.51 |
| Qms | 5.40 |
| Xmax (mm) | 7.8 |
| Magnet Weight (oz) | 49 oz. (1.38 kg) |
| Cutout Diameter | 7.13 in. (181 mm) |
| Re (Ohms) | 3.40 |
| Le (mH) | 2.9 |
| Vas (Liters) | 9.9 |
| Sd (cm²) | 221 |
| Speaker Connector | Dual 10 AWG compression |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.23 cu. ft. (6.5 Liters) |
| Vented Box Volume (Vb) | 0.65 cu. ft. (18.4 Liters) |
| Shipping Weight | 10.763 Lbs. (4.88 kg) |
| CEA-2031 Compliant | Yes |
