Rockford Fosgate T1 Power Dual 2 ohm 12" Subwoofer
Rockford Fosgate T1 Power Dual 2 ohm 12" Subwoofer
Couldn't load pickup availability
Share







Description
Rockford Fosgate T1D212 Power 12-Inch T1 Dual 2-Ohm Subwoofer
Unleash thunderous bass with the Rockford Fosgate T1D212, a 12-inch Power Series subwoofer featuring dual 2-ohm voice coils and 800 watts RMS power handling. Engineered in Tempe, Arizona, this subwoofer delivers deep, impactful bass with advanced technologies like VAST and FlexFit for high-performance sound in custom installations.
Key Features of the Rockford Fosgate T1D212
- VAST Surround Technology: Increases cone area by up to 25%, enabling performance akin to a larger woofer.
- FlexFit Basket: Slot-mounted frame ensures precise mounting adjustments for versatile installations.
- Anodized Aluminum Voice Coil Former: Acts as a heat sink, dissipating heat up to 100°C for reliable high-SPL performance.
- SWIFT Terminal: Selectable Woofer Impedance Fused Termination simplifies impedance configuration (1 or 4 ohms) with fused protection.
- Kevlar Fiber Reinforced Paper Cone: Lightweight and durable for accurate, low-distortion bass.
- Symmetrical Dual Progressive Roll Spiders: Enhances stability during high excursion for consistent performance.
- Inductive Damping Heat Sink (IDHS): Reduces distortion and back EMF while improving thermal efficiency.
- CEA-2031 Compliant: Ensures accurate power handling for dependable operation.
- Klippel Verified: Optimized motor structure and voice coil alignment for maximum performance.
Why Choose the Rockford Fosgate T1D212?
The Rockford Fosgate T1D212 is crafted for bass enthusiasts demanding powerful, clean sound in high-performance audio systems. Its dual 2-ohm voice coils provide wiring flexibility for various configurations, delivering hard-hitting bass.
Specifications Table
Specification |
Details |
---|---|
Subwoofer Size |
12 inches |
Impedance |
Dual 2-Ohm (selectable 1 or 4 ohms via SWIFT) |
Power Handling (RMS) |
800 Watts |
Power Handling (Peak) |
1600 Watts |
Mounting Depth |
6.75 inches (171 mm) |
Cutout Diameter |
11.25 inches (285 mm) |
Sealed Box Volume |
1.25-2.25 cu. ft. (35.4-63.7 Liters) |
Vented Box Volume |
2.66 cu. ft. (75.3 Liters, tuning at 36 Hz) |
Sensitivity (1W/1m) |
85 dB |
Frequency Response |
28 Hz - 250 Hz |
Voice Coil Diameter |
3 inches (76 mm) |
Magnet Weight |
123 oz. (3.49 kg) |
Cone Material |
Kevlar Fiber Reinforced Paper |
Surround Material |
High Excursion TPE (Thermo-Plastic Elastomer) |
Basket Design |
Precision Cast and Vented Aluminum Alloy (FlexFit) |
Tinsel Leads |
Periodic-Stitched, Fatigue-Resistant |
Speaker Connector |
8 AWG Insulated All-Metal Compression Terminal |
Woofer Displacement |
0.099 cu. ft. (2.8 Liters) |
Compliance |
CEA-2031, Klippel Verified |
Additional Features |
Anodized Aluminum Dust Cap, Dual Spiders, IDHS Heat Sink, SWIFT Terminal |

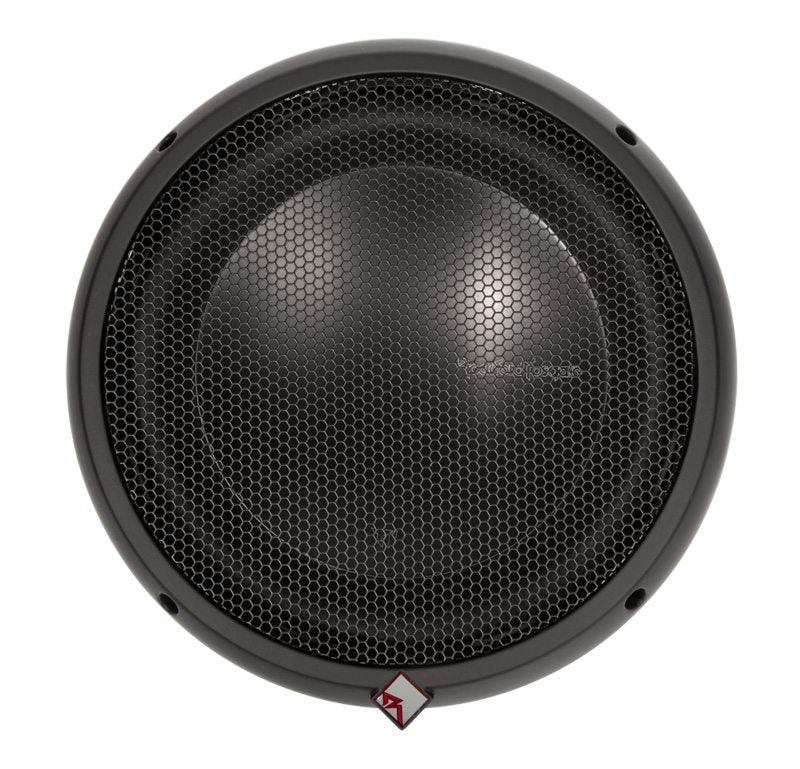

Grille |
Included (Integral Trim Ring, T1SG-12 Compatible) |
Warranty |
1 Year (via authorized dealers) |
