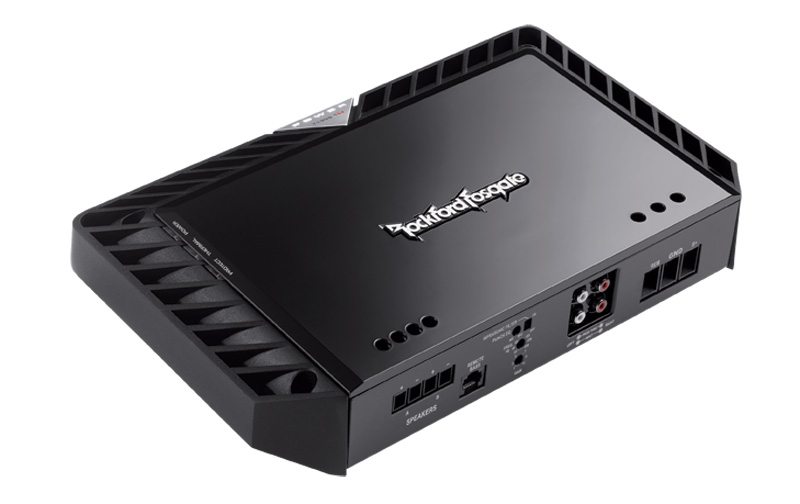

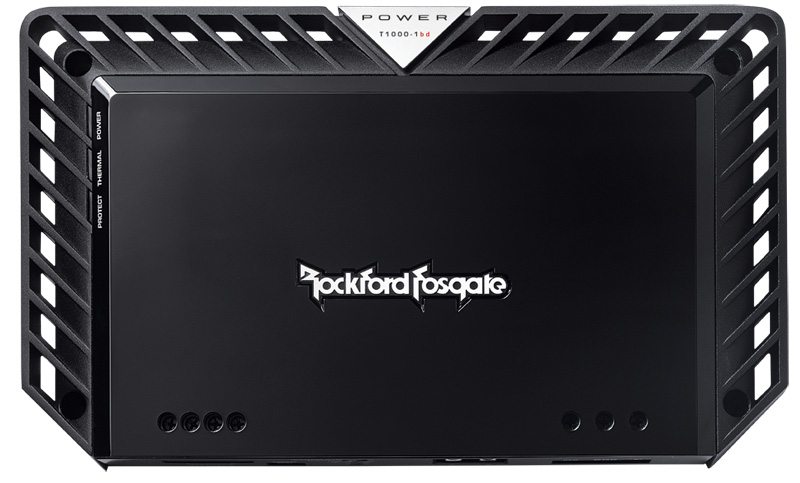

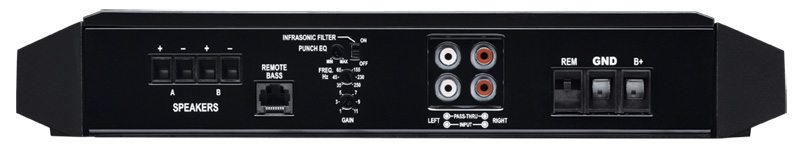

Rockford Fosgate T1000-1BDCP mono Amplifier

Rockford Fosgate T1000-1BDCP mono Amplifier

$1,469.00 AUD
$1,469.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Description

Rockford Fosgate T1000-1BDCP Power 1000 Watt Class-BD Constant Power Mono Amplifier

Unleash powerful bass with the Rockford Fosgate T1000-1BDCP, a Power Series mono amplifier delivering 1000 watts RMS across 1 to 4 ohms for deep, consistent low-end performance. Engineered in Tempe, Arizona, this Class-BD amplifier uses advanced technologies like Constant Power and MEHSA3 cooling to provide efficient, clean power for high-performance car audio systems.

Key Features of the Rockford Fosgate T1000-1BDCP

  • Constant Power Technology: Maintains 1000W RMS output at 1-4 ohms by dynamically adjusting voltage and current, ensuring stable performance.
  • Class-BD Technology: Achieves over 80% efficiency, optimizing bass output with minimal heat compared to Class-A/B designs.
  • MEHSA3 Cooling: Maximizes heat dissipation with up to five times better efficiency than standard FET mounting, reducing distortion.
  • C.L.E.A.N. Setup: Calibrated Level Eliminates Audible Noise with clip LEDs for precise gain adjustment to prevent distortion.
  • DSM Technology: Utilizes 1% tight-tolerance components for improved circuit efficiency and lower operating temperatures.
  • Punch EQ2 Bass Boost: Provides 0 to +18dB boost at 45Hz with adjustable bandwidth for enhanced low-end control.
  • Infrasonic Filter: 28Hz high-pass filter eliminates ultra-low frequencies to protect subwoofers and improve efficiency.
  • High-Level Inputs with Auto Turn-On: Supports speaker-level inputs for seamless OEM integration without additional converters.
  • Optional PLC2 Remote: Punch Level Control (sold separately) allows remote bass adjustment with clip indication.
  • CEA-2006 Compliant: Ensures accurate power ratings for reliable operation.

Why Choose the Rockford Fosgate T1000-1BDCP?

The Rockford Fosgate T1000-1BDCP is designed for bass enthusiasts seeking uncompromising power and clean audio in subwoofer-driven systems. Its Constant Power technology delivers consistent output regardless of impedance, making it versatile for various configurations.

Specifications Table

Specification

Details

Number of Channels

1 (Mono)

Rated Power (RMS, CEA-2006)

700W x 1 @ 4Ω, 1000W x 1 @ 2Ω, 1000W x 1 @ 1Ω

Dynamic Power (PVC/PowerCube®)

787W x 1 @ 4Ω, 1155W x 1 @ 2Ω, 1287W x 1 @ 1Ω

Total Power (Sum of Rated Power)

1000 Watts

Frequency Response

20Hz - 250Hz (±1.0 dB)

Total Harmonic Distortion (THD+Noise)

<1.0% @ 4Ω, 2Ω, 1Ω

Signal-to-Noise Ratio

>85 dB (at rated RMS power)

Efficiency (Average)

>86% @ 4Ω

Input Sensitivity

150mV - 12V

Signal Input

1 RCA Pair (Low/High Level)

Signal Output

1 RCA Pair (Low Level Pass-Thru)

Crossover Controls

Low-Pass: 35-250Hz @ 24dB/octave Butterworth

Infrasonic Filter

28Hz @ 12dB/octave

Tone Controls

Punch EQ2 Bass: 0 to +18dB @ 45Hz, Variable Bandwidth

Remote Control

Optional PLC2 Punch Level Control (not included)

Power Wire Gauge

4 AWG

Speaker Wire Gauge

8 AWG to 18 AWG

Power Input Connector

Captive C-Clamp

Speaker Output Connector

Captive C-Clamp

Cooling

Convection Heatsink

Operating Voltage

9V - 16V DC

Recommended Fuse (Not Included)

150A

Average Current Draw (13.8V Music)

65A

Max Current Draw (13.8V Sinewave)

130A

Visual Indicators

Power/Protect LED, Input/Output Clip LEDs

Circuit Topology Class

Class-BD

Dimensions (H x W x D)

2.38" x 7.76" x 13.28" (6.05 x 19.71 x 33.73 cm)

Weight

12.2 lbs (5.53 kg)

Compliance

CEA-2006

Warranty

1 Year (via authorized dealers)
