Rockford Fosgate T1000X5ad Power Series 5ch Amplifier

Description

 The T1000X5ad Element Ready multi-channel amplifier is a 1000 watt RMS unit built on our proprietary Class ad platform designed to deliver unprecidented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit. Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. The Amplifier is also compatible with our PLC2 level remote control allowing remote output level control of the sub channel.

• Class BD
• Rockford Fosgate proprietary Class AD technology

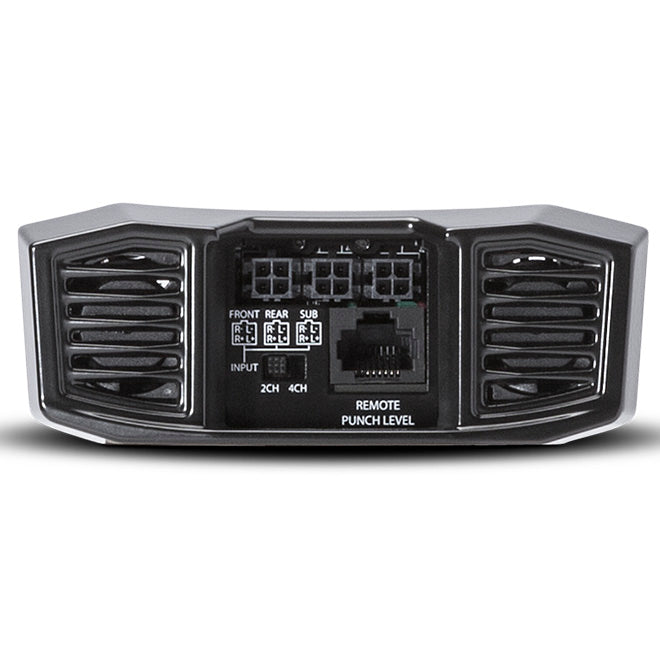

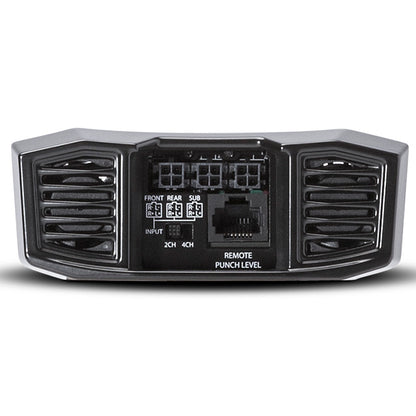

• Differential inputs with high level auto turn-on feature
• 4/2 Ohm muti-impedance Constant Power
• Remote-Out feature when using high level inputs
• 2013 PLC2 remote ready
• C.L.E.A.N. input/output clip detection and indicator LEDs

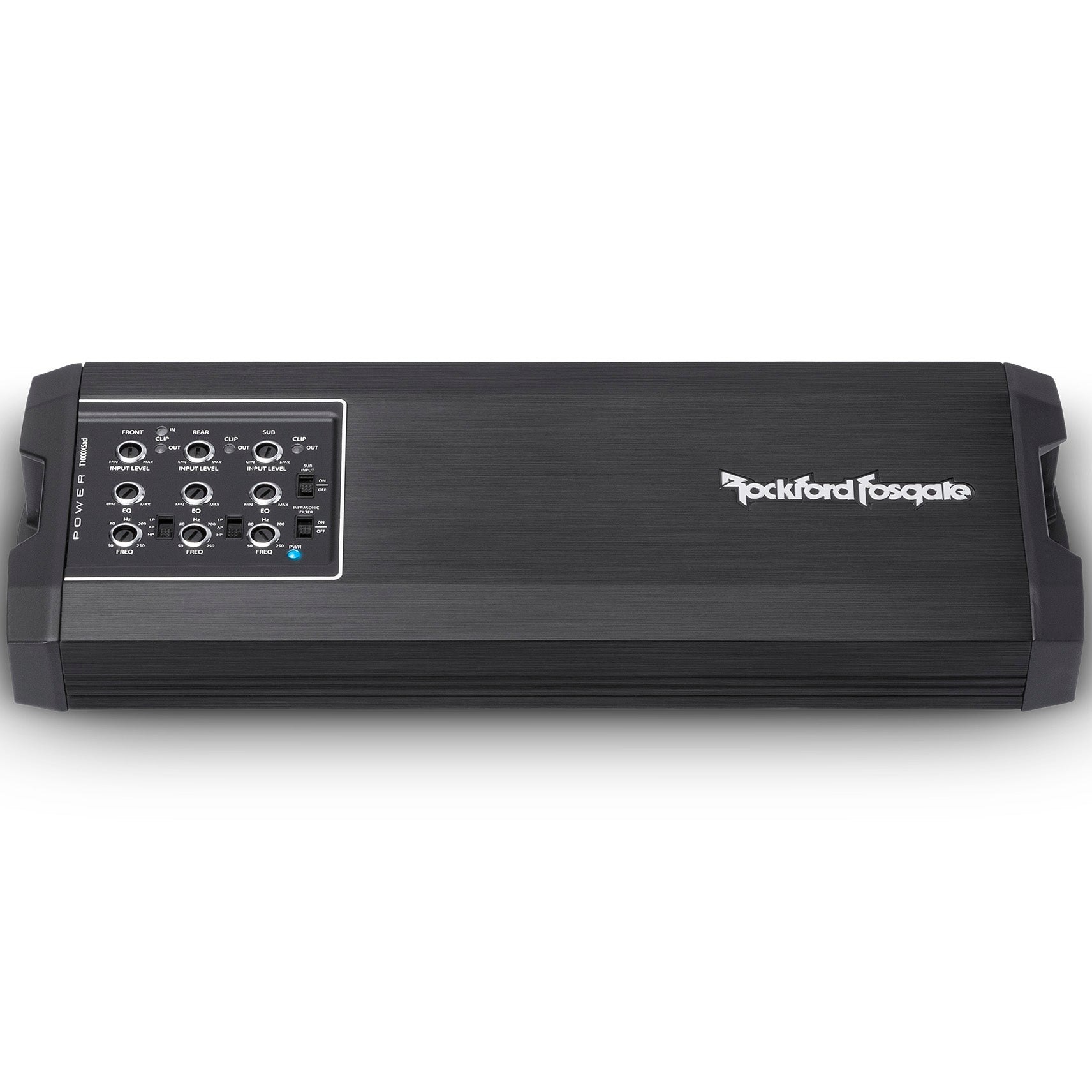

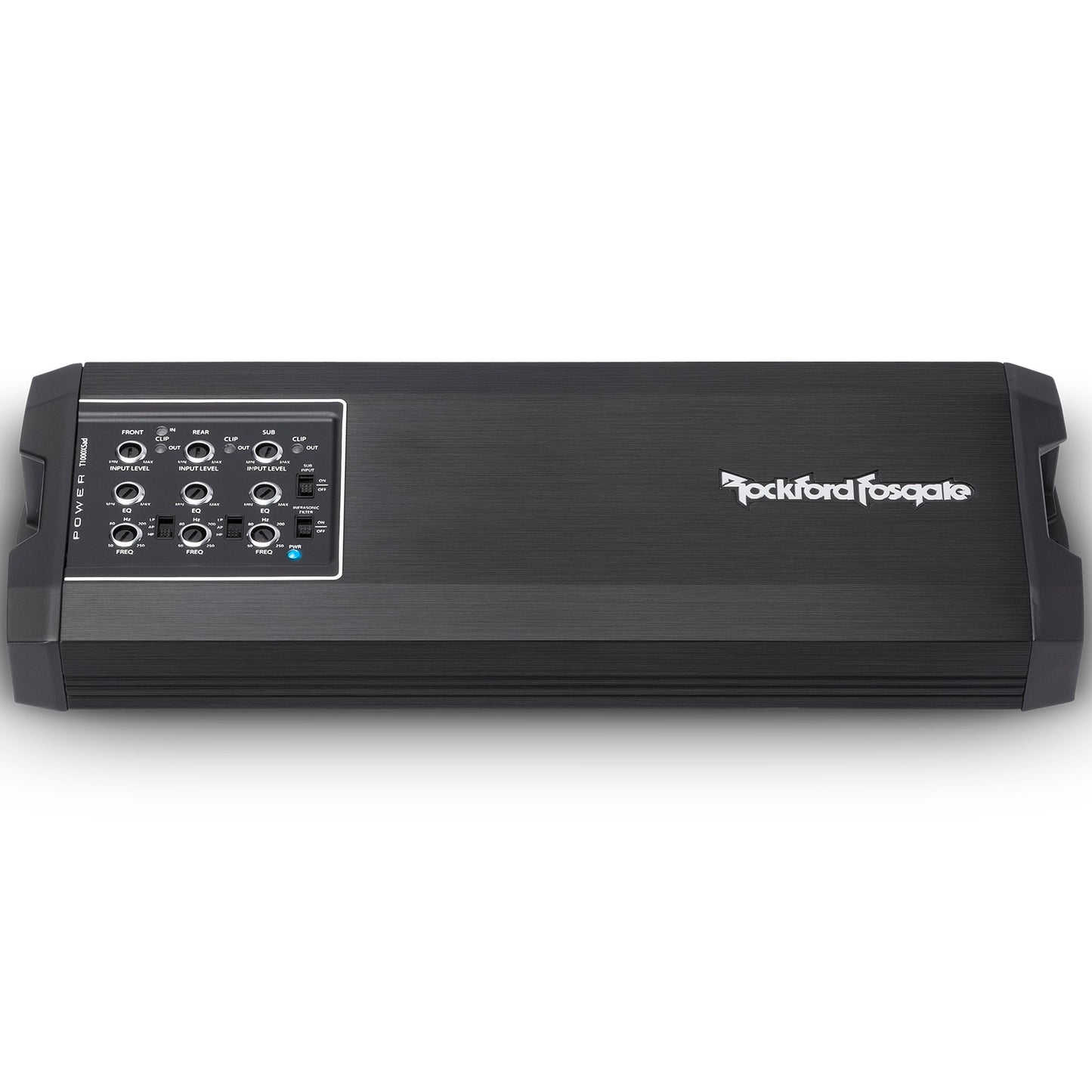

• Top mounted controls
• Dual fan cooled
• Real time thermal sensing with Rollback technology
• Dual extruded heat sinks
• All other normal Rockford protection schemes
• CEA-2006 and CE compliant
• Discrete surface mount technology
• 2-Year Warranty

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Class AD

This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

3-Stage Airflow

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

CEA-2006 Compliant	CEA-2006 Power Rating 100W x 4 + 400W x 1 @ 4? ?1.0% THD+N
Number of Channels	5
Total Power (Sum of Rated Power)	1000 Watts
Rated Power (RMS Continuous Power)	100 Watts x 4 + 400 Watts x 1 @ 4? 100 Watts x 4 + 600 Watts x 1 @ 2? N/A + 600 Watts x 1 @ 1? 200 Watts x 2 @ 4? Bridged + N/A
Dynamic Power (PVC/PowerCube�)	138 Watts x 4 + 487 Watts x 1 @ 4? 118 Watts x 4 + 748 Watts x 1 @ 2? N/A + 663 Watts x 1 @ 1? 225 Watts x 2 @ 4? Bridged + N/A
Bridgeable	Yes Front Terminals: Left (+) Right (-) Rear Terminals: Left (+) Right (-)
