Description

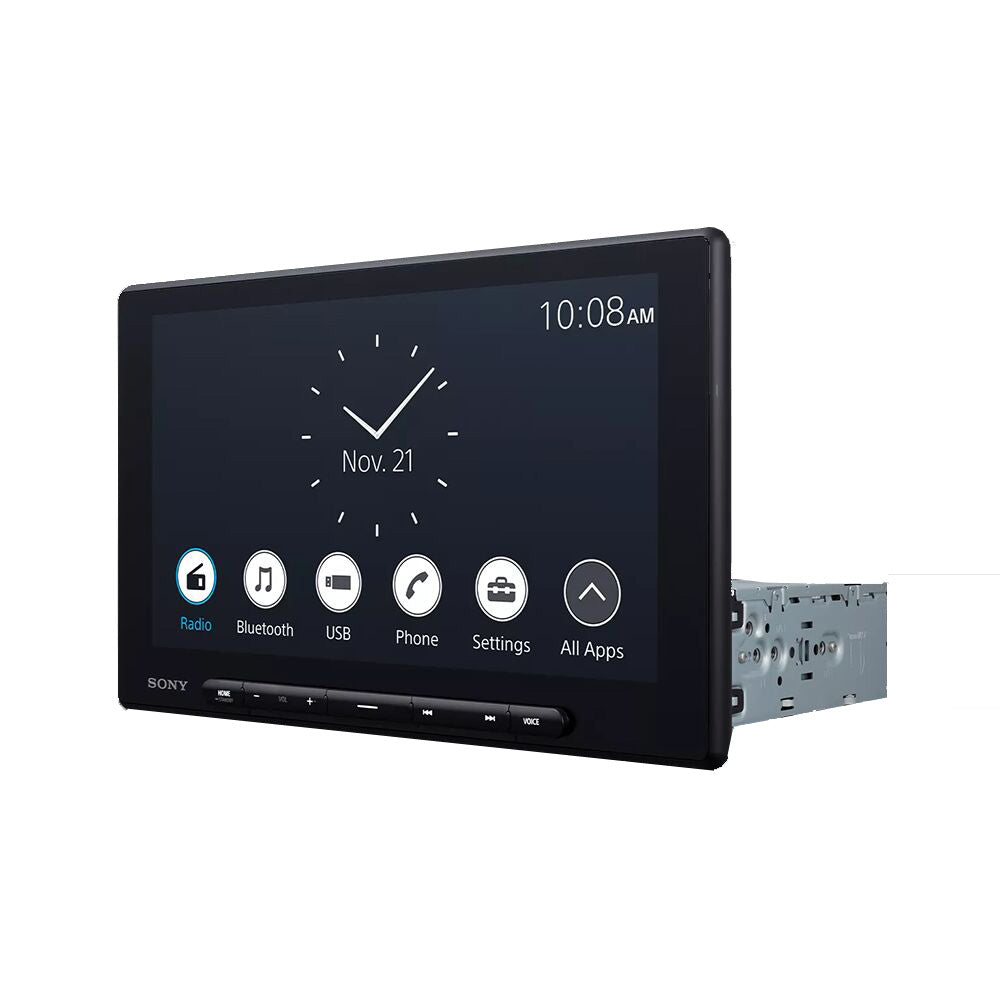

Sony XAV-AX8500 10.1" Digital Multimedia Receiver
Elevate your car audio with the Sony XAV-AX8500, a 10.1-inch digital multimedia receiver designed for exceptional in-car entertainment. Featuring a capacitive HD touchscreen with a tilt and swivel mechanism, wireless Apple CarPlay, wireless Android Auto, and HDMI connectivity, this head unit delivers vibrant visuals and high-quality audio, ideal for modern car audio systems.
Key Features of the Sony XAV-AX8500
- 10.1-inch Capacitive HD Touchscreen: Offers a gapless LCD panel with 1280x720 resolution and ±15-degree tilt/swivel adjustment for optimal viewing.
- Hi-Res Audio with LDAC: Supports wireless streaming at 96 kHz / 24-bit with bitrates up to 990 kbps for superior sound quality.
- Wireless Apple CarPlay and Android Auto: Enables hands-free smartphone integration for navigation, calls, and music.
- 14-Band Equalizer: Provides advanced sound customization with digital time alignment and three-zone crossover.
- HDMI Input: Allows connection to external audio-visual devices or smartphones for parked entertainment.
- Pivotable screen: pivot the screen from left to right. Allow the screen to face you.
Specifications Table
|
Specification |
Details |
|---|---|
|
Display Size |
10.1 inches (25.7 cm) |
|
Display Type |
Capacitive HD Touchscreen (1280x720 resolution) |
|
Audio Output (RMS) |
|
|
Power Handling (Peak) |
55W x 4 |
|
Sensitivity |
Not specified |
|
Frequency Response |
5 Hz - 40 kHz ±1 dB |
|
Preout Voltage |
5V (Front, Rear, Subwoofer, 6-channel) |
|
Impedance |
Not specified |
|
Operating Voltage |
11-16 VDC |
|
Maximum Current Consumption |
Not specified |
|
Bluetooth Version |
4.2 (SBC, AAC, LDAC codecs) |
|
USB Ports |
USB-C (Rear) |
|
HDMI Input |
Yes |
|
DAB+ Tuner |
Not specified |
|
Dimensions |
Single-DIN chassis with floating 10.1" display |
|
Weight |
Not specified |
|
Warranty |
3 Years |
